SELECT A DIAGRAM

10 - Door Lock


11 - Large Convection Fan

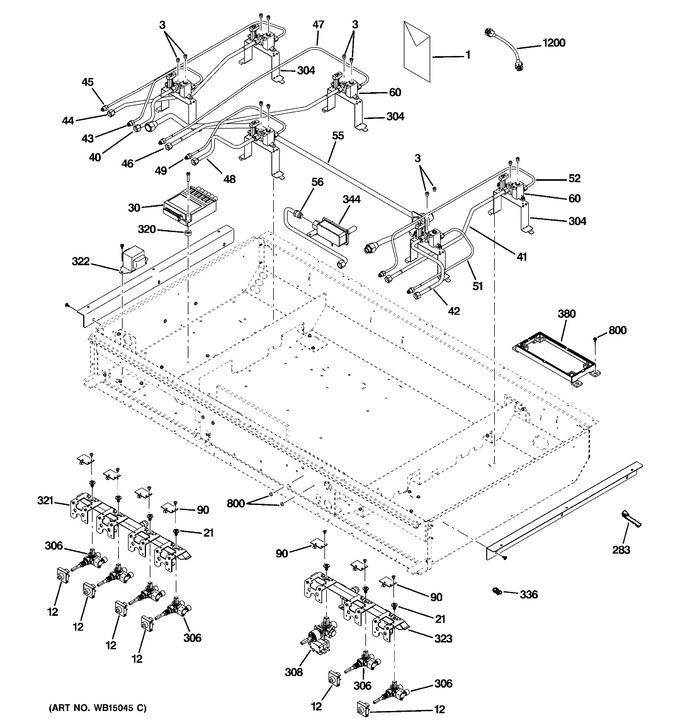

1 - Gas & Burner Parts


2 - Small Convection Fan


3 - Grill Assembly


4 - Control Panel


5 - Cooktop


6 - Body Parts


7 - Oven Cavity Parts


8 - Large Door Assembly


9 - Small Door Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB28K10639		Carrier Orifice Asm		Appelez-nous	-
1	31-10694		Pm Install Anti-tip Brkt		Appelez-nous	-
1	31-10695		Pm Attention Installer		Appelez-nous	-
1	31-10698-1		Instruction Sheet		Appelez-nous	-
1	31-10755		Pm Install Instructions		Appelez-nous	-
1	31-10766		Pm Conversion Instr		Appelez-nous	-
1	31-14931		Pm Mini Manual 48		Appelez-nous	-
1	49-85180		Pm Owners Manual		Appelez-nous	-
1	WG02A00015		Cleaner-ss   (Replaces: WB02T10111)				$ 23.22
1	WG02A00297		Lubricant Cleaner   (Replaces: WB02T10303)				$ 77.35
3	WB28K10657		Orifice Spud Broil		Appelez-nous	-
3	WB28K10659		Orifice Spud Broil		Appelez-nous	-
3	WS01F01437		Orifice Spud Lp Rf Main   (Replaces: WB28T10117)				$ 4.17
3	WS01F01438		Orifice Spud Lp Rf Simm   (Replaces: WB28T10118)			Immediately	$ 4.17
3	WG02F01183		Orifice Spud (ng Simmer)   (Replaces: WB28T10159)			Immediately	$ 15.88
3	WB28K10655		Spud Orifice		Appelez-nous	-
3	WB28K10532		Spud Orifice Grill		Appelez-nous	-
3	WG02F01190		Orifice Spud(ng Main)   (Replaces: WB28T10155)				$ 15.88
3	WB28K10531		Spud Orifice Griddle		Appelez-nous	-
3	WB28K10656		Orifice Spud Broil		Appelez-nous	-
12	WB24K10089		Harness Burner Box		Appelez-nous	-
21	WB01K10067		Scr 8 Hd 1/4 - 20		Appelez-nous	-
30	WB13K10038		Module Spark 6+0		Appelez-nous	-
30	WB13K10031		Module Spark		Appelez-nous	-
40	WB28K10518		Tube And Nut Asm		Appelez-nous	-
41	WB28K10493		Tube And Nut Asm		Appelez-nous	-
42	WB28K10494		Tube And Nut Asm		Appelez-nous	-
43	WB28K10522		Tube And Nut Asm		Appelez-nous	-
44	WB28K10517		Tube And Nut Asm		Appelez-nous	-
45	WB28K10521		Tube And Nut Asm		Appelez-nous	-
46	WB28K10519		Tube And Nut Asm		Appelez-nous	-
47	WB28K10524		Tube And Nut Asm		Appelez-nous	-
48	WB28K10520		Tube And Nut Asm		Appelez-nous	-
49	WB28K10523		Tube And Nut Asm		Appelez-nous	-
51	WB28K10497		Tube And Nut Asm		Appelez-nous	-
52	WB28K10498		Tube And Nut Asm		Appelez-nous	-
55	WB28K10525		Tee Swaged Asm		Appelez-nous	-
56	WB28K10528		Tube Grill And Nut Asm		Appelez-nous	-
60	WB28T10114		Injet Burner 18k		Appelez-nous	-
90	WS01F01723		Led Asm   (Replaces: WB25K10012)				$ 97.21
283	WB2K38		Clip Wire		Appelez-nous	-
283	WS01A01082		Clip Cable   (Replaces: WB2K31)				$ 4.20
304	WB02K10192		Bracket Injet		Appelez-nous	-
306	WB21K10151		Valve Dual		Appelez-nous	-
308	WB21K10134		Switch Valve Asm		Appelez-nous	-
320	WB1K10		Grommet Handle		Appelez-nous	-
321	WB28K10526		Pipe Manifold Asm Lf		Appelez-nous	-
322	WS01F02728		Transformer   (Replaces: WB27K10298)				$ 188.64
323	WB28K10527		Pipe Manifold Asm Rt		Appelez-nous	-
336	WB21K10156		Regulator Oven		Appelez-nous	-
344	WB19K10037		Valve Safety		Appelez-nous	-
380	WB02K10296		Bracket Power Supply		Appelez-nous	-
800	WB01K10042		Scr 8-18 Ab Ihw 3/8 Sn		Appelez-nous	-
1200	WB18K10047		Harness Hv		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
