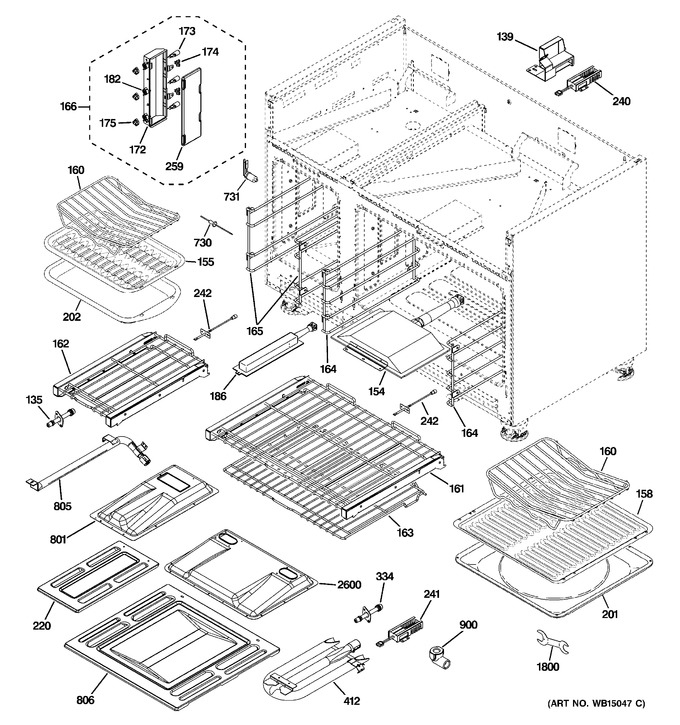

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 135 | WB02K10222 | Clip Window |
|
- | |||||
| 139 | WB02K10299 | Bracket Glowbar |
|
- | |||||
| 139 | WB02K10300 | Bracket Glowbar |
|
- | |||||
| 154 | WB28K10653 | Burner Broil |
|
- | |||||
| 155 | WB49K10020 | Grid Pan Broil |
|
- | |||||
| 158 | WB49K10017 | Rack Broiler Pan |
|
- | |||||
| 160 | WB48K10020 | Rack Convection Roast |
|
- | |||||
| 161 | WB48K10027 | Rack Oven Slide Asm |
|
- | |||||
| 162 | WB48K10025 | Rack Oven Slide Asm |
|
- | |||||
| 163 | WB48K10024 | Oven Rack |
|
- | |||||
| 164 | WB02K10196 | Guide Oven Rack |
|
- | |||||
| 165 | WB02K10197 | Guide Oven Rack |
|
- | |||||
| 166 | WB08K10016 | Lamp Halogen Asm |
|
- | |||||
| 186 | WB28K10654 | Burner Broil |
|
- | |||||
| 201 | WB49K10018 | Pan Broiler |
|
- | |||||
| 202 | WB04K10031 | Gasket Frame Front |
|
- | |||||
| 220 | WB35K10198 | Oven Bottom |
|
- | |||||
| 240 | WS01F07248 | Igniter Glowbar Grdle (Replaces: WB13K10020) |
|
Immediately | $ 108.10 | ||||
| 241 | WS01F07251 | Igniter Glowbar (Replaces: WB13K10040) |
|
Immediately | $ 222.39 | ||||
| 242 | WB21T10020 | Sensor Asm |
|
- | |||||
| 242 | WS01F02431 | Sensor Asm (Replaces: WB21T10007) |
|
Immediately | $ 30.20 | ||||
| 242 | WB21T10019 | Sensor Asm |
|
- | |||||
| 334 | WB02K10309 | Elbow Bake Orifice |
|
- | |||||
| 412 | WB28K10637 | Burner Griddle |
|
- | |||||
| 730 | WS01F02632 | Probe Thermistor (Replaces: WB20K10030) |
|
Immediately | $ 93.58 | ||||
| 731 | WS01F02316 | Probe Receptacle (Replaces: WB20K10032) |
|
$ 135.32 | |||||
| 801 | WB53K10038 | Oven Top |
|
- | |||||
| 805 | WB28K10644 | Burner Bake Asm |
|
- | |||||
| 806 | WS01L06141 | Oven Bottom (Replaces: WB35K10196) |
|
$ 87.41 | |||||
| 900 | WB02K10306 | Elbow Orifice Broil |
|
- | |||||
| 1800 | WS01A00252 | Wrench (Replaces: WB02K10265) |
|
$ 14.92 | |||||
| 2600 | WB53K10037 | Oven Top |
|
- |
