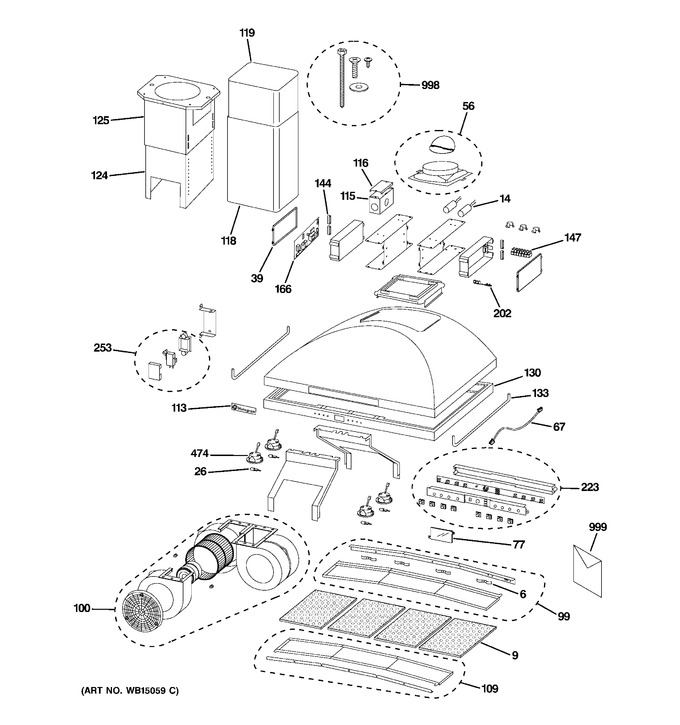

SELECT A DIAGRAM

1 - Range Hood


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	WB09X10029		Spring		Appelez-nous	-
9	WB02X10888		Grease Filter		Appelez-nous	-
14	WB17X10035		Capacitors With 4 Wires		Appelez-nous	-
26	WG02F05223		Bulb   (Replaces: WB25X10020)				$ 132.61
39	WG02F02052		Cover   (Replaces: WB02X10889)				$ 70.75
56	WB02X11515		Damper Transition Assy		Appelez-nous	-
67	WB18X10487		Ribbon Cable With Toroid		Appelez-nous	-
77	WB02X10801		Plexiglas		Appelez-nous	-
99	WB02X11527		Grease Filter Rear Brack		Appelez-nous	-
100	WB26X10259		Blower Assembly		Appelez-nous	-
109	WB02X11528		Grease Filter Front Brac		Appelez-nous	-
113	WB02X11489		Badge		Appelez-nous	-
115	WB02X11490		Junction Box		Appelez-nous	-
116	WB59X10006		Junction Box Cover		Appelez-nous	-
118	WB38X10164		Btm Duct Cover For Vent		Appelez-nous	-
119	WB38X10165		Uppr Duct Cover For Vent		Appelez-nous	-
124	WB38X10162		Bottom Telescopic Skelet		Appelez-nous	-
125	WB38X10163		Upper Telescopic Skeleto		Appelez-nous	-
130	WB07X11237		Front Panel		Appelez-nous	-
133	WB02X10892		Cutlery Hanger, Accessor		Appelez-nous	-
144	WB02X10398		Strain Relief		Appelez-nous	-
147	WB02X10893		Junction Clamp		Appelez-nous	-
166	WB27X11076		Main Control Board		Appelez-nous	-
202	WB02X10401		Wire Guide		Appelez-nous	-
223	WB03X10335		Switch Box Assembly		Appelez-nous	-
253	WB24X10192		Microswitch Assembly		Appelez-nous	-
474	WG02F02726		Halogen Lamp Assy   (Replaces: WB08X10061)				$ 190.39
998	WB01X10204		Hardware Pack		Appelez-nous	-
999	49-80612		Use & Care Manual		Appelez-nous	-
999	31-14899		Instructions Install		Appelez-nous	-
999	31-14901		Mini Manual		Appelez-nous	-
999	49-80159		Installation Template		Appelez-nous	-
	WG02F04029		Blower Assembly				$ 798.80
	WG02L00344		Filter Monogram				$ 576.77

    View Diagram in Separate Window       Print Part List
