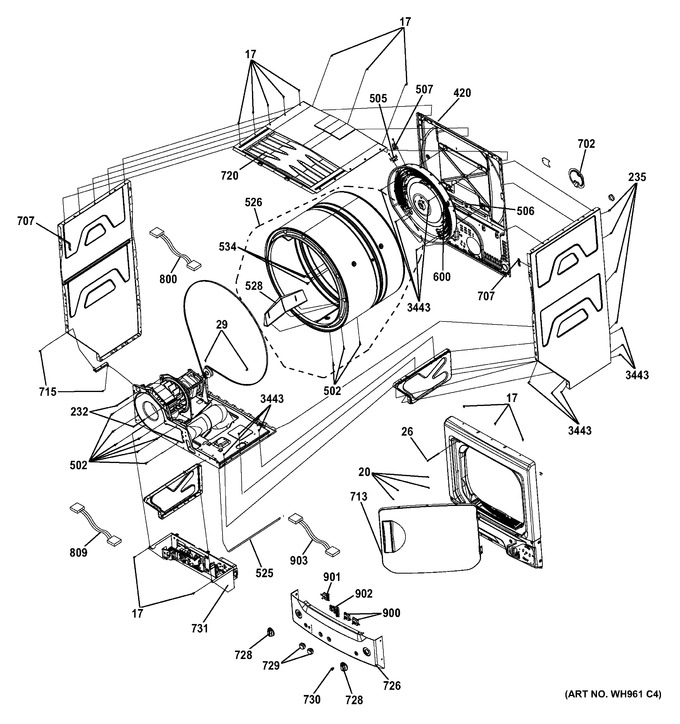

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
17	WW01A00097		Screw   (Replaces: WH2X1217)				$ 3.57
20	WE2M302		Screw		Appelez-nous	-
26	WE2M304		Scr 8-18 Ab Ovq1 2 S Zn		Appelez-nous	-
29	WB01K10042		Scr 8-18 Ab Ihw 3/8 Sn		Appelez-nous	-
232	WW02A00032		Screw   (Replaces: WE2M202)				$ 3.57
235	WE2X263		Scr		Appelez-nous	-
502	WW02A00031		Screw # 10   (Replaces: WE2M174)			Immediately	$ 3.57
505	WG04F03775		Thermostat Bias Ctr Inlt   (Replaces: WE4M181)			Immediately	$ 23.61
506	WG04F02270		Thermostat Hi-limit   (Replaces: WE4M137)			Immediately	$ 17.14
507	WE4M528		Safety Left T'stat 24" E		Appelez-nous	-
525	WE1M999		Gasket Exhaust		Appelez-nous	-
526	WW01F01170		Drum Asm 27"   (Replaces: WE21M41)				$ 141.61
528	WE21M39		Baffle		Appelez-nous	-
534	WW01A00456		Screw #10   (Replaces: WE2M163)				$ 3.57
600	WR01F02479		Heater And Housing Asm   (Replaces: WE11M62)			Immediately	$ 212.16
702	WE1M1004		Cover Exhaust		Appelez-nous	-
707	WE2M301		Clip Front Panel		Appelez-nous	-
713	WE10M151		Door Asm		Appelez-nous	-
715	WD2M101		Scr		Appelez-nous	-
720	WE20M173		Panel Top 27"		Appelez-nous	-
726	WE19M99		Panel Ctrl & Heat Tr Asm		Appelez-nous	-
728	WW03L00040		Knob Control Asm   (Replaces: WE4M522)				$ 57.10
729	WE4M523		Knob Rotatory Asm		Appelez-nous	-
730	WW03F00021		Button And Clip Asm   (Replaces: WE4M524)				$ 10.01
731	WE19M1700		Enclosure Board		Appelez-nous	-
800	WW03F00110		Harness Main Asm   (Replaces: WE26M367)				$ 145.62
809	WW03F00013		Harness Ui Asm   (Replaces: WE26M362)				$ 54.49
900	WW01F00338		Switch Selector   (Replaces: WH12X10509)				$ 9.20
901	WW03F00047		Switch Selector   (Replaces: WH12X10510)			Immediately	$ 11.34
902	WR01L06132		Button Selector   (Replaces: WH01X10591)				$ 32.97
903	WH19X10081		Harness Selector		Appelez-nous	-
3443	WW01A00521		Screw   (Replaces: WE1M280)				$ 3.57
