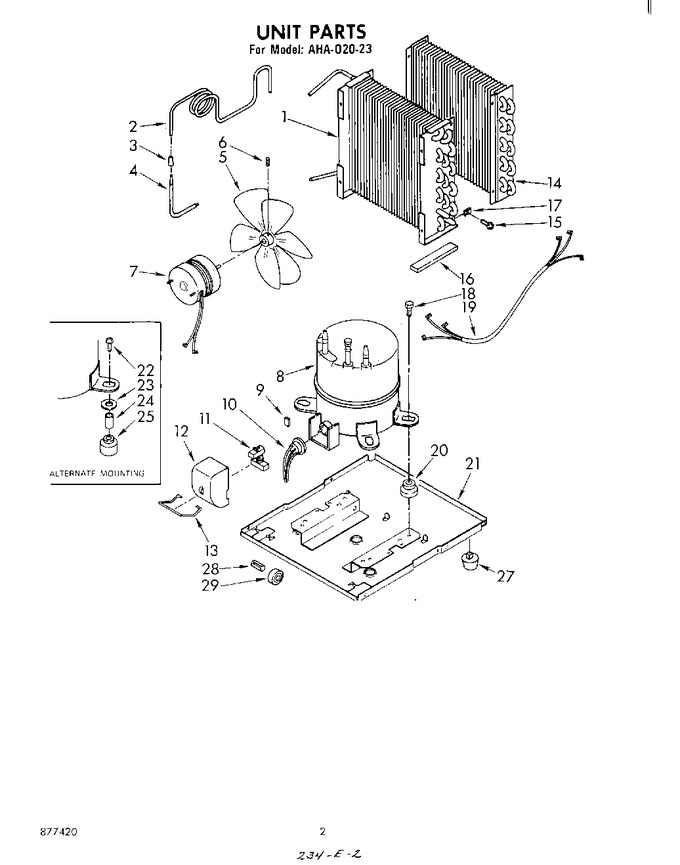

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	949921		Condenser		Appelez-nous	-
2	949140		Tube, Restrictor		Appelez-nous	-
3	474013		Strainer, Outlet Tube		Appelez-nous	-
4	949896		Tube, Outlet (includes Strainer, Part No. 49599)		Appelez-nous	-
5	948756		Blade, Fan (includes Setscrew, Part No. 488035)		Appelez-nous	-
6	488035		Setscrew, 1/4 X 5/16		Appelez-nous	-
7	998806		Motor, Fan		Appelez-nous	-
8	484390		Compressor		Appelez-nous	-
9	547272		Bumper, Relay		Appelez-nous	-
10	998787		Overload		Appelez-nous	-
11	4318083		Relay, Start   (Replaces: 548338)				$ 123.05
12	549945		Case, Relay		Appelez-nous	-
13	531318		Spring, Relay Case		Appelez-nous	-
14	996604		Evaporator		Appelez-nous	-
15	488624		Screw, 8 X 3/8		Appelez-nous	-
16	998867		Seal		Appelez-nous	-
17	488660		Nut, Speed (4)   (Replaces: 486197)		Appelez-nous	-
18	488400		Screw, 1/4-28 X 1`` (4)		Appelez-nous	-
19	484136		Harness, Wire		Appelez-nous	-
20	531082		Grommet (4)		Appelez-nous	-
21	998720		Base		Appelez-nous	-
22	489027		Xscrew, 1/4-28 X 1-1/4		Appelez-nous	-
23	489030		Xwasher, Cup		Appelez-nous	-
24	858424		Xsleeve		Appelez-nous	-
25	469581		Xgrommet		Appelez-nous	-
27	998725		Glide (2)		Appelez-nous	-
28	489015		Roll Pin (2)		Appelez-nous	-
29	998726		Roller (2)		Appelez-nous	-
