SELECT A DIAGRAM

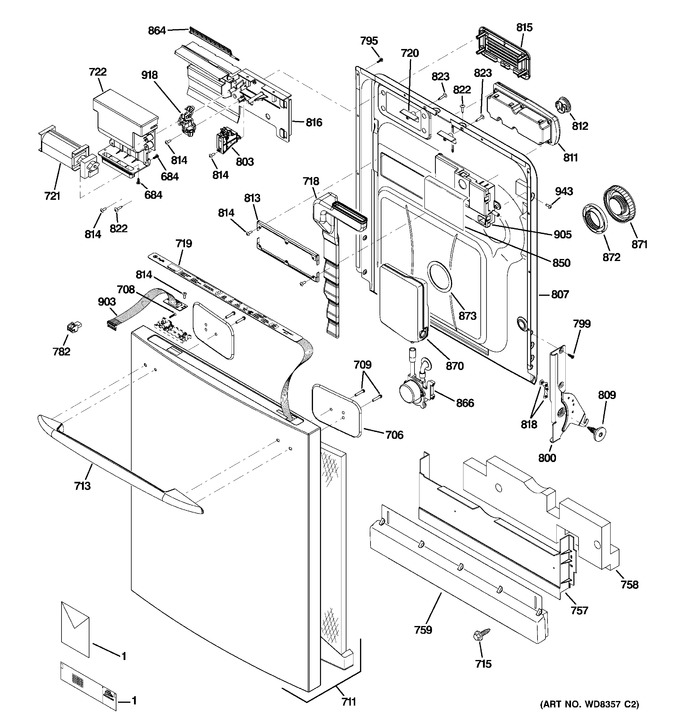

1 - Escutcheon & Door Assembly


2 - Body Parts


3 - Upper Rack Assembly


4 - Lower Rack Assembly


5 - Motor-pump Mechanism


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	49-55025-2		Pm Install Instructions		Appelez-nous	-
1	WD01X10295		Strip Hardness Tester		Appelez-nous	-
1	49-55065-1		Pm Owners Manual		Appelez-nous	-
1	31-30260		Pm Instruction Install		Appelez-nous	-
1	31-30616-2		Pm Sheet Mini Manual		Appelez-nous	-
684	WD02X10166		Scr 8-18 Ab Hw 1/2 Ss		Appelez-nous	-
706	WD12X10283		Bracket Door Handle		Appelez-nous	-
708	WD02X10115		Scr 6-19 Pl Flp 3/4 S		Appelez-nous	-
709	WD01X10238		Scr 10-24 Unc Rnp 1 Z Sn		Appelez-nous	-
711	WD34X11579		Panel Asm Outer Ss		Appelez-nous	-
713	WD13X10056		Handle Asm Ss Door		Appelez-nous	-
715	WD02X10143		Scr 8-18 B 1hw 1/2 Sn Bk		Appelez-nous	-
718	WD12X10190		Conduit Exhaust Asm		Appelez-nous	-
719	WG02F02990		Keypad Asm   (Replaces: WD34X11580)				$ 245.74
720	WD01X10236		Hanger Door		Appelez-nous	-
721	WG04F03674		Blower Dishwasher   (Replaces: WD26X10019)				$ 183.41
722	WG04F04688		Inlet Transition Piece   (Replaces: WD12X10161)				$ 57.27
757	WD27X10250		Kit Toekick Asm		Appelez-nous	-
758	WD01X10421		Foam Brace		Appelez-nous	-
759	WG02F04151		Toekick Asm   (Replaces: WD27X10218)				$ 196.01
795	WG03A00188		Scr 8-18 Ab Tsq 5/8 Ss   (Replaces: WR01X10380)				$ 3.97
799	WD02X10149		Scr 10-32 Gxtt Flp.595 S		Appelez-nous	-
800	WG04L01512		Arm Hinge Lh Asm   (Replaces: WD14X10016)				$ 217.35
800	WD14X10021		Arm Hinge Rh Asm		Appelez-nous	-
800	WG04L01512		Arm Hinge Lh Asm   (Replaces: WD14X10046)				$ 217.35
800	WD14X10047		Arm Hinge Rh Asm		Appelez-nous	-
803	WG02F02962		Latch Asm   (Replaces: WD13X10031)				$ 82.11
807	WD31X10088		Door Inner Asm		Appelez-nous	-
809	WG04A01243		Scr 10-32gx Flt25 .615 S   (Replaces: WD02X10084)				$ 3.97
811	WG04F00692		Module Rinse And Cap Asm   (Replaces: WD12X10163)			Immediately	$ 171.12
812	WG04L00093		Cap Rinse Asm   (Replaces: WD12X10122)				$ 39.70
813	WG04A00035		Bracket Detergent Disp   (Replaces: WD01X10207)				$ 6.35
814	WD02X10104		Scr 8-10 Pl Trp 1/2 S		Appelez-nous	-
815	WG04L01582		Cover Vent   (Replaces: WD12X10127)				$ 30.18
816	WD12X10254		Vent Bracket Asm		Appelez-nous	-
818	WG04L01539		Bearing Hinge Arm   (Replaces: WD12X10313)				$ 10.54
822	WG04A00158		Scr 8-18 Ab Tr 7/8s   (Replaces: WD02X10106)				$ 3.97
823	WD2X322		Scr 8-18x7/8 Bt		Appelez-nous	-
850	WD01X10423		Control Shield		Appelez-nous	-
864	WD12X10044		Flapper Vent		Appelez-nous	-
866	WG04L01599		Dispensing Det Asm   (Replaces: WD12X10209)				$ 253.30
870	WG01A00134		Bottle Detergent Asm   (Replaces: WD35X10065)				$ 193.30
871	WG04F01659		Cap Asm   (Replaces: WD12X10236)				$ 109.01
872	WD12X10212		Lock Nut Asm		Appelez-nous	-
873	WG04L01694		Gasket Fill Hole   (Replaces: WD08X10060)				$ 15.88
903	WG04F00678		Module 3 Digit Display   (Replaces: WD21X10255)				$ 77.58
905	WG02F04147		Module Control Asm   (Replaces: WD21X10404)				$ 183.41
918	WG04F01276		Vent Driver Asm   (Replaces: WD21X10172)				$ 69.95
943	WZ05X0219		Screw		Appelez-nous	-
	WG02F03017		Pump Cntr Wgt Asm W/hngr			Immediately	$ 205.08
	WG04A03278		Rack Roller Asm Upper   (Replaces: WG04L03207)				$ 293.24
	WG04L03226		Rack Roller Asm Lower				$ 181.98

    View Diagram in Separate Window       Print Part List
