SELECT A DIAGRAM

10 - Machine Compartment

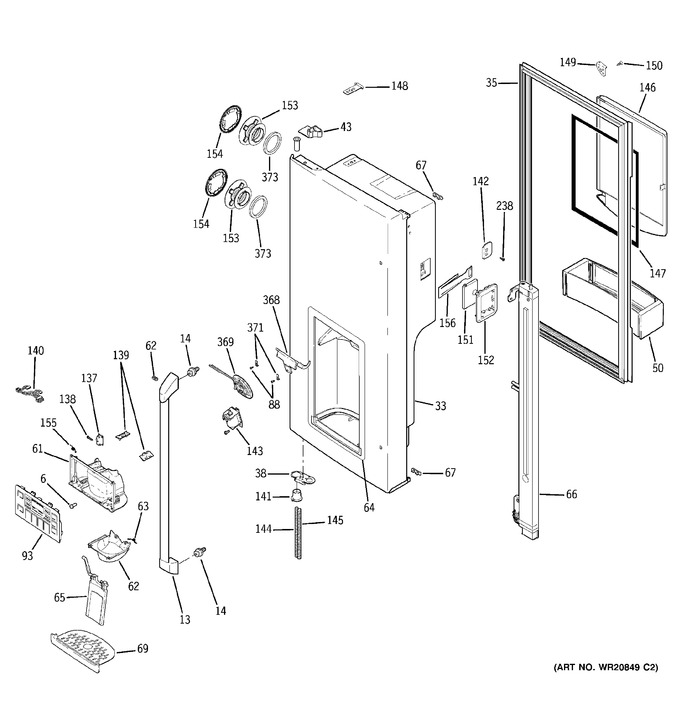

1 - Dispenser Door


2 - Clad Components


3 - Doors & Bins


4 - Freezer Section


5 - Freezer Shelves


6 - Ice Maker & Dispenser


7 - Fresh Food Section


8 - Fresh Food Shelves


9 - Case Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	WR01A01034		Screw 8-10 Pl Pnp 1/2 S   (Replaces: WR01X10221)				$ 4.20
13	WR12X10983		Handle Asm Commercial		Appelez-nous	-
14	WR01A00255		Fastener Handle Ss   (Replaces: WR02X12028)			Immediately	$ 15.88
33	WR01A00751		Service Kit I&w Door   (Replaces: WR78X12822)				$ 378.17
35	WR01L02133		Gasket French With Flap   (Replaces: WR14X10237)			Immediately	$ 111.81
38	WR02X13521		Stop Door Bm		Appelez-nous	-
43	WR02X13520		Cam Ff Closure Lh		Appelez-nous	-
50	WR17X12979		Module Shelf Asm Ff		Appelez-nous	-
61	WR17X12771		Housing Shield Disp		Appelez-nous	-
62	WR01L02041		Funnel Ice Dispenser   (Replaces: WR17X12983)				$ 18.17
63	WR02X13485		Spring Torsion		Appelez-nous	-
64	WR38X10457		Trim Asm Cafe		Appelez-nous	-
65	WR17X13013		Paddle Asm		Appelez-nous	-
66	WR01A00025		Articulation Mullion Asm   (Replaces: WR17X13009)				$ 191.94
67	WR02X12469		Bumper French Door		Appelez-nous	-
69	WR01L02251		Grille Recess   (Replaces: WR17X12324)				$ 13.97
88	WR01X10634		Scr 8-18 Ab 13/4 S Hxw		Appelez-nous	-
93	WR01F01461		Interface Dispenser Asm   (Replaces: WR55X11100)			Immediately	$ 151.55
137	WR01F03637		Switch   (Replaces: WR23X10224)			Immediately	$ 17.47
138	WR02X12257		Scr 4-10 Pl Pnp 3/4 Ss		Appelez-nous	-
139	WR01F00145		Board Asm Disp Lighting   (Replaces: WR55X10899)				$ 15.88
140	WR23X10657		Harness Recess Disp		Appelez-nous	-
141	WR02X13512		Thimble Door Ff		Appelez-nous	-
142	WR02X13487		Clip Mullion Hinge		Appelez-nous	-
143	WR01F01784		Solenoid Asm   (Replaces: WR62X10055)				$ 88.99
144	WR02X13488		Spring Water Conduit		Appelez-nous	-
145	WR02X13489		Spring Water Conduit		Appelez-nous	-
146	WR17X12984		Door Ice Box Asm		Appelez-nous	-
147	WR14X10355		Gasket Icebox Door		Appelez-nous	-
148	WR13X10926		Door Icebox Hinge Top		Appelez-nous	-
149	WR13X10927		Door Icebox Hinge Bottom		Appelez-nous	-
150	WR01X10977		Scr 8-18 Hi-lo Flp 1/2 S		Appelez-nous	-
151	WR02X13490		Latch Button		Appelez-nous	-
152	WR02X13491		Latch Trim		Appelez-nous	-
153	WR14X10356		Gasket Retainer		Appelez-nous	-
154	WR14X10357		Port Gasket		Appelez-nous	-
155	WR02X13492		Spring Duct Door		Appelez-nous	-
156	WR49X10261		Door Latch Kit Bf I&w		Appelez-nous	-
238	WR01X10482		Scr 8-18a Fl Hd 5/8 Ss		Appelez-nous	-
368	WR01L00935		Crank Door Recess   (Replaces: WR17X10706)				$ 12.71
369	WR17X13004		Duct Door Heater Asm		Appelez-nous	-
371	WR2X8818		Retainer Recess Door		Appelez-nous	-
373	WR02X13506		Foam Tape		Appelez-nous	-
	WG03F00154		Ensemble Compresseur				$ 1,117.00
	WG04F11911		Valve   (Replaces: WG03F00685)			Immediately	$ 123.62
	WG03F05844		Switch Light Fz   (Replaces: WG03F00909)			Immediately	$ 65.21
	WG04A00766		Inversuer Asm.			Immediately	$ 554.11
	WG04A01013		Badge Ge Asm				$ 23.82
	WR01A00025		Articulation Mullion Asm				$ 191.94
	WR01A00245		Conduit Verticale De L''ﾃ#vent				$ 14.75
	WS01A00013		Badge Cafe Red				$ 30.04
	WR01A00751		Service Kit I&w Door				$ 378.17
	WR01A00804		Slide Control Vp Lh				$ 14.36
	WR01A00805		Slide Control Vp Rh				$ 18.09
	WR01F00017		Air Tower Asm			Immediately	$ 193.86
	WR01F00241		Board Asm Main Control			Immediately	$ 292.81
	WR01F00976		Harness Motor And Relay				$ 31.06
	WR01F00984		Harness Recess Disp				$ 13.72
	WR01F01461		Interface Dispenser Asm			Immediately	$ 151.55
	WR01F01538		Latch Button				$ 4.85
	WR01F01540		Remate Picaporte				$ 4.85
	WR01F01597		Motor Auger Dc				$ 104.84
	WR01F01730		Sensor Temp Ff			Immediately	$ 16.29
	WR01L00655		Handle Asm Commercial 29"				$ 190.19
	WR01L00763		Cover Eps Bvr Ctr				$ 15.06
	WR01L00903		Cover Top Veg Pan				$ 155.84
	WR01L00906		Cover Top Veg Pan				$ 140.45
	WR01L01444		Door Foam Asm Flat Rh				$ 248.81
	WR01L01723		Door Foam Asm Fz Flat				$ 262.06
	WR01L02031		Frame Pan Meat				$ 93.23
	WR01L02133		Gasket French With Flap			Immediately	$ 111.81
	WR01L02283		Grille Base Cover				$ 66.50
	WR01L02473		Hinge Closure Asm				$ 90.29
	WR01L02545		Ice Bucket Asm				$ 222.81
	WG03F07366		Machine A Glacons, Porte Montee   (Replaces: WR01L02568)			Immediately	$ 244.43
	WR01L02849		Metal Slide Asm				$ 71.36
	WR01L04227		Shelf Asm Tuckaway				$ 93.96
	WR01L04490		Trim Asm Cafe				$ 103.08
	WR01L04625		Conduit Verticale Asm				$ 30.22
	WR01L04627		Vent Cover Kit				$ 518.32
	WR01L06216		Gasket Tower Ff			Immediately	$ 3.97
