01 - Cover Sheet

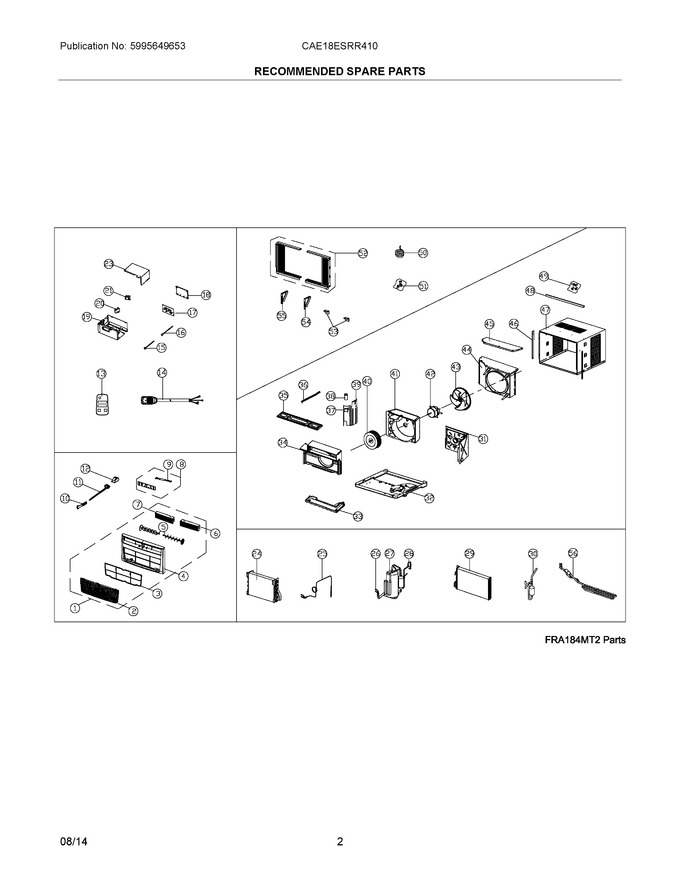

02 - Recommended Spare Parts
03 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304483553 | Front Assembly, Complete Panel |
|
- | |||||
| 2 | 5304476943 | Panel, Front Grille, Tilt-out |
|
- | |||||
| 3 | 5304476944 | Filter, Air |
|
- | |||||
| 4 | 5304483554 | Panel, Frame, Front |
|
- | |||||
| 5 | 5304483555 | Louver, Vertical |
|
- | |||||
| 6 | 5304483556 | Louver, Horizontal, Right |
|
- | |||||
| 7 | 5304483557 | Louver, Horizontal, Left |
|
- | |||||
| 8 | 5304476357 | Pc Board, Display/input |
|
- | |||||
| 9 | 5304482502 | Wire, Connector, Pc Boards |
|
- | |||||
| 10 | 5304476243 | Handle, Vent Control |
|
- | |||||
| 11 | 5304476950 | Door, Vent Control, With Lever |
|
- | |||||
| 12 | 5304529409 | Link, Lever/vent Door, Detente (Replaces: 5304476359) |
|
- | |||||
| 13 | 5304482751 | Remote Control, Transmitter |
|
- | |||||
| 14 | 5304476376 | Power Cord, Electric, 220 V, Lcdi |
|
- | |||||
| 15 | 5304512375 | Sensor, Temperature, Evaporator (Replaces: 5304471383) |
|
$ 33.16 | |||||
| 16 | 5304471276 | Sensor, Temperature, Indoor |
|
$ 33.88 | |||||
| 17 | 5304476360 | Pc Board, Control/power, Main |
|
- | |||||
| 18 | 5304476251 | Holder, Mounting Plate, Control |
|
- | |||||
| 19 | 5304476361 | Control Box |
|
- | |||||
| 20 | 5304521130 | Capacitor, Fan Motor (Replaces: 5304482883) |
|
- | |||||
| 21 | 5304535831 | Transformer (Replaces: 5304471063) |
|
- | |||||
| 23 | 5304476314 | Cover, Control Box |
|
- | |||||
| 24 | 5304482512 | Evaporator, With Cap Tube |
|
- | |||||
| 25 | 5304476378 | Tube, Capillary |
|
- | |||||
| 26 | 5304482513 | Tube, Suction |
|
- | |||||
| 27 | 5304475740 | Compressor |
|
- | |||||
| 28 | 5304476379 | Tube, Discharge |
|
- | |||||
| 29 | 5304476380 | Condenser |
|
- | |||||
| 30 | 5304476322 | Drier-filter |
|
- | |||||
| 31 | 5304472538 | Bulkhead, Partition, Front Right |
|
- | |||||
| 32 | 5304476368 | Base, Unit Chassis |
|
- | |||||
| 33 | 5304472530 | Tray, Drip Pan |
|
- | |||||
| 34 | 5304476369 | Scroll, Blower Housing, Front |
|
- | |||||
| 35 | 5304476326 | Cover, Blower Scroll, Front |
|
- | |||||
| 36 | 5304476327 | Bracket, Connecting |
|
- | |||||
| 37 | 5304471203 | Strap, Capacitor Clamp |
|
- | |||||
| 38 | 5304475736 | Capacitor, Compressor |
|
- | |||||
| 39 | 5304482510 | Bulkhead, Partition, Front/left |
|
- | |||||
| 40 | 5304521140 | Blower Wheel, Centrifugal Fan (Replaces: 5304472407) |
|
- | |||||
| 41 | 5304476372 | Scroll, Blower Housing, Rear |
|
- | |||||
| 42 | 5304529416 | Motor, Fan (Replaces: 5304483059) |
|
- | |||||
| 43 | 5304538708 | Fan Blade, Axial Flow (Replaces: 5304472356) |
|
$ 50.16 | |||||
| 44 | 5304476329 | Shroud, Condenser Fan |
|
- | |||||
| 45 | 5304476330 | Cover, Condenser Fan, Rear |
|
- | |||||
| 46 | 5304476331 | Retainer, Shutter, Cabinet Sides |
|
- | |||||
| 47 | 5304482511 | Cabinet, Wrapper/sleeve |
|
- | |||||
| 48 | 5304476333 | Rail, Shutter Track, Top Angle |
|
- | |||||
| 49 | 5304472546 | Screw Kit, Top Rail Mount |
|
- | |||||
| 50 | 5304472548 | Seal Kit, Foam, Top, Bottom, Sash |
|
- | |||||
| 51 | 5304476266 | Hardware, Mounting, Screws/locks |
|
- | |||||
| 52 | 5304476334 | Window Filler Kit, Slider Panel |
|
- | |||||
| 53 | 5304472360 | Bracket, Sill Angle |
|
- | |||||
| 54 | 5304482508 | Bracket, Mounting, Right Window |
|
- | |||||
| 55 | 5304482509 | Bracket, Mounting, Left Window |
|
- | |||||
| 56 | 5304484939 | Tube, Condensate Evap, Drain Pan |
|
- |
