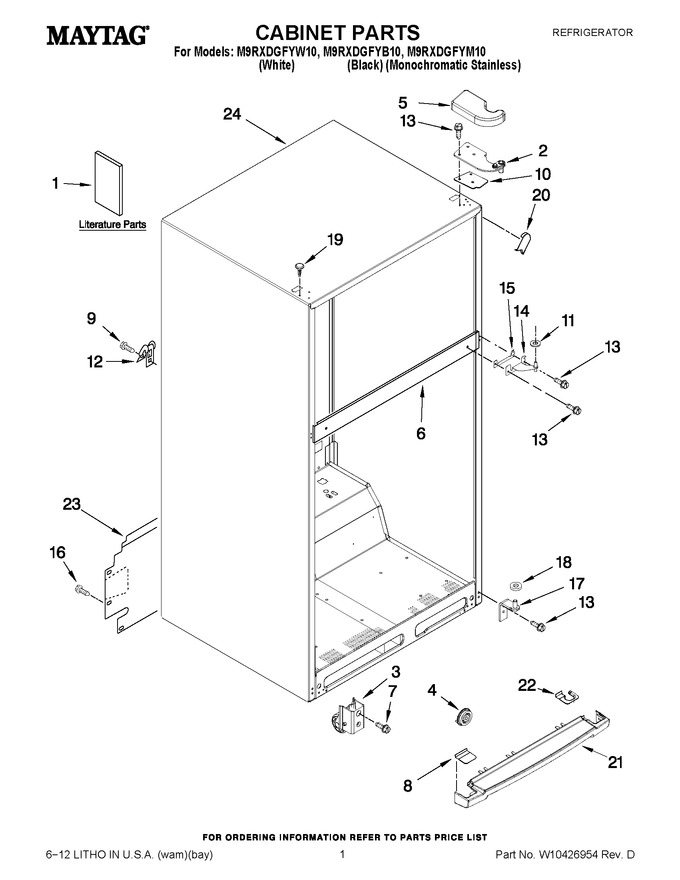

01 - Cabinet Parts


02 - Liner Parts


03 - Shelf Parts


04 - Freezer Door Parts


05 - Refrigerator Door Parts


06 - Unit Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10414768		Service & Wiring Sheet		Appelez-nous	-
1	W10360533		Use & Care Guide		Appelez-nous	-
1	W10422358		Energy Label		Appelez-nous	-
2	WPW10300065		Hinge Assy, Top (right)   (Replaces: W10300065)				$ 13.94
2	WPW10300065		Hinge Assy, Top (left)   (Replaces: W10337503)				$ 13.94
3	W10849386		Roller Assy, Front   (Replaces: W10327136)				$ 114.75
4	W10331226		Drum, Toe Grille				$ 47.42
5	W10353950A		Cover, Hinge (midnight Grey, Ls)   (Replaces: W10353950)				$ 24.38
5	W10353947A		Cover, Hinge (midnight Grey, Rs)   (Replaces: W10353947)				$ 14.28
5	W10331560A		Cover, Hinge (white, Rs)   (Replaces: W10331560)				$ 13.44
5	W10331654		Cover, Hinge (white, Ls)		Appelez-nous	-
5	W10353945A		Cover, Hinge (black, Rs)   (Replaces: W10353945)				$ 15.13
5	W10353948A		Cover, Hinge (black, Ls)   (Replaces: W10353948)				$ 15.13
6	N/P		Rail, Center (not Serviced)		Appelez-nous	-
7	W10850698		Screw 5/16 X 1.44   (Replaces: 3400517)				$ 14.42
8	WPW10339257		Cover, Toe Grille (white)   (Replaces: W10339257)				$ 85.42
8	WPW10353932		Cover, Toe Grille (midnight Grey)   (Replaces: W10353932)				$ 85.50
8	W10353930		Cover, Toe Grille (black)				$ 85.34
9	WP489442		Screw 8-18 X .600   (Replaces: 489442)			Immediately	$ 11.49
10	W10883637		Hinge Shim, Top   (Replaces: W10338247)				$ 15.95
11	WP489467		Washer, Plastic   (Replaces: 489341)			Immediately	$ 11.42
12	549193		Clamp, Cord				$ 14.06
13	WP489497		Screw 12-24 X .70   (Replaces: 489497)			Immediately	$ 29.09
14	WP2254618		Hinge, Center   (Replaces: 2254618)			Immediately	$ 92.02
15	WP2183852		Hinge Shim, Center   (Replaces: 2183852)				$ 11.18
16	WP489464		Screw 8-18 X 1/2   (Replaces: 8281265)			Immediately	$ 8.38
17	WP2254473		Hinge Assy, Bottom   (Replaces: 2254473)				$ 9.28
18	WP487576		Washer, Nylon   (Replaces: 487576)			Immediately	$ 9.88
19	WP2151652		Hole Plug (white)   (Replaces: 2201012)				$ 22.87
19	WP2183998		Hole Plug (black)   (Replaces: 2183998)				$ 19.01
19	WPW10520307		Hole Plug (apollo Grey)   (Replaces: 2254506)			Immediately	$ 7.55
20	W10851579		Corner Filler (apollo Grey)   (Replaces: W10283961)			Immediately	$ 7.55
20	WPW10283959		Corner Filler (white)   (Replaces: W10283959)				$ 8.21
20	W11252732		Corner Filler (black)   (Replaces: W10283960)				$ 13.07
21	W10353936		Grille (white)   (Replaces: W10326386)				$ 142.38
21	W10353938		Grille (midnight Grey)				$ 79.10
21	W10353936		Grille (black)				$ 142.38
22	W10381060		Cover, Toe Grille (hinge Side) (black)				$ 36.12
22	W10381059		Cover, Toe Grille (hinge Side) (white)				$ 87.57
22	W10381064		Cover, Toe Grille (hinge Side) (midnight Grey)				$ 70.38
23	W10636716		Cover, Unit   (Replaces: W10384413)				$ 105.27
24	N/P		Cabinet (not Serviced)		Appelez-nous	-
