Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 13107846S Door, Left (stainless) Appelez-nous -
2 WP3400203 Screw, Set   (Replaces: W10287054) In-Stock Immediately $ 5.04

3 WP67003637 Door, Dairy   (Replaces: 12804701SP) In-Stock Immediately $ 82.67

4 WP67001279 Tray, Dairy   (Replaces: 12369502SP) In-Stock Immediately $ 88.01

5 WPW10119841 Bin, Medium   (Replaces: W10119841) In-Stock Immediately $ 90.23

6 W11311945 Screw   (Replaces: 12990204) Special Order $ 14.72

7 W10290759 Screw, Handle Special Order $ 5.83

8 W10830055 Gasket, Door (apollo Grey)   (Replaces: W10163991) In-Stock Immediately $ 229.10

9 WPW10314517K Handle, Door (stainless)   (Replaces: W10314517) Special Order $ 243.37

10 WP67006113 Mount, Handle   (Replaces: 13001201) In-Stock Immediately $ 12.56

11 W10275942 Waterline, Door In-Stock Immediately $ 120.27

12 WPW10119846 Bin, Gallon   (Replaces: W10119846) In-Stock Immediately $ 81.84

13 WPW10287601 Seal, Ice Chute   (Replaces: 12665101SP) In-Stock Immediately $ 32.76

14 WP12722813AP Mullion, Door (apollo Grey)   (Replaces: 12722813APK) Special Order $ 340.89

15 W10187453 Bucket, Dispenser (upper)   (Replaces: 12977401) Special Order $ 73.08

16 WP12028505AP Closure, Door (apollo Grey)   (Replaces: 12028505AP) In-Stock Immediately $ 61.46

17 W11703060 Stop, Door (apollo Grey)   (Replaces: 12968202AP) Special Order $ 15.46

18 12977501 Bucket, Dispenser (lower) Appelez-nous -
19 12996601 Clip, Bushing Wire (left Door) Special Order $ 10.05

21 WP98165 Screw   (Replaces: 67006473) Special Order $ 8.57

22 WPW10243391 Nameplate (stainless)   (Replaces: W10243391) Special Order $ 58.31

23 13107845S Door, Right (stainless) Appelez-nous -
24 W11510593 Gripper-medium   (Replaces: W10184031) In-Stock Immediately $ 17.43

25 W11510594 Gripper-gallon   (Replaces: W10184032) Special Order $ 20.01

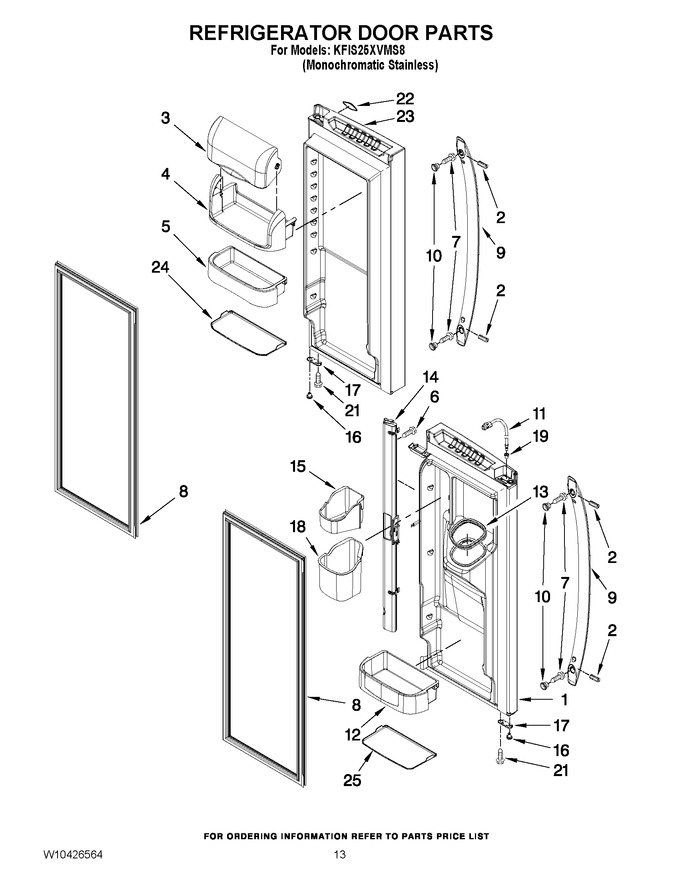

    View Diagram in Separate Window     Print Icon   Print Part List
