Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WPW10283361 Nut, Pulley   (Replaces: 8533999) In-Stock Immediately $ 79.11

2 WP8540088C Pulley   (Replaces: 8540088C) Special Order $ 196.32

3 WPW10260319 Belt, Drive   (Replaces: W10260319) In-Stock Immediately $ 68.92

4 W11028021 Screw, Rear Counterweight   (Replaces: W10246531) Special Order $ 7.92

5 W10142720 Pipe, Ventilation Special Order $ 105.17

6 8540010 Clamp, Vent Hose Special Order $ 11.18

7 W11398765 Hose, Exhaust   (Replaces: 8540019) Special Order $ 30.18

8 W11239041 Tub, Rear (includes Items 10 & 22)   (Replaces: W10200752) Special Order $ 763.49

9 WPW10200747 Counterweight, Rear   (Replaces: W10200747) Special Order $ 161.12

10 WPW10111158 Gasket, Tub   (Replaces: 8540090) In-Stock Immediately $ 99.13

11 W10205253 Basket, Complete Special Order $ 459.32

12 WPW10112972 Baffle, Tub   (Replaces: W10112972) In-Stock Immediately $ 99.92

13 W11685857 Bolt, Counterweight   (Replaces: W10094780) Special Order $ 14.10

14 WPW10259288 Bolt Assembly, Counterweight Center Hole   (Replaces: W10259288) Special Order $ 13.31

15 WPW10223198 Counterweight, Front   (Replaces: W10223198) In-Stock Immediately $ 178.91

16 280159 Spring, Suspension (set Of 2)   (Replaces: W10010360) Special Order $ 106.76

17 W10822553 Shock Absorber   (Replaces: W10015830) In-Stock Immediately $ 83.35

18 WP8540382 Screw   (Replaces: 8540382) Special Order $ 6.95

19 W10202464 Crosspiece Asm Appelez-nous -
20 WP8540092 Clamp, Tub   (Replaces: 8540092) Special Order $ 7.59

21 W10305749 Tub, Front (includes Items 10, 22, 25 & 26)   (Replaces: W10289874) Special Order $ 236.60

22 WP8182512 Nut, Push-in   (Replaces: 8540072) In-Stock Immediately $ 6.95

23 WPW10467289 Negative Thermistor Control   (Replaces: W10176659) In-Stock Immediately $ 47.80

24 WPW10426377 Element, Heating   (Replaces: W10253993) Special Order $ 303.81

25 8540322 Bracket, Heating Element Appelez-nous -
26 W11230114 Screw   (Replaces: 8540880) Special Order $ 13.28


    View Diagram in Separate Window     Print Icon   Print Part List

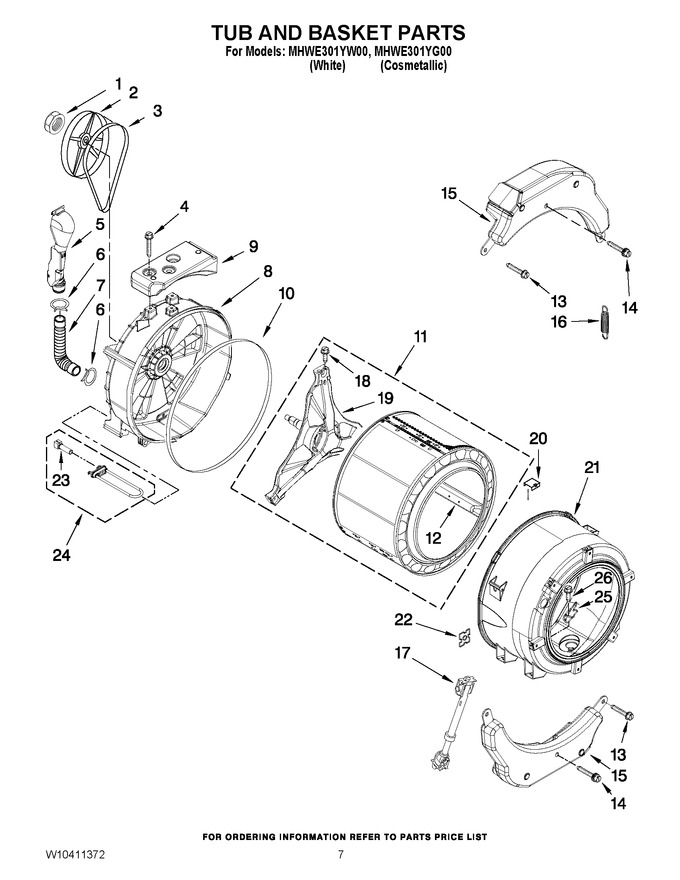

Diagram for MHWE301YG00
