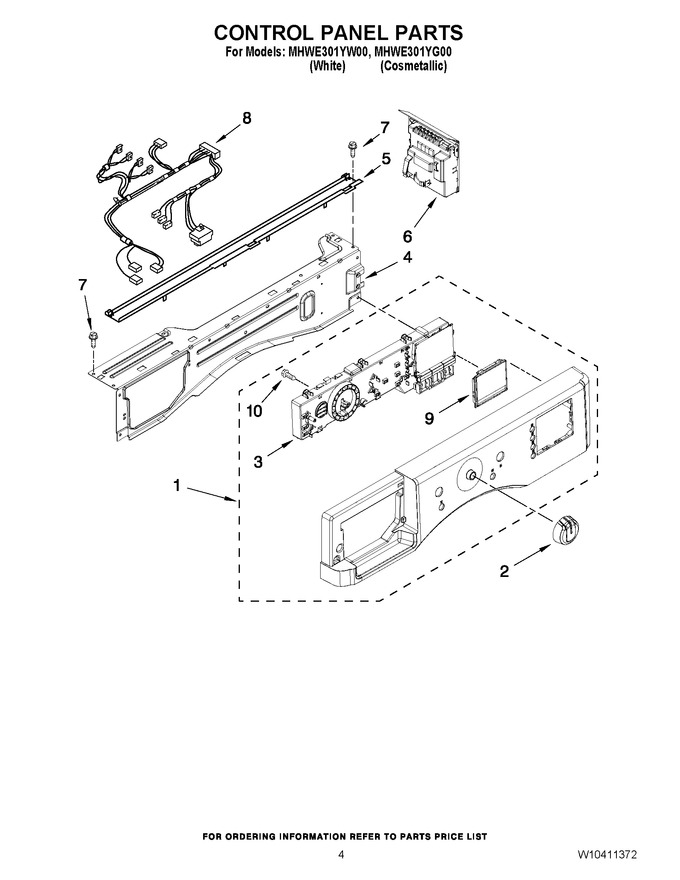

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10360640 | Console (white) |
|
$ 547.19 | |||||
| 1 | WPW10372883 | Console (cosmetallic) (Replaces: W10372883) |
|
$ 805.22 | |||||
| 2 | WPW10251384 | Knob, Control (Replaces: W10251384) |
|
$ 61.50 | |||||
| 3 | WPW10362705 | User Interface (Replaces: W10362705) |
|
$ 291.18 | |||||
| 4 | W10846488 | Brace, Top Front (Replaces: W10240776) |
|
$ 85.04 | |||||
| 5 | 8540839 | Channel, Water |
|
$ 27.81 | |||||
| 6 | WPW10525372 | Microcomputer, Machine Control (Replaces: W10373844) |
|
$ 379.51 | |||||
| 7 | WP489442 | Screw, 8-18 X 5/8 (Replaces: W10015090) |
|
Immediately | $ 10.94 | ||||
| 8 | W10323100 | Harness, Main Wiring |
|
$ 345.78 | |||||
| 9 | W10215794 | Window, Display |
|
$ 49.43 | |||||
| 10 | W10006580 | Screw, M3-1.12x12 |
|
- |
