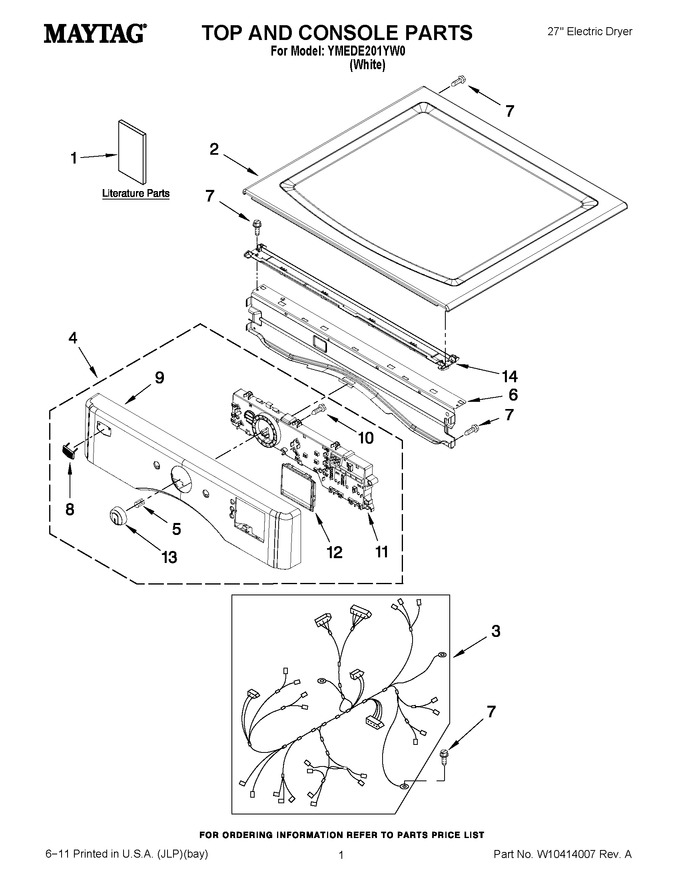

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10385090 | Heater Box |
|
- | |||||
| 1 | W10386307 | Tech Sheet |
|
- | |||||
| 1 | W10385100 | Installation, Instruction |
|
- | |||||
| 2 | WPW10336080 | Top (Replaces: W10336080) |
|
$ 331.99 | |||||
| 3 | W10251444 | Harness, Main |
|
$ 76.79 | |||||
| 4 | W10376631 | Console Panel, Assembly |
|
$ 353.64 | |||||
| 5 | WP8536939 | Spring-clip Knob (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 6 | WP8565237 | Bracket, Console (Replaces: 8565237) |
|
$ 189.77 | |||||
| 7 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 8 | W10732500 | Badge (Replaces: W10316087) |
|
$ 45.43 | |||||
| 9 | W10375888 | Console Panel |
|
- | |||||
| 10 | W10006580 | Screw, M3-12 X 12 |
|
- | |||||
| 11 | W10387236 | User Interface Assembly |
|
$ 309.56 | |||||
| 12 | W10215794 | Window, Console Display |
|
$ 51.90 | |||||
| 13 | WPW10251381 | Knob Assembly (Replaces: W10251381) |
|
$ 58.63 | |||||
| 14 | WPW10266747 | Channel, Water (Replaces: W10266747) |
|
$ 73.96 |
