Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10395349 Energy Guide Appelez-nous -
1 W10195614 Tech Sheet/french Appelez-nous -
1 W10321621 Instructions, Installation Appelez-nous -
1 W10300929 Guide, Use & Care (english/french) Appelez-nous -
1 W10300597 Guide, Use & Care (spanish) Appelez-nous -
1 W10195613 Tech Sheet/english Appelez-nous -
2 W11806608 Arm, Hinge (right)   (Replaces: 8534853) In-Stock Immediately $ 142.24

2 W11806565 Arm, Hinge (left)   (Replaces: 8534854) In-Stock Immediately $ 142.39

3 W10850371 Vapor Barrier Assembly   (Replaces: W10321449) In-Stock Immediately $ 32.88

4 W10354790 Block, Foam Special Order $ 11.38

5 W10827632 Access Panel (white)   (Replaces: W10369026) In-Stock Immediately $ 163.70

5 W10827631 Access Panel (black)   (Replaces: W10369024) In-Stock Immediately $ 195.64

6 W10195533 Panel, Full Front (includes Items 8 & 12) (white) Special Order $ 162.74

6 W10195532 Panel, Full Front (includes Items 8 & 12) (black) Special Order $ 155.07

6 W10195531 Panel, Full Front (includes Items 8 & 12) (stainless) Special Order $ 185.43

7 WPW10503549 Fastener (white)   (Replaces: W10331793) In-Stock Immediately $ 7.77

7 WPW10503548 Fastener (black)   (Replaces: W10331789) In-Stock Immediately $ 30.39

8 W10563099 Pocket, Handle (stainless)   (Replaces: W10195656) Special Order $ 148.79

8 W10195654 Pocket, Handle (white) Special Order $ 99.15

8 W10195653 Pocket, Handle (black) Special Order $ 142.53

9 WP489069 Screw   (Replaces: 304392) In-Stock Immediately $ 8.40

10 W11116870 Bracket, Panel Control   (Replaces: W10194911) Special Order $ 89.95

11 WP3400071 Screw   (Replaces: 3400071) Special Order $ 8.26

12 WPW10243392 Nameplate (black)   (Replaces: W10243392) Special Order $ 73.70

12 WPW10243393 Nameplate (white)   (Replaces: W10243393) Special Order $ 69.98

12 WPW10243391 Nameplate (stainless)   (Replaces: W10243391) Special Order $ 58.31

13 W11126003 Insulation Front Panel   (Replaces: W10315897) In-Stock Immediately $ 65.25

14 W10831329 Insulation, Access Panel   (Replaces: W10073540) In-Stock Immediately $ 43.30

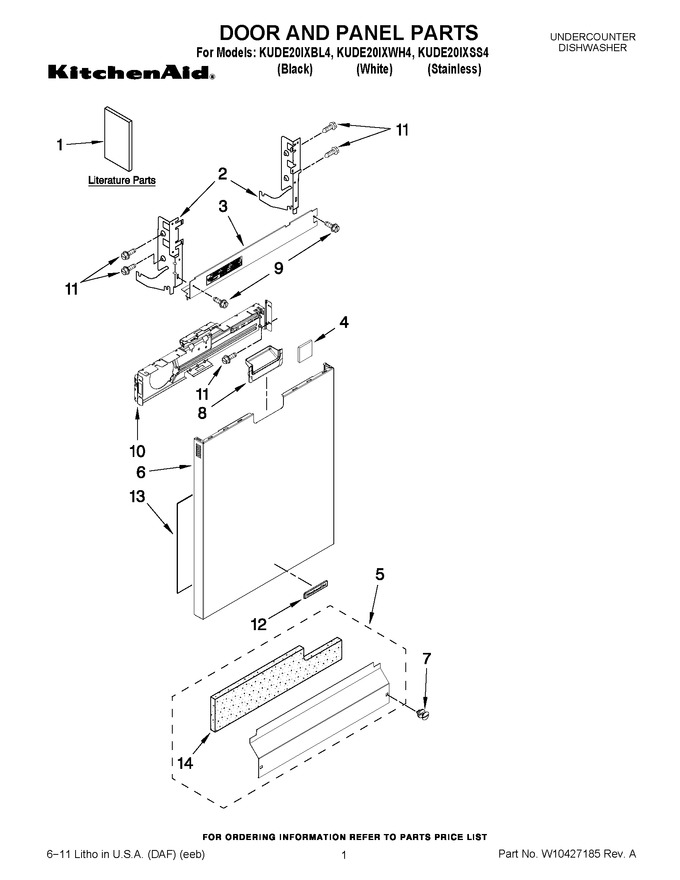

    View Diagram in Separate Window     Print Icon   Print Part List
