SELECT A DIAGRAM
New Model Search:

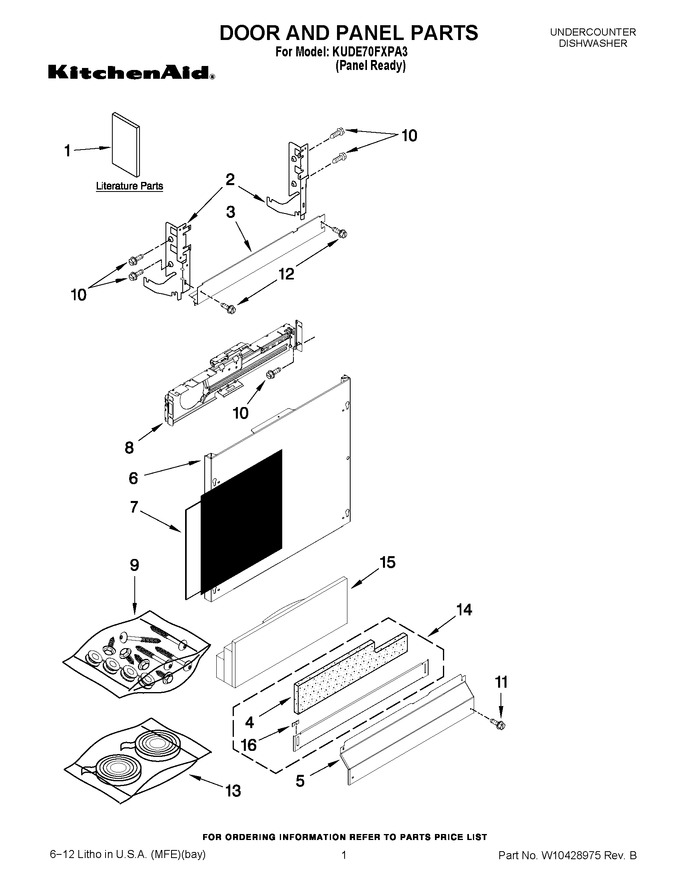

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10195613 | Tech Sheet/english |
|
- | |||||
| 1 | W10321621 | Instructions, Installation |
|
- | |||||
| 1 | W10300929 | Guide, Use & Care (english/french) |
|
- | |||||
| 1 | W10300597 | Guide, Use & Care (spanish) |
|
- | |||||
| 1 | W10195005 | Template 6`` Custom |
|
- | |||||
| 1 | W10490723 | Energy Guide |
|
- | |||||
| 1 | W10195614 | Tech Sheet/french |
|
- | |||||
| 2 | W11806565 | Arm, Hinge (left) (Replaces: 8534854) |
|
Immediately | $ 142.39 | ||||
| 2 | W11806608 | Arm, Hinge (right) (Replaces: 8534853) |
|
Immediately | $ 142.24 | ||||
| 3 | W10850371 | Vapor Barrier Assembly (Replaces: W10321447) |
|
Immediately | $ 32.88 | ||||
| 4 | W10831329 | Insulation, Toe Panel (Replaces: W10385107) |
|
Immediately | $ 43.30 | ||||
| 5 | W11763736 | Access Panel (Replaces: W10195777) |
|
Immediately | $ 42.25 | ||||
| 6 | W11113792 | Panel, Full Front (Replaces: W10292632) |
|
Immediately | $ 373.42 | ||||
| 7 | W10234565 | Insulation Front Panel |
|
$ 69.57 | |||||
| 8 | W11116870 | Bracket, Panel Control (Replaces: W10194911) |
|
$ 89.95 | |||||
| 9 | WPW10637074 | Hardware, Miscellaneous (Replaces: W10195008) |
|
Immediately | $ 75.05 | ||||
| 10 | WP3400071 | Screw (Replaces: 3400071) |
|
$ 8.26 | |||||
| 11 | WP302868 | Screw (Replaces: 302868) |
|
Immediately | $ 8.18 | ||||
| 12 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 8.25 | |||||
| 13 | WPW10366978 | Seal, Panel Ready (Replaces: W10366978) |
|
Immediately | $ 29.80 | ||||
| 14 | W10871196 | Toe Panel (Replaces: 8558252) |
|
$ 174.04 | |||||
| 15 | W10831329 | Insulation, Three Layer (Replaces: W10350437) |
|
Immediately | $ 43.30 | ||||
| 16 | WP8269016 | Clip, Grounding (Replaces: 8269016) |
|
$ 11.21 |
