SELECT A DIAGRAM

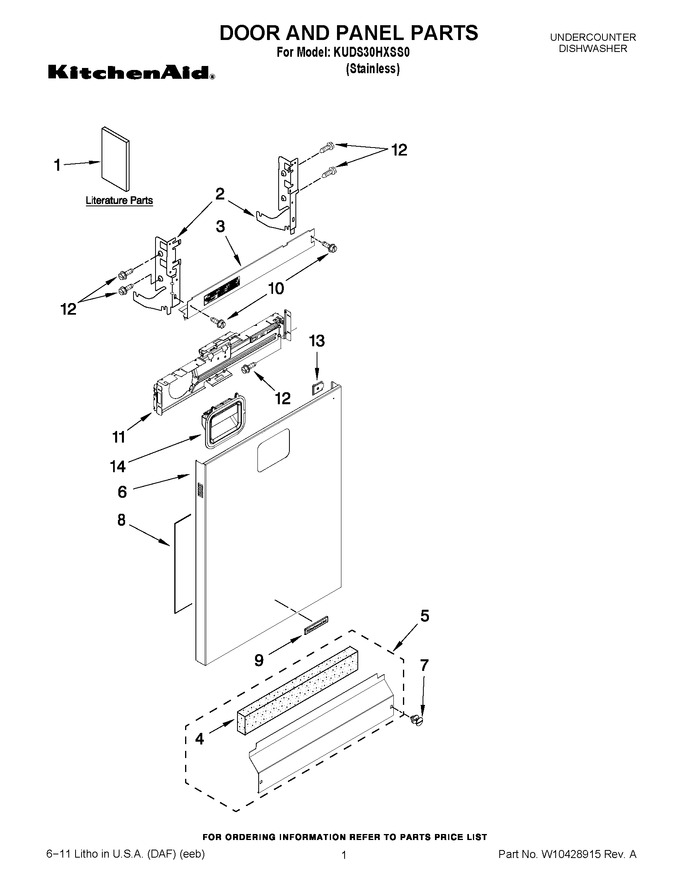

01 - Door And Panel Parts


02 - Control Panel And Latch Parts


03 - Inner Door Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump, Washarm And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Lower Washarm And Strainer Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10321621		Instructions, Installation		Appelez-nous	-
1	W10421303		Energy Guide		Appelez-nous	-
1	W10300929		Guide, Use & Care (english/french)		Appelez-nous	-
1	W10195615		Tech Sheet/english		Appelez-nous	-
1	W10195616		Tech Sheet/french		Appelez-nous	-
2	W11806565		Arm, Hinge (left)   (Replaces: 8534854)			Immediately	$ 142.39
2	W11806608		Arm, Hinge (right)   (Replaces: 8534853)			Immediately	$ 142.24
3	W10850371		Vapor Barrier Assembly   (Replaces: W10321449)			Immediately	$ 32.88
4	W10831329		Insulation, Access Panel   (Replaces: W10385107)			Immediately	$ 43.30
5	WPW10526114		Access Panel   (Replaces: W10369029)			Immediately	$ 149.53
6	WPW10195724		Panel, Full Front (includes Items 9, 13 & 14)   (Replaces: W10195724)				$ 468.71
7	WPW10503548		Fastener   (Replaces: W10331789)			Immediately	$ 30.39
8	W11126003		Insulation Front Panel   (Replaces: W10315897)			Immediately	$ 65.25
9	W10413062		Nameplate		Appelez-nous	-
10	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
11	W11116870		Bracket, Panel Control   (Replaces: W10194911)				$ 89.95
12	WP3400071		Screw   (Replaces: 3400071)				$ 8.26
13	W10319007		Light, Pipe				$ 72.00
14	W10195552		Handle, Assembly				$ 153.14

    View Diagram in Separate Window       Print Part List
