SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door

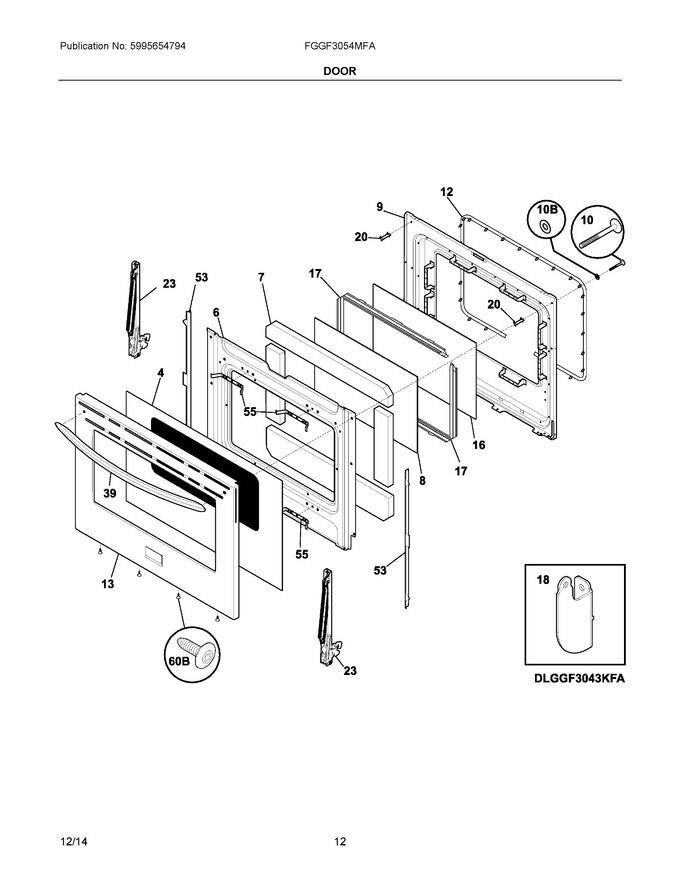

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	316452723		Glass, Oven Door, Black, W/foil			Immediately	$ 251.11
6	316402316		Shield, Wool   (Replaces: 316402310)			Immediately	$ 98.58
7	316403900		Insulation, Oven Door			Immediately	$ 80.33
8	5304503232		Glass, Oven Door, Heat Barrier   (Replaces: 316117500)				$ 129.94
9	316423811		Liner, Oven Door				$ 141.54
10	316433303		Screw, Handle Mtg., 10-24 X 1.75", (2)   (Replaces: 316439500)			Immediately	$ 34.63
12	5304498835		Seal, Oven Door   (Replaces: 316403101)			Immediately	$ 98.60
13	316604011		Panel, Oven Door, Stainless   (Replaces: 316407818)				$ 145.14
16	316117501		Glass, Oven Door, Inner				$ 148.16
17	5304504811		Spacer, Door Glass, (2)   (Replaces: 316402403)			Immediately	$ 27.80
18	316547900		Link, Door, (2), Auto Rack				$ 20.56
20	316284100		Spacer, Door Handle, (2)				$ 16.54
23	316575906		Hinge, Oven Door			Immediately	$ 103.65
39	316554010		Handle, Door/drawer, Stainless   (Replaces: 316554005)			Immediately	$ 187.16
53	5304532043		Shield, Filler, Door, (2)   (Replaces: 316408101)				$ 41.57
55	316408300		Bracket, Glass Support, (4)				$ 23.59
10B	316008401		Washer, 3/4 Od X 1/4 Id, Steel				$ 12.60
60B	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 30.55
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
NI	316433603		Label, Anti-tip				$ 3.94
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 15.75

    View Diagram in Separate Window       Print Part List
