SELECT A DIAGRAM

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Drawer & Broiler Parts

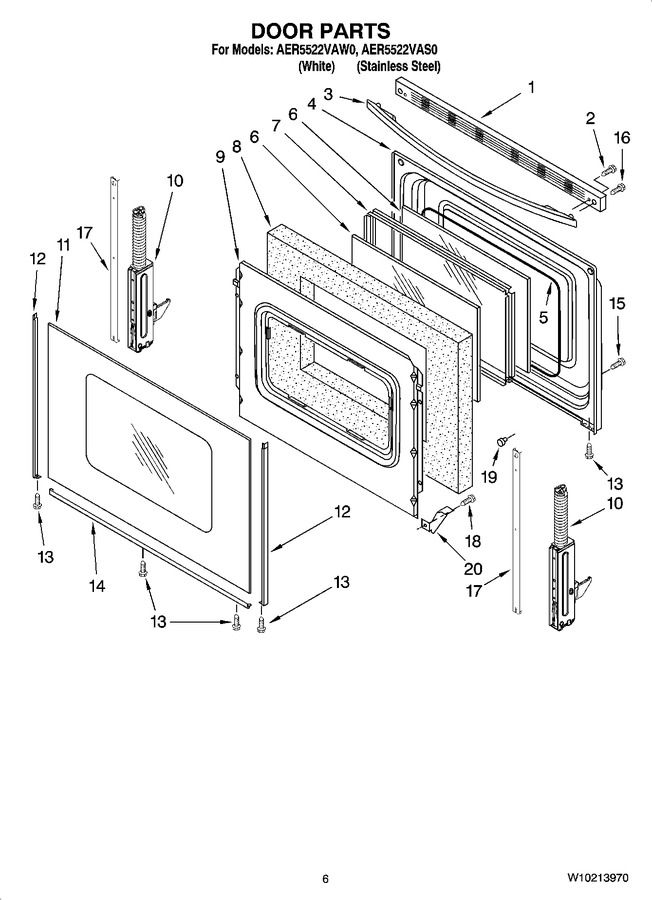

05 - Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10310922		Trim, Top (black)   (Replaces: W10144870)			Immediately	$ 175.37
1	W10817433		Trim, Top (white)   (Replaces: W10144869)			Immediately	$ 103.27
2	WP3196164		Screw   (Replaces: 3196164)			Immediately	$ 11.03
3	W10144888		Handle, Door (white)				$ 100.10
3	W10144889		Handle, Door (black)				$ 102.17
4	WP9761344		Liner, Door   (Replaces: 9761344)			Immediately	$ 372.89
5	8522414		Seal, Window				$ 160.59
6	WP8053948		Glass, Inner (2)   (Replaces: 9758162)				$ 178.28
7	WPW10316950		Frame, Glass   (Replaces: 3186289)			Immediately	$ 90.09
8	WPW10278991		Insulation, Door   (Replaces: 8272618)			Immediately	$ 101.37
9	W11539580		Retainer, Insul.   (Replaces: 9761357)				$ 233.31
10	W10347466		Hinge, Door (2)   (Replaces: 9761493)			Immediately	$ 219.84
11	WPW10118455		Glass, Outer (black)   (Replaces: W10118455)			Immediately	$ 332.70
11	WPW10118454		Glass, Outer (white)   (Replaces: W10118454)				$ 324.91
12	W10761018		Trim, Side (black Left Hand)   (Replaces: 8523171)			Immediately	$ 53.77
12	WP8523172		Trim, Side (white Right Hand)   (Replaces: 8523172)			Immediately	$ 69.93
12	WP8523166		Trim, Side (white Left Hand)   (Replaces: 8523166)			Immediately	$ 84.23
12	W10761014		Trim, Side (black Right Hand)   (Replaces: 8523165)			Immediately	$ 72.96
13	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.55
14	WP8523177		Trim, Lower (black)   (Replaces: 8523177)			Immediately	$ 165.86
14	W11594186		Trim, Lower (white)   (Replaces: 8523175)			Immediately	$ 61.37
15	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 8.74
16	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 8.26
17	W11502236		Strap, Door   (Replaces: W10113759)			Immediately	$ 27.68
18	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.55
19	238614		Bumper, Door (2)   (Replaces: 3195809)				$ 84.79
20	W10137382		Clip, Panel (2)			Immediately	$ 48.42
NI	3184020		Wire, Ground   (Replaces: 311227)				$ 86.92
NI	WP3196154		Screw   (Replaces: 3196154)				$ 8.44
NI	313660		Clip, Wire Ground		Appelez-nous	-
NI	W11244557		Screw   (Replaces: 3196173)				$ 14.29
NI	72017		Paint, Touch-up (1/2oz.) White			Immediately	$ 12.30
NI	242828		Wire, Black 12 Ga. 150 C		Appelez-nous	-
NI	242821		Wire, Blue 14 Ga. 150 C		Appelez-nous	-
NI	242822		Wire, Brown 14 Ga. 150 C		Appelez-nous	-
NI	242830		Wire, Brown 14 Ga. 200 C		Appelez-nous	-
NI	242823		Wire, Green 14 Ga. 150 C		Appelez-nous	-
NI	242824		Wire, Orange 14 Ga. 150 C		Appelez-nous	-
NI	242825		Wire, Red 14 Ga. 150 C		Appelez-nous	-
NI	242831		Wire, Red 14 Ga. 200 C				$ 342.23
NI	242827		Wire, Yellow 14 Ga. 150 C		Appelez-nous	-
NI	799832		Kit, Porcelain Repair (white)		Appelez-nous	-
NI	8212471		Touch-up Self-clean(1/2 Pt)   (Replaces: 242756)			Immediately	$ 87.22
NI	261582		Grease		Appelez-nous	-
NI	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 55.47
NI	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 55.47
NI	511873		Paint, Touch-up (1/2oz.) White Porcelain (2 Oz.)				$ 51.75
NI	350930		Paint, Pressurized Spray (12 Oz.) ( White)			Immediately	$ 40.12
NI	285006		Paint, Pressurized Spray 12 Oz.) (superior Black)				$ 59.89
NI	350942		Paint, Pressurized Spray (12 Oz.) (primer) (white)   (Replaces: 206922)				$ 94.14
NI	799344		Paint, Bulk (1 Qt.) (white (uncut))				$ 237.46
NI	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
NI	3184478		Cleaner, Glass		Appelez-nous	-
NI	4396923		Broiler Pan Assy			Immediately	$ 60.71
NI	W11839019		Anti-tip Kit   (Replaces: W10017440)			Immediately	$ 28.54
NI	W10251772		Harness, Wire (main)   (Replaces: W10114335)		Appelez-nous	-
NI	W11172524		Harness, Wire Door Switch/sensor   (Replaces: W10084660)				$ 217.19
NI	W11396691		Harness, Wire (surface Unit)   (Replaces: W10196280)				$ 189.76

    View Diagram in Separate Window       Print Part List
