Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10208754 Console Assembly (includes Insert) (white) Appelez-nous -
1 W10208753 Console Assembly (includes Insert) (black) Appelez-nous -
2 W10102497 Door Switch Appelez-nous -
3 W10258275 Bi-metal   (Replaces: W10344801) In-Stock Immediately $ 41.71

4 WPW10348409 Screw   (Replaces: W10348409) In-Stock Immediately $ 8.20

5 WPW10404412 Latch Assembly   (Replaces: W10404412) In-Stock Immediately $ 85.50

6 WPW10285178 Control, Electronic   (Replaces: W10285178) Special Order $ 263.40


    View Diagram in Separate Window     Print Icon   Print Part List

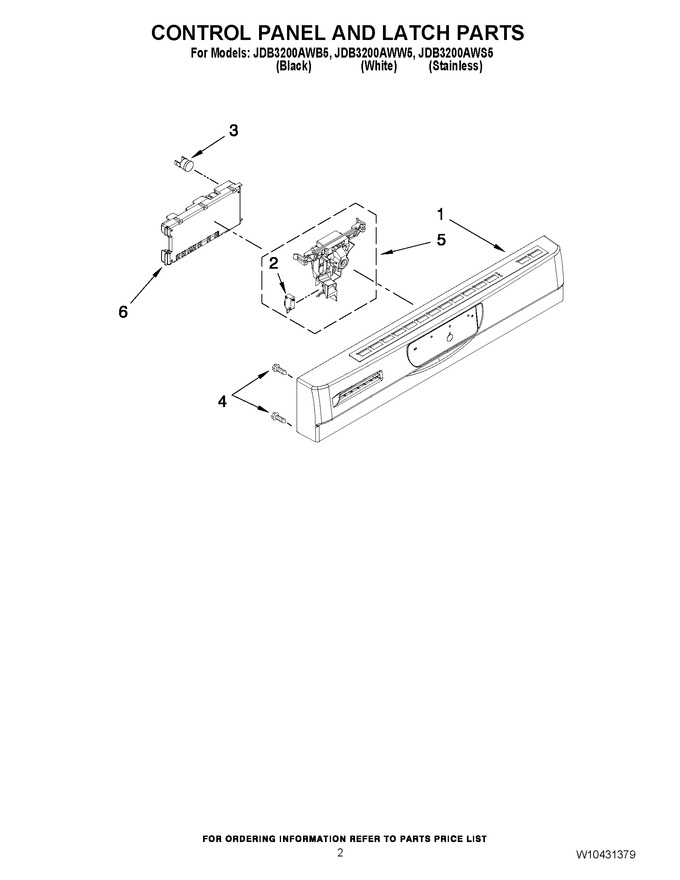

Diagram for JDB3200AWS5
