SELECT A DIAGRAM

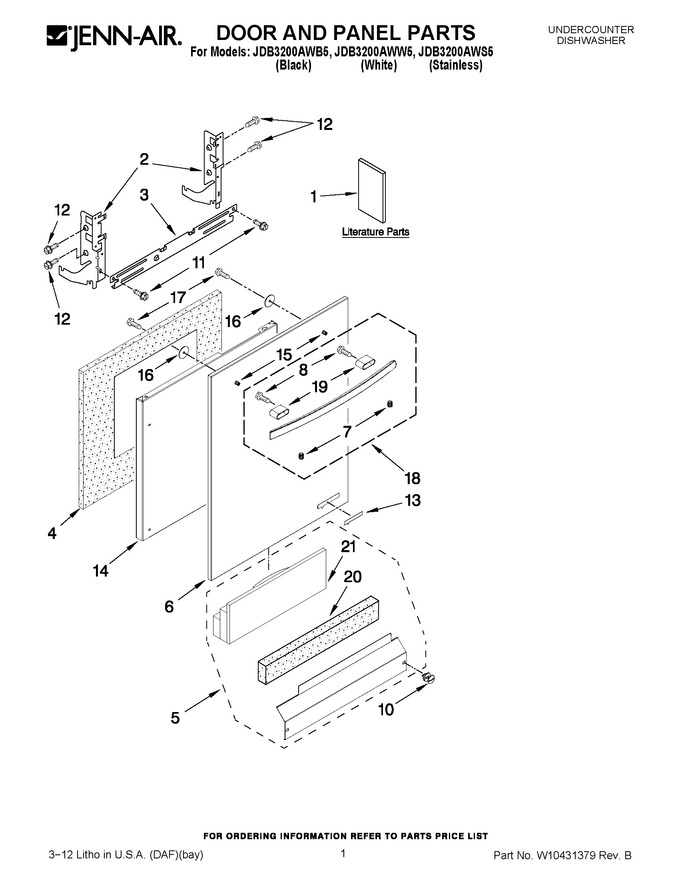

01 - Door And Panel Parts


02 - Control Panel And Latch Parts


03 - Inner Door Parts


04 - Fill And Overfill Parts


05 - Tub And Frame Parts


06 - Pump, Washarm And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10142826		Tech Sheet		Appelez-nous	-
1	W10395346		Energy Guide		Appelez-nous	-
1	W10300216		Guide, Use & Care (english/french)		Appelez-nous	-
1	W10300217		Guide, Use & Care (spanish)		Appelez-nous	-
1	W10321619		Instructions, Installation		Appelez-nous	-
2	W11806565		Arm, Hinge (left)   (Replaces: 8534854)			Immediately	$ 142.39
2	W11806608		Arm, Hinge (right)   (Replaces: 8534853)			Immediately	$ 142.24
3	8268983		Stiffener, Door				$ 38.77
4	W10234565		Insulation, Door				$ 69.57
5	WPW10526114		Access Panel (black)   (Replaces: W10368715)			Immediately	$ 149.53
5	WPW10526115		Access Panel (white)   (Replaces: W10368716)				$ 175.17
6	W10234556		Panel, Full Front (includes Items 4, 13, 14, 15,16 & 17) (black)		Appelez-nous	-
6	W10234557		Panel, Full Front (includes Items 4, 13, 14, 15,16 & 17) (white)		Appelez-nous	-
6	W10234558		Panel, Full Front (includes Items 4, 13, 14, 15,16 & 17) (stainless)				$ 333.12
7	W10276608		Screw, Set				$ 46.73
8	W10267047		Screw   (Replaces: W10201588)				$ 13.47
10	WPW10503549		Fastener (white)   (Replaces: W10331793)			Immediately	$ 7.77
10	WPW10503548		Fastener (black)   (Replaces: W10331789)			Immediately	$ 30.39
11	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
12	WP3400071		Screw   (Replaces: 3400071)				$ 8.26
13	WPW10214168		Nameplate (stainless)   (Replaces: W10214168)				$ 85.95
13	W10190723		Nameplate (white)				$ 111.95
13	WPW10214168		Nameplate (black)   (Replaces: W10190724)				$ 85.95
14	W10380059		Panel, Custom 6`` (white)		Appelez-nous	-
14	W11113792		Panel, Custom 6`` (black)   (Replaces: W10292632)			Immediately	$ 373.42
15	WP8564951		Stud   (Replaces: 8564951)			Immediately	$ 19.33
16	W10142904		Plate, Backing				$ 50.57
17	W10123421		Screw				$ 12.83
18	W10208769A		Handle (stainless)   (Replaces: W10208769)				$ 127.85
18	W10208768		Handle (white)		Appelez-nous	-
18	W10208767		Handle (black)		Appelez-nous	-
19	W10056277		Standoff, Handle Right Side (black)		Appelez-nous	-
19	W10056279		Standoff, Handle Right Side (diamond Grip)				$ 53.37
19	W10056282		Standoff, Handle Left Side (diamond Grip)		Appelez-nous	-
19	W10056281		Standoff, Handle Left Side (white)		Appelez-nous	-
19	W10056280		Standoff, Handle Left Side (black)		Appelez-nous	-
19	W10056278		Standoff, Handle Right Side (white)		Appelez-nous	-
20	W10831329		Insulation, Toe Panel   (Replaces: W10385107)			Immediately	$ 43.30
21	W10831329		Insulation, Three Layer   (Replaces: W10350437)			Immediately	$ 43.30

    View Diagram in Separate Window       Print Part List
