Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10355605 Console Asm. (includes Active Overlay & Insert) (black) Appelez-nous -
1 W10355607 Console Asm. (includes Active Overlay & Insert) (white) Appelez-nous -
1 W10355606 Console Asm. (includes Active Overlay & Insert) (stainless) Appelez-nous -
2 8546546 Clip, Bi-metal Special Order $ 7.82

3 WPW10285179 Control Electronic   (Replaces: W10285179) In-Stock Immediately $ 301.60

4 WPW10404412 Latch Assembly   (Replaces: W10077360) In-Stock Immediately $ 81.43

5 W10258275 Bi-metal   (Replaces: 661663) In-Stock Immediately $ 41.71

6 WPW10348409 Screw   (Replaces: W10348409) In-Stock Immediately $ 7.76


    View Diagram in Separate Window     Print Icon   Print Part List

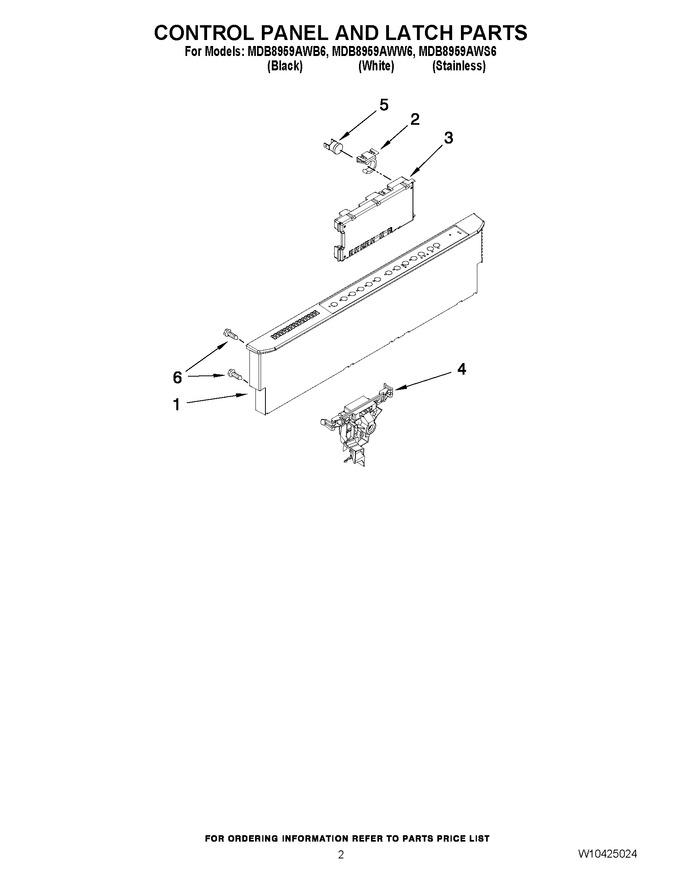

Diagram for MDB8959AWB6
