01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts

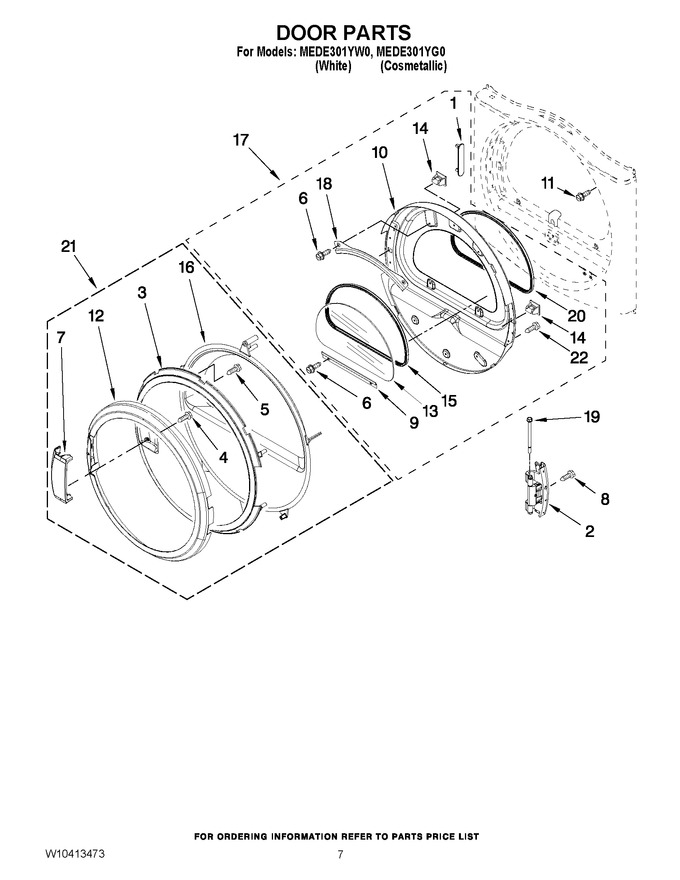

04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10256915		Label, Hinge Hole Cover   (Replaces: W10256915)				$ 82.07
2	WPW10304672		Door Hinge Assembly   (Replaces: W10304672)			Immediately	$ 232.48
3	W10405431		Door, Screen Intermediate Assy.				$ 158.92
4	W10850046		Screw, 8-18 X 5/8   (Replaces: 9742177)			Immediately	$ 7.55
5	3400618		Screw, 6-19 X 3/8				$ 67.94
6	WP3373329		Screw, 10-16 X 1/2   (Replaces: 3393258)				$ 8.52
7	8576578		Handle, Door				$ 50.30
8	WPW10159996		Screw,   (Replaces: W10159996)				$ 8.52
9	W10822054		Retainer (lower)   (Replaces: 8519354)			Immediately	$ 18.01
10	W11690171		Door, Inner   (Replaces: W10363674)				$ 204.49
11	WP355515		Screw, 8-18 X 11/16   (Replaces: 355515)				$ 8.48
12	8576577		Door, Outer Ring				$ 328.52
13	WPW10286878		Window   (Replaces: W10286878)				$ 274.76
14	279570		Door Catch Assembly   (Replaces: 690081)			Immediately	$ 8.89
15	W11706993		Seal, Window   (Replaces: 8579663)				$ 28.22
16	WP8580059		Door, Intermediate   (Replaces: 8580059)				$ 107.50
17	W10270216		Door, Inner Assembly				$ 141.94
18	8519356		Retainer (upper)		Appelez-nous	-
19	8565087		Bolt, 1/4-28		Appelez-nous	-
20	WPW10163915		Door Seal   (Replaces: W10163915)			Immediately	$ 87.42
21	W10371564		Door, Outer Assembly				$ 234.40
22	W11116979		Screw   (Replaces: 8534044)				$ 13.76

    View Diagram in Separate Window       Print Part List
