SELECT A DIAGRAM

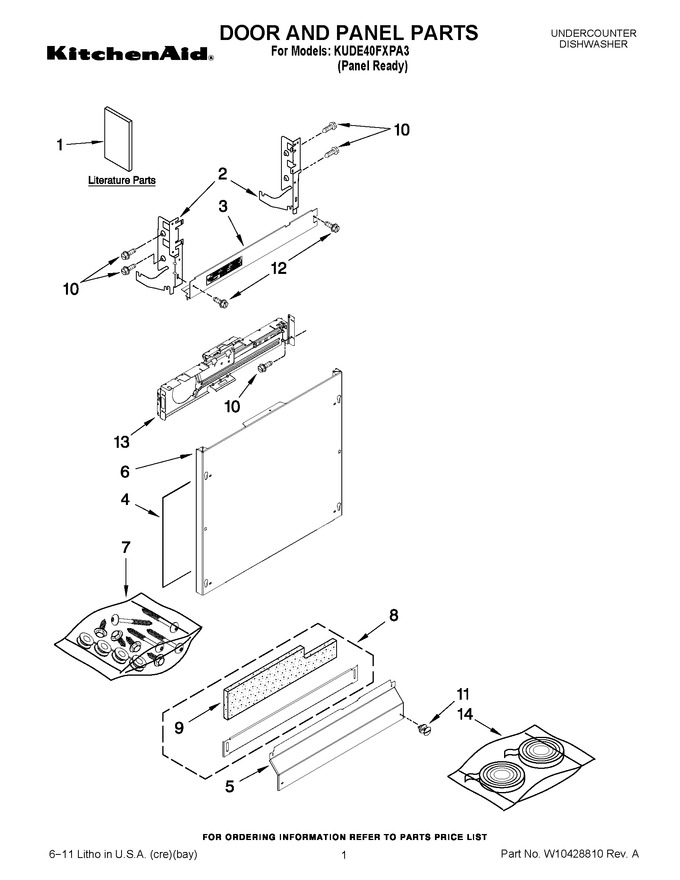

01 - Door And Panel Parts


02 - Control Panel And Latch Parts


03 - Inner Door Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump, Washarm And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10195614		Tech Sheet/french		Appelez-nous	-
1	W10321621		Instructions, Installation		Appelez-nous	-
1	W10395349		Energy Guide		Appelez-nous	-
1	W10300929		Guide, Use & Care (english/french)		Appelez-nous	-
1	W10300597		Guide, Use & Care (spanish Custom)		Appelez-nous	-
1	W10195613		Tech Sheet/english		Appelez-nous	-
2	W11806565		Arm, Hinge (left)   (Replaces: 8534854)			Immediately	$ 142.39
2	W11806608		Arm, Hinge (right)   (Replaces: 8534853)			Immediately	$ 142.24
3	W10850371		Vapor Barrier Assembly   (Replaces: W10321449)			Immediately	$ 32.88
4	W10234565		Insulation Front Panel				$ 69.57
5	W11763736		Access Panel (black)   (Replaces: W10237243)			Immediately	$ 42.25
6	W11113792		Front Panel, Panel Ready (black)   (Replaces: W10292632)			Immediately	$ 373.42
7	WPW10637074		Misc. Hardware   (Replaces: W10195008)			Immediately	$ 75.05
8	W10827631		Toe Panel (includes Item 9) (black)   (Replaces: W10369024)			Immediately	$ 195.64
9	W10831329		Insulation Toe Panel   (Replaces: W10073540)			Immediately	$ 43.30
10	WP3400071		Screw   (Replaces: 3400071)				$ 8.26
11	WPW10503548		Screw (black)   (Replaces: W10331789)			Immediately	$ 30.39
12	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
13	W11116870		Bracket, Panel Control   (Replaces: W10194911)				$ 89.95
14	WPW10366978		Seal, Panel Ready   (Replaces: W10366978)			Immediately	$ 29.80

    View Diagram in Separate Window       Print Part List
