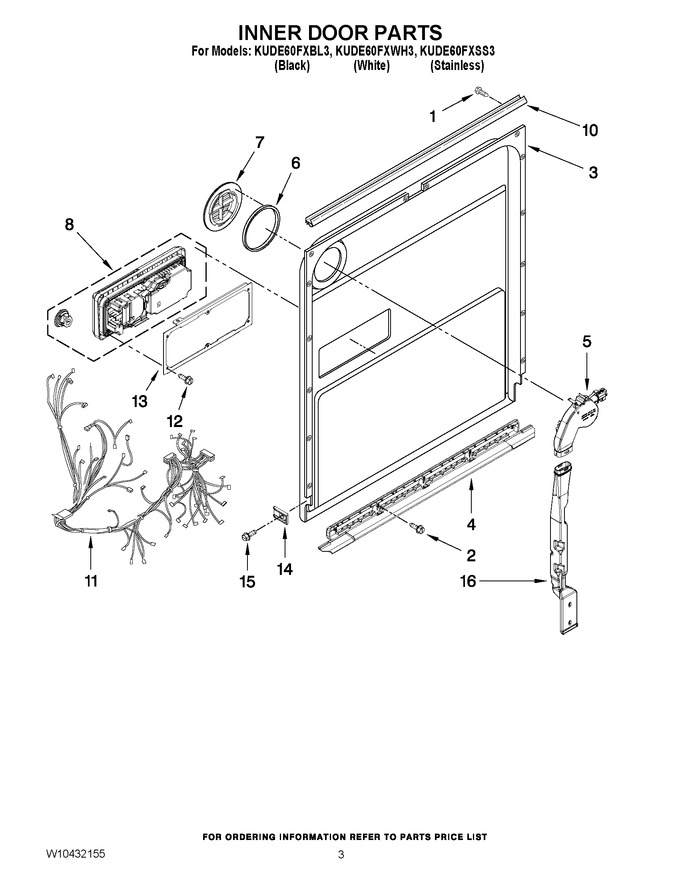

03 - Inner Door Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump, Washarm And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Third Level Rack And Track Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10348409		Screw, Door   (Replaces: W10348409)			Immediately	$ 8.20
2	W11631670		Screw   (Replaces: 8281217)				$ 14.72
3	WPW10467367		Inner Door & Mastic Assembly (also Order Item 6)   (Replaces: W10195603)				$ 382.53
4	WPW10497235		Seal-door Bottom   (Replaces: W10195543)			Immediately	$ 10.19
5	WPW10469574		Vent Assembly (also Order Item 6)   (Replaces: W10195024)			Immediately	$ 95.33
6	WP8269259		Gasket, Vent   (Replaces: 8269259)			Immediately	$ 63.50
7	WPW10195032		Deflector, Vent (also Order Item 6)   (Replaces: W10195032)			Immediately	$ 80.13
8	W11032769		Dispenser, Assembly   (Replaces: W10304408)			Immediately	$ 135.92
10	WPW10195007		Seal, Console/door   (Replaces: W10195007)				$ 166.86
11	W10416588		Wiring Harness				$ 114.12
12	WPW10177098		Screw   (Replaces: W10177098)			Immediately	$ 8.02
13	WPW10462232		Bracket, Dispenser   (Replaces: W10341423)				$ 37.79
14	W10195837		Barrier, Vapor Door				$ 30.01
15	WP3400071		Screw   (Replaces: 3400071)				$ 8.26
16	W10195463		Duct, Vent (white)				$ 57.23
16	WPW10195028		Duct, Vent (black)   (Replaces: W10195028)				$ 80.12
