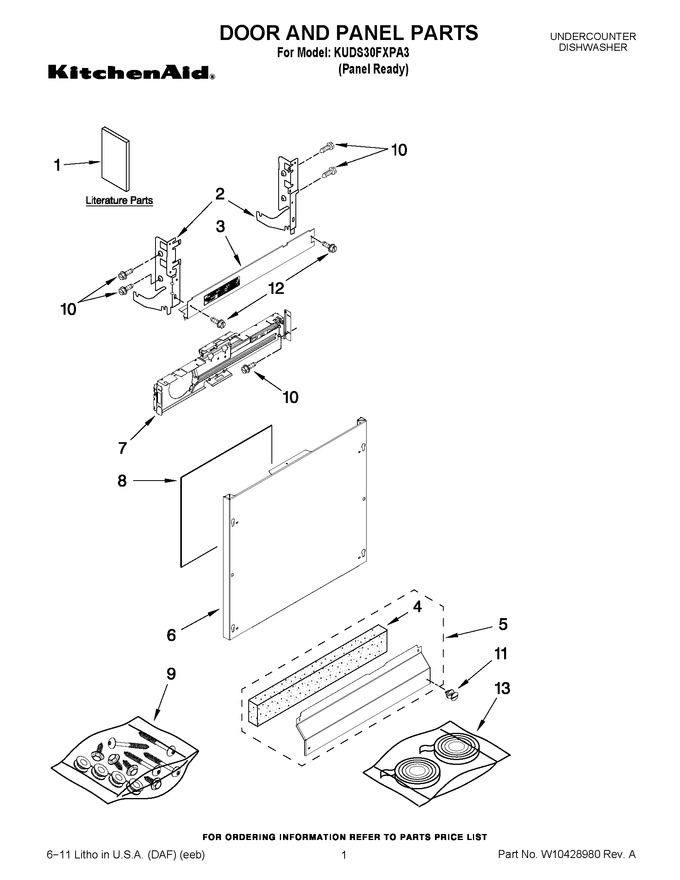

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10195616 | Tech Sheet/french |
|
- | |||||
| 1 | W10321621 | Instructions, Installation |
|
- | |||||
| 1 | W10195005 | Template, 6`` Custom Panel |
|
- | |||||
| 1 | W10395348 | Energy Guide |
|
- | |||||
| 1 | W10300928 | Guide, Use & Care (english/french) |
|
- | |||||
| 1 | W10300596 | Guide, Use & Care (spanish) |
|
- | |||||
| 1 | W10195615 | Tech Sheet/english |
|
- | |||||
| 2 | W11806565 | Arm, Hinge (left) (Replaces: 8534854) |
|
Immediately | $ 142.39 | ||||
| 2 | W11806608 | Arm, Hinge (right) (Replaces: 8534853) |
|
Immediately | $ 142.24 | ||||
| 3 | W10850371 | Vapor Barrier Assembly (Replaces: W10321449) |
|
Immediately | $ 32.88 | ||||
| 4 | W10831329 | Insulation, Toe Panel (Replaces: W10385107) |
|
Immediately | $ 43.30 | ||||
| 5 | WPW10526114 | Access Panel (black) (Replaces: W10369029) |
|
Immediately | $ 149.53 | ||||
| 6 | W11113792 | Panel, Front Panel Ready (black) (Replaces: W10292632) |
|
Immediately | $ 373.42 | ||||
| 7 | W11116870 | Bracket, Panel Control (Replaces: W10194911) |
|
$ 89.95 | |||||
| 8 | W10234565 | Insulation Front Panel |
|
$ 69.57 | |||||
| 9 | WPW10637074 | Misc. Hardware (Replaces: W10195008) |
|
Immediately | $ 75.05 | ||||
| 10 | WP3400071 | Screw (Replaces: 3400071) |
|
$ 8.26 | |||||
| 11 | WPW10503548 | Screw Fastener (Replaces: W10331789) |
|
Immediately | $ 30.39 | ||||
| 12 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 8.40 | ||||
| 13 | WPW10366978 | Seal, Panel Ready (Replaces: W10366978) |
|
Immediately | $ 29.80 |
