SELECT A DIAGRAM

01 - Top And Cabinet Parts

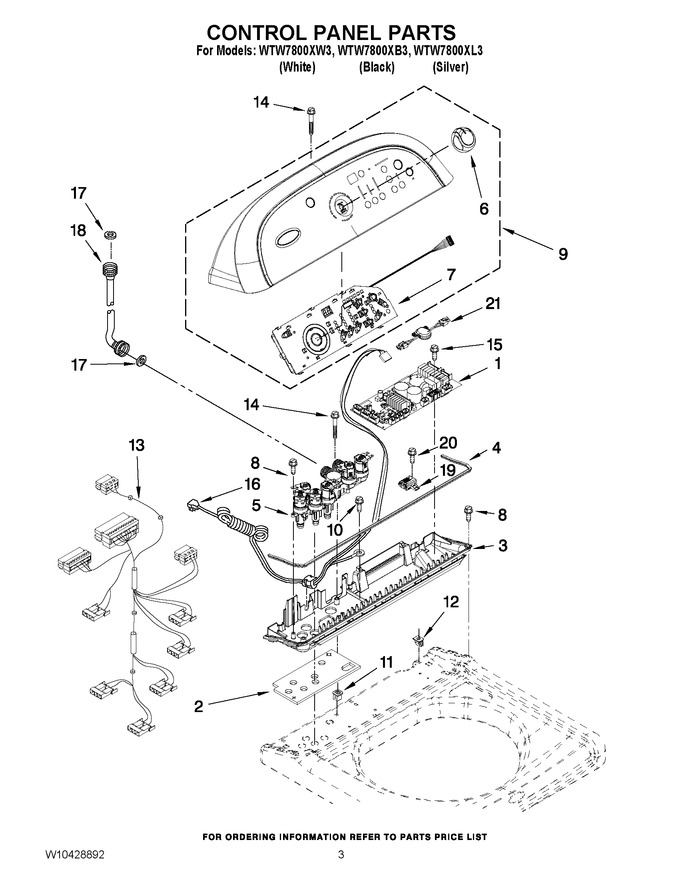

02 - Control Panel Parts


03 - Motor, Basket And Tub Parts


04 - Pump Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10372179		Control Unit Assembly, Machine & Motor				$ 325.45
2	W10130502		Gasket, Valve Tray				$ 19.43
3	8578550		Tray Assembly, Console (includes Items 2 & 4) (white)				$ 45.19
3	W10309224		Tray Assembly, Console (includes Items 2 & 4) (black)		Appelez-nous	-
3	W10309229		Tray Assembly, Console (includes Items 2 & 4) (gray)		Appelez-nous	-
4	8546616		Gasket, Console/tray				$ 60.11
5	W10853723		Valve, Log Assembly   (Replaces: W10326913)			Immediately	$ 121.66
6	WPW10211335		Knob, Control   (Replaces: W10211335)				$ 59.76
7	W10297399		User Interface				$ 291.96
8	WPW10052600		Screw, 8-18 X 3/4   (Replaces: W10052600)				$ 7.30
9	W10211350		Console (silver)				$ 361.22
9	W10211348		Console (white)				$ 348.89
9	W10211349		Console (black)		Appelez-nous	-
10	WP3351614		Screw, Power Cord Ground   (Replaces: 3351614)			Immediately	$ 7.30
11	98460		Nut, Push-in				$ 12.07
12	W10022060		Nut, Push-in		Appelez-nous	-
13	WPW10328040		Harness, Valve   (Replaces: W10328040)				$ 262.46
14	8565324		Screw, 10-16 X 1.75				$ 14.05
15	WP8281136		Screw, 8-18 X 3/4   (Replaces: 8281136)				$ 7.30
16	3407203		Cord Assembly, Power				$ 59.22
17	WP16123		Washer, Water Inlet Hose (1-1/16 X 5/8)   (Replaces: W10242307)				$ 8.16
18	WP89503		Hose, Water Inlet (hot Water)   (Replaces: 8571378)			Immediately	$ 24.09
18	WP89503		Hose, Water Inlet (cold Water)   (Replaces: W10194208)			Immediately	$ 24.09
19	WPW10346406		Power Supply   (Replaces: W10346406)				$ 319.97
20	WP9740849		Screw, 8-18 X 7/16   (Replaces: 9740849)				$ 7.30
21	W10307472		Harness, Led				$ 52.66
