| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
285203 |
 |
Centerpost Bearing Kit (incls. Illus. 10, 11, & 12) |
|
|
Immediately |
$ 104.95 |
|
|
| 2 |
696044 |
 |
Block, Restraint |
|
|
|
$ 88.33 |
|
|
| 3 |
WP64137 |
|
Shield, Tub (Replaces: 64137) |
|
|
|
$ 32.97 |
|
|
| 4 |
WPW10250667 |
 |
Spring, Counterweight (Replaces: W10250667) |
|
|
Immediately |
$ 9.59 |
|
|
| 5 |
W10207783 |
 |
Suspension Assembly (Replaces: 3406201) |
|
|
Immediately |
$ 171.70 |
|
|
| 6 |
WP8577373 |
 |
Base (Replaces: 8577373) |
|
|
|
$ 343.97 |
|
|
| 7 |
W10863713 |
 |
Tub Support And Drum (Replaces: 63740) |
|
|
|
$ 420.26 |
|
|
| 8 |
WP3351614 |
 |
Screw, 10-24 X 3/8 (Replaces: 3351614) |
|
|
Immediately |
$ 7.30 |
|
|
| 9 |
WP90767 |
 |
Screw, 10-24 3/8 (Replaces: 90767) |
|
|
Immediately |
$ 8.25 |
|
|
| 10 |
WP8577376 |
 |
Seal, Centerpost (Replaces: 8577376) |
|
|
Immediately |
$ 7.55 |
|
|
| 11 |
WP8546455 |
 |
Bearing, Centerpost (Replaces: 8546455) |
|
|
Immediately |
$ 29.36 |
|
|
| 12 |
W11095997 |
 |
Seal, Centerpost (Replaces: 357409) |
|
|
Immediately |
$ 23.42 |
|
|
| 13 |
WP63134 |
 |
Ring, Sound Deadening (Replaces: 63134) |
|
|
|
$ 8.58 |
|
|
| 14 |
WP681414 |
 |
Screw, 10-16 X 1/2 (Replaces: 343641) |
|
|
Immediately |
$ 8.47 |
|
|
| 15 |
63636 |
|
Bracket, Counterweight Spring |
|
|
|
$ 47.00 |
|
|
| 16 |
386011 |
|
Screw & Washer (base To Cabinet) |
|
Appelez-nous
|
- |
|
|
|
| 17 |
63637 |
|
Shield, Tub |
|
Appelez-nous
|
- |
|
|
|
| 18 |
279710 |
 |
Nut, 1/2-13 (Replaces: 3351021) |
|
|
|
$ 83.49 |
|
|

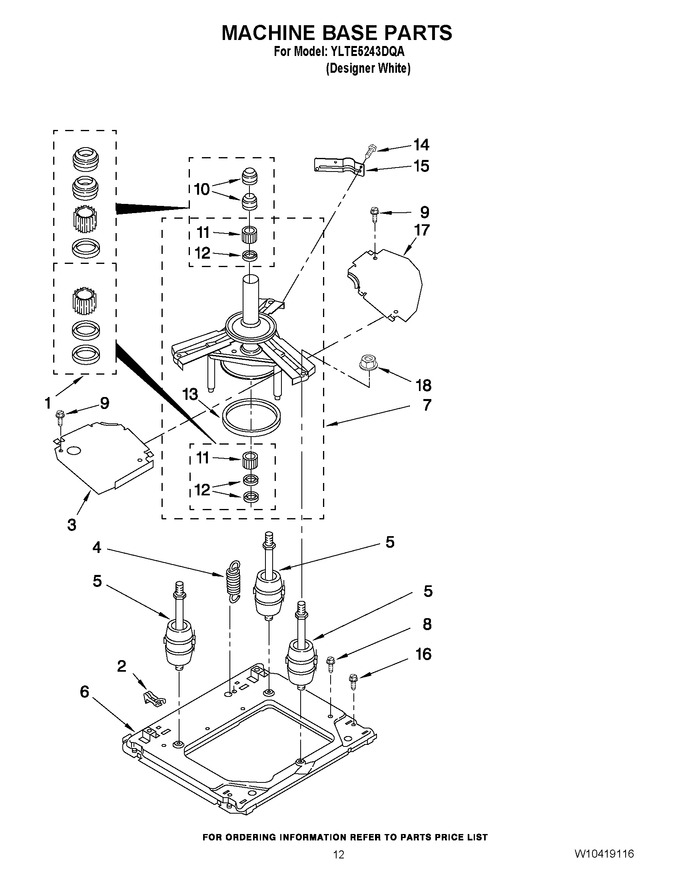

View Diagram in Separate Window
Print Part List
