01 - Cover Sheet

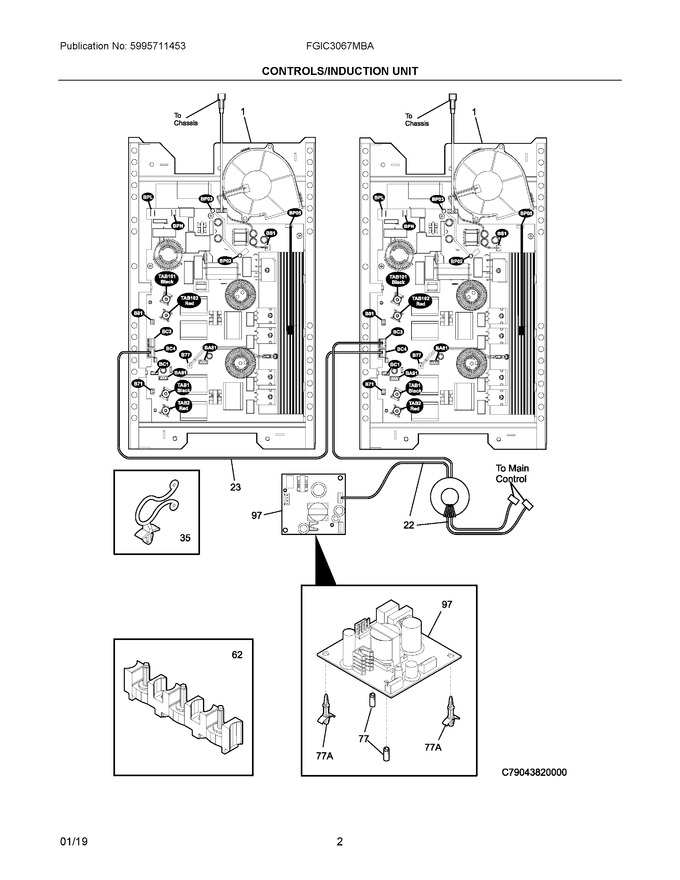

02 - Controls/induction Unit
03 - Main Top/surface Units
04 - Wiring Diagram
05 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 903160-9010 | Housing Assembly, Induction, Generator, W/electronics (Replaces: 318416100) |
|
Immediately | $ 909.37 | ||||
| 22 | 318578343 | Harness, Wiring, Communication, W/magnetic Core |
|
$ 611.75 | |||||
| 23 | 318578332 | Harness, Wiring, Communication |
|
Immediately | $ 60.39 | ||||
| 35 | 216273000 | Clip, Wire Retainer |
|
$ 24.91 | |||||
| 62 | 5304409888 | Terminal Block (Replaces: 316056000) |
|
Immediately | $ 29.66 | ||||
| 77 | 5304484164 | Spacer, Power Board, Nylon, (2) |
|
- | |||||
| 97 | 318416300 | Board, Power Supply |
|
$ 320.99 | |||||
| 77A | 316114100 | Spacer |
|
$ 67.73 | |||||
| NI | 5304462994 | Screw, 8-32 X 5/16 |
|
- | |||||
| NI | 5304522487 | Harness, Wiring, Main (Replaces: 318578313) |
|
$ 51.19 | |||||
| NI | 318394497 | Box & Wires Assy |
|
$ 111.75 | |||||
| NI | 5304484163 | Retainer, Wire, Nylon, (2) |
|
- | |||||
| NIA | 316205500 | Nut, 10-32 (Replaces: 5303323144) |
|
$ 12.60 | |||||
| NIB | 5304447555 | Screw & Washer, 6-32 X 3/4, (2) |
|
$ 17.69 |
