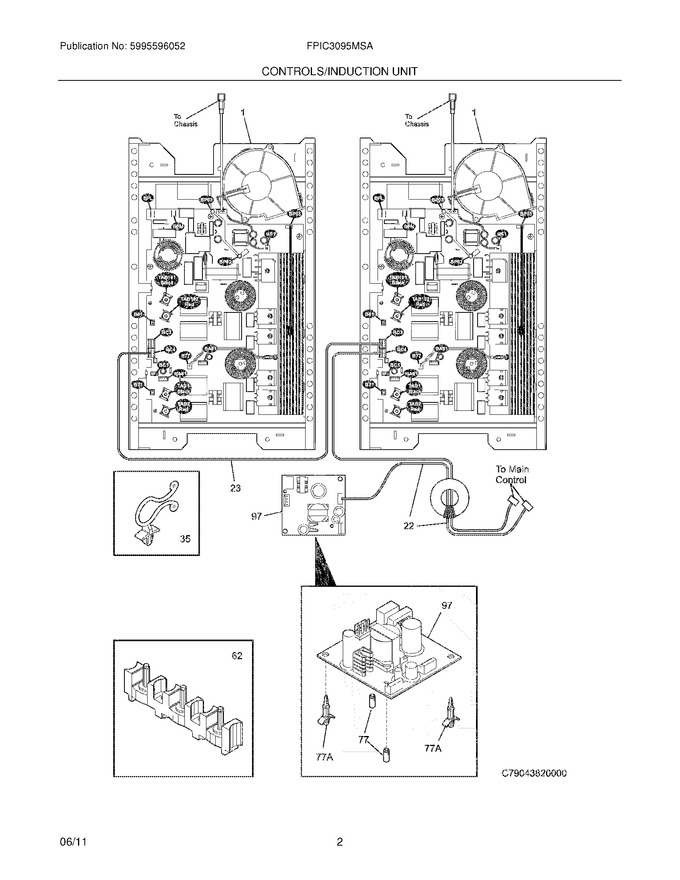

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 35 | 216273000 | Clip,wire Retainer |
|
$ 24.91 | |||||
| 62 | 5304409888 | Terminal Block (Replaces: 316056000) |
|
Immediately | $ 29.66 | ||||
| 77 | 5304484164 | Spacer,power Board ,nylon ,(2) |
|
- | |||||
| 77A | 316114100 | Spacer |
|
$ 67.73 | |||||
| F1 | 903160-9010 | Housing Assembly,induction ,generator ,w/electronics (Replaces: 318416100) |
|
Immediately | $ 909.37 | ||||
| F22 | 318578343 | Harness,wiring ,communication ,w/magnetic Core |
|
$ 611.75 | |||||
| F23 | 318578332 | Harness,wiring ,communication |
|
Immediately | $ 60.39 | ||||
| F97 | 318416300 | Board,power Supply |
|
$ 320.99 | |||||
| FNI | 318394497 | Box & Wires Assy |
|
$ 111.75 | |||||
| FNI | 5304522487 | Harness,wiring ,main (Replaces: 318578313) |
|
$ 51.19 | |||||
| NI | 5304447555 | Screw & Washer,6-32 X 3/4 ,(2) |
|
$ 17.69 | |||||
| NI | 5304462994 | Screw,8-32 X 5/16 |
|
- | |||||
| NI | 5304484163 | Retainer,wire ,nylon ,(2) |
|
- | |||||
| NI | 316205500 | Nut-10-32 (Replaces: 5303323144) |
|
$ 12.60 |
