01 - Cooktop Parts
02 - Control Panel Parts

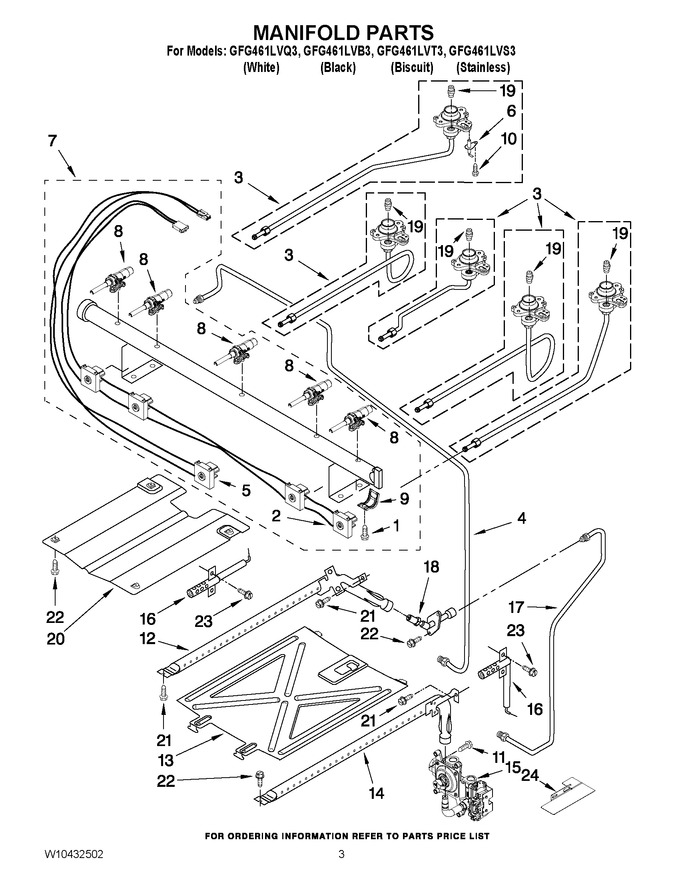

03 - Manifold Parts
04 - Chassis Parts
05 - Drawer & Broiler Parts
06 - Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10295997 | Screw, Valve |
|
$ 7.32 | |||||
| 2 | WPW10295998 | Hanress, Switches (Replaces: W10295998) |
|
$ 228.23 | |||||
| 3 | W10170347 | Tubing, Burner W/orifice (left Front) |
|
$ 48.41 | |||||
| 3 | W10157418 | Tubing, Burner W/orifice (left Rear) |
|
$ 49.23 | |||||
| 3 | WPW10157419 | Tubing, Burner W/orifice (center) (Replaces: W10157419) |
|
$ 114.78 | |||||
| 3 | WPW10157415 | Tubing, Burner W/orifice (right Rear) (Replaces: W10157415) |
|
$ 115.46 | |||||
| 3 | W10170345 | Tubing, Burner W/orifice (right Front) |
|
$ 47.05 | |||||
| 4 | W11680399 | Tubing, Manifold (Replaces: W10215439) |
|
$ 159.35 | |||||
| 5 | W10303698 | Harness, Switch (w/switches) |
|
$ 198.29 | |||||
| 6 | WPW10216419 | Electrode (Replaces: W10216419) |
|
Immediately | $ 36.72 | ||||
| 7 | W10314239 | Assembly, Manifold |
|
$ 337.96 | |||||
| 8 | WPW10247744 | Valve (right Rear) (Replaces: W10247744) |
|
$ 280.12 | |||||
| 8 | WPW10279614 | Valve (left Rear) (Replaces: W10279614) |
|
$ 279.81 | |||||
| 8 | WPW10279615 | Valve (lf & Rf) (Replaces: W10279615) |
|
$ 258.91 | |||||
| 8 | W10279613 | Valve (center) |
|
- | |||||
| 9 | W10949105 | Bracket, Saddle (Replaces: W10295996) |
|
$ 22.75 | |||||
| 10 | WP8273062 | Screw (Replaces: 8273062) |
|
Immediately | $ 7.91 | ||||
| 11 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 8.39 | |||||
| 12 | WP8054078 | Burner, Broiler (Replaces: 8054078) |
|
$ 239.36 | |||||
| 13 | WPW10184491 | Spreader, Flame (oven) (Replaces: W10184491) |
|
$ 253.52 | |||||
| 14 | WP9758078 | Burner, Bake (Replaces: 9758078) |
|
$ 226.07 | |||||
| 15 | WPW10602001 | Valve/regulator (Replaces: W10224914) |
|
$ 340.97 | |||||
| 16 | WP8054129 | Igniter (broil) (Replaces: 8054129) |
|
Immediately | $ 137.14 | ||||
| 16 | WP9758079 | Igniter (bake) (Replaces: 9758079) |
|
Immediately | $ 41.01 | ||||
| 17 | W10420040 | Tubing (broiler Fitting To Valve) |
|
$ 194.54 | |||||
| 18 | W10340259 | Fitting, Broiler |
|
- | |||||
| 19 | WPW10170507 | Orifice, Burner (center) (Replaces: W10170507) |
|
$ 97.85 | |||||
| 19 | WPW10170508 | Orifice, Burner (left Rear) (Replaces: W10170508) |
|
$ 95.21 | |||||
| 19 | WPW10170510 | Orifice, Burner (right Front) (Replaces: W10170510) |
|
$ 97.85 | |||||
| 19 | WPW10170506 | Orifice, Burner (right Rear) (Replaces: W10170506) |
|
$ 97.85 | |||||
| 19 | W10170511 | Orifice, Burner (left Front) |
|
$ 42.01 | |||||
| 20 | W10137062 | Spreader, Flame (broiler) |
|
- | |||||
| 21 | 3196265 | Screw |
|
- | |||||
| 22 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 14.72 | ||||
| 23 | W11684507 | Screw (Replaces: 3196385) |
|
$ 14.27 | |||||
| 24 | W10224921 | Bracket, Regulator |
|
- | |||||
| NI | W10407543 | Spuds, Lp Gas (kit Of 5) |
|
- |
