SELECT A DIAGRAM

01 - Cabinet Parts


02 - Cabinet Trim Parts


03 - Freezer Shelf Parts


04 - Refrigerator Liner Parts


05 - Control Panel Parts


06 - Top Grille And Unit Cover Parts


07 - Refrigerator Shelf Parts


08 - Freezer Liner And Air Flow Parts


09 - Refrigerator Door Parts


10 - Freezer Door Parts


11 - Upper Unit Parts


12 - Lower Unit And Tube Parts


13 - Icemaker Parts

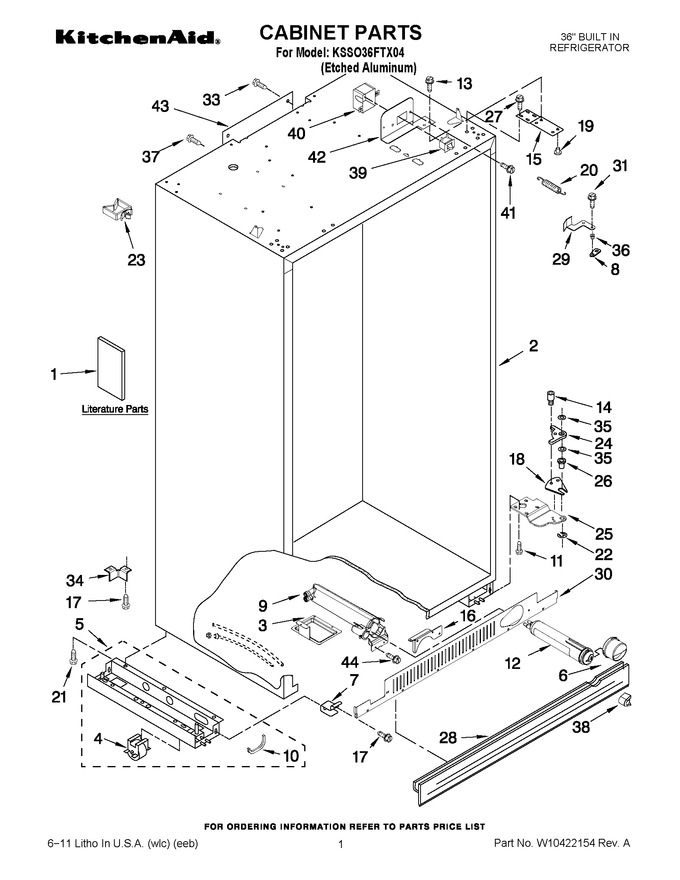

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10379133		Installation Instructions		Appelez-nous	-
1	W10303989		Use & Care Guide		Appelez-nous	-
1	W10205636		Energy Label		Appelez-nous	-
1	W10159831		Service & Wiring Sheet		Appelez-nous	-
1	2306337		Icemaker And Ingredient Care Center Service Sheet		Appelez-nous	-
1	W10295452		Main Control Service Sheet		Appelez-nous	-
2	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
3	2318189		Tray, Drip Filter				$ 133.86
4	WPW10138054		Roller, Front & Rear   (Replaces: W10138054)				$ 40.81
5	W10860448		Support, Leveler Assembly (refrigerator Side)   (Replaces: W10138423)			Immediately	$ 344.70
5	W10860229		Support, Leveler Assembly (freezer Side)   (Replaces: W10279275)				$ 343.65
6	WP2260518B		Cap, Water Filter   (Replaces: 2260518B)			Immediately	$ 30.56
7	W10839844		Mounting, Grill   (Replaces: 2307640)				$ 38.93
8	2005783		Cam, Door Closer				$ 26.20
9	WPW10121140		Housing, Water Filter   (Replaces: W10121140)			Immediately	$ 243.77
10	2307584		Grommet, Crossover Tube				$ 21.06
11	3400525		Screw				$ 12.83
12	EDR3RXD1B		Filter, Water   (Replaces: W10121146)			Immediately	$ 49.99
13	WP489399		Screw   (Replaces: 489399)				$ 6.57
14	WP2005378		Screw, Door Stop   (Replaces: 2005378)				$ 10.82
15	2252291		Hinge (top) (fc)				$ 71.42
15	2252292		Hinge (top) (rc)				$ 79.91
16	W11755873		Bracket, Mtg. (water Filter)   (Replaces: W10348782)				$ 72.30
17	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 7.54
18	WP2004994		Lock, Adjustable Bushing   (Replaces: 2004994)			Immediately	$ 7.55
19	2300082		Bushing				$ 13.44
20	W11805224		Spring, Door Closure   (Replaces: 2221242)		Appelez-nous	-
21	W11624204		Screw   (Replaces: 486194)				$ 13.25
22	WP489236		Retaining Ring, Adjustable Bushing   (Replaces: 2005008)			Immediately	$ 11.50
23	W10129069		Wire Clip		Appelez-nous	-
24	2006342		Gap, Cover Assembly (bottom)		Appelez-nous	-
25	2309472		Hinge (bottom) (freezer Side)		Appelez-nous	-
25	2309471		Hinge (bottom) (refrigerator Side)				$ 116.91
26	WP2302876		Bushing, Adjustable   (Replaces: 2302876)			Immediately	$ 81.65
27	W11721628		Screw 1/4-20 X 5/8   (Replaces: 8533913)			Immediately	$ 13.30
28	WP2209024B		Skirt-grille, Bottom   (Replaces: 2209024B)				$ 152.88
29	W11418227		Extension Arm, Door Closer (right)   (Replaces: 2267192)				$ 107.18
29	W11416733		Extension Arm, Door Closer (left)   (Replaces: 2267193)				$ 72.38
30	W11739149		Grille Bottom, Front   (Replaces: 2325184B)			Immediately	$ 188.17
31	WP8281227		Screw   (Replaces: W10189203)				$ 9.86
33	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 7.56
34	2006617		Bracket, Support Base (rear)		Appelez-nous	-
35	WP2006346		Washer   (Replaces: 2006346)			Immediately	$ 10.58
36	WP2316859		Bushing, Extension Arm   (Replaces: 2316859)			Immediately	$ 48.78
37	WP1163283		Screw   (Replaces: 1163283)				$ 6.80
38	WP2260503B		Button, Filter   (Replaces: 2260503B)				$ 68.78
39	W11457217		Switch, Rocker Arm (freezer Door Side)   (Replaces: 1115373)				$ 36.08
39	W11384469		Switch, Rocker Arm (refrigerator Door Side)   (Replaces: 1118894)			Immediately	$ 35.18
40	2215938		Cover, Switch				$ 85.30
41	WP965173		Screw   (Replaces: 487415)			Immediately	$ 10.68
42	W10741111		Bracket, Switch (right)   (Replaces: 2221097)				$ 60.63
42	2221096		Bracket, Switch (left)				$ 88.07
43	2215612		Cover, Rear		Appelez-nous	-
44	WP8281163		Screw   (Replaces: 8281163)			Immediately	$ 9.63

    View Diagram in Separate Window       Print Part List
