Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10300597 Use & Care Guide (spanish) Appelez-nous -
1 W10300929 Use & Care Guide (english/french) Appelez-nous -
1 W10490725 Energy Guide Appelez-nous -
1 W10321613 Accessory Kit, Water Softener Appelez-nous -
1 W10321621 Instructions, Installation Appelez-nous -
1 W10195613 Tech Sheet/english Appelez-nous -
1 W10195614 Tech Sheet/french Appelez-nous -
2 W11806565 Arm, Hinge (left Hand)   (Replaces: 8534854) In-Stock Immediately $ 142.39

2 W11806608 Arm, Hinge (right Hand)   (Replaces: 8534853) In-Stock Immediately $ 142.24

3 W10850371 Vapor Barrier Assembly   (Replaces: W10321447) In-Stock Immediately $ 32.88

4 W10826179 Screw   (Replaces: W10316572) In-Stock Immediately $ 7.55

5 W11763736 Access Panel (black)   (Replaces: W10195777) In-Stock Immediately $ 42.25

6 WPW10195869 Panel, Full Front (includes Items 10 & 16) (stainless)   (Replaces: W10195869) Special Order $ 391.97

7 WPW10307614 Screw   (Replaces: W10307614) In-Stock Immediately $ 7.55

8 WP302868 Screw (black)   (Replaces: 302868) In-Stock Immediately $ 8.18

9 W10195738 Handle Assembly (includes Item 7) (stainless) Appelez-nous -
10 W11157086 Stud, Mounting   (Replaces: W10195726) In-Stock Immediately $ 8.87

11 W10831329 Insulation, Toe Panel   (Replaces: W10385107) In-Stock Immediately $ 43.30

12 W10831329 Insulation, Three Layer   (Replaces: W10350437) In-Stock Immediately $ 43.30

13 WP489069 Screw   (Replaces: 304392) In-Stock Immediately $ 8.40

14 W11116870 Bracket, Control Panel   (Replaces: W10194911) Special Order $ 89.95

15 WP3400071 Screw   (Replaces: 3400071) Special Order $ 8.26

16 WPW10243391 Nameplate (stainless)   (Replaces: W10243391) Special Order $ 58.31

17 W11126003 Insulation, Front Panel   (Replaces: W10315897) In-Stock Immediately $ 65.25

18 W10457051 Window, Display Special Order $ 67.21

19 W10871196 Toe Panel (black)   (Replaces: 8558252) Special Order $ 174.04

20 WP8269016 Clip, Ground   (Replaces: 8269016) Special Order $ 11.21


    View Diagram in Separate Window     Print Icon   Print Part List

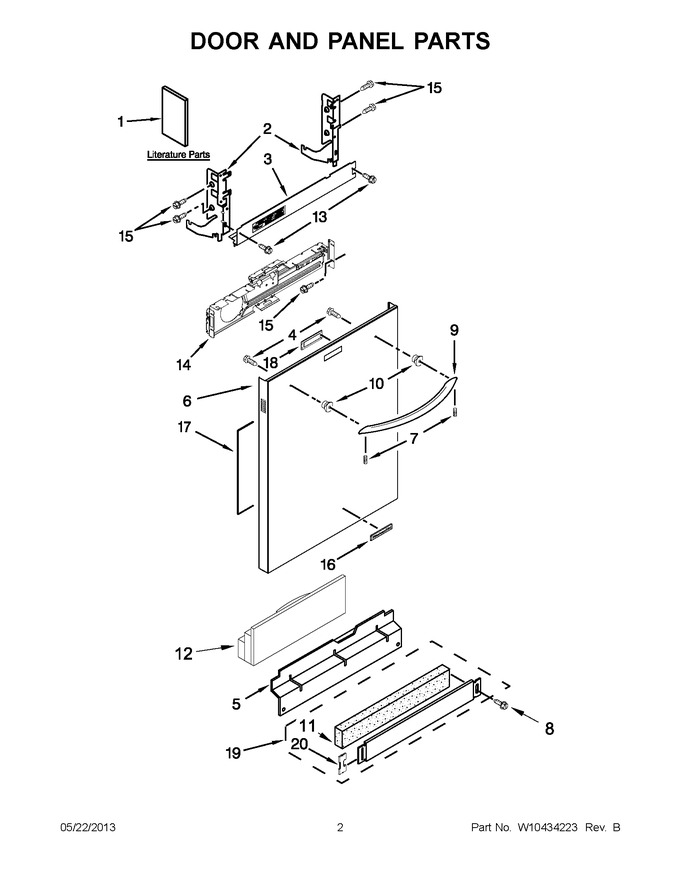

Diagram for KUDE60SXSS2
