SELECT A DIAGRAM

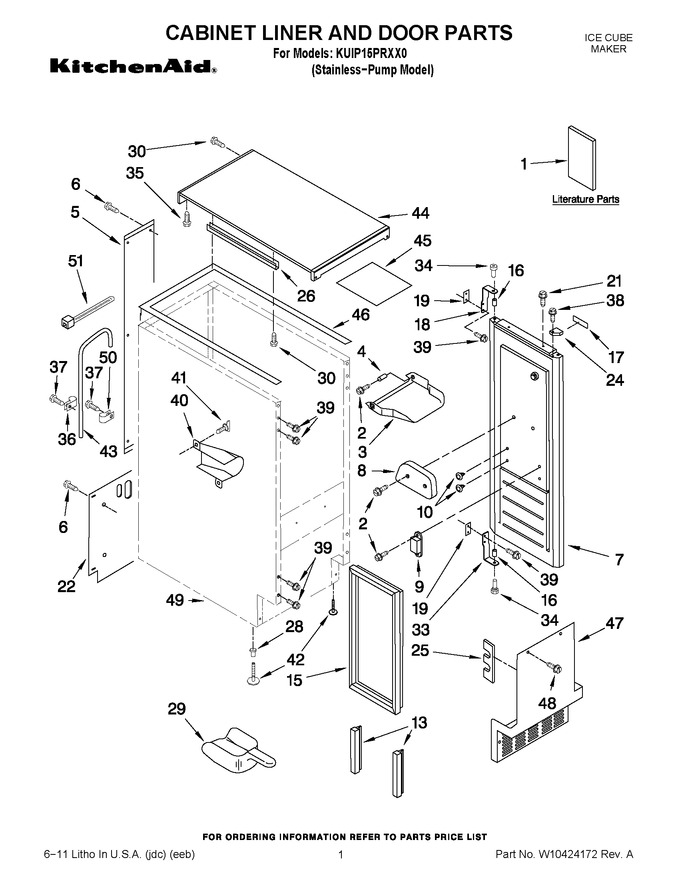

01 - Cabinet Liner And Door Parts


02 - Evaporator, Ice Cutter Grid And Water Parts


03 - Pump Parts


04 - Control Panel Parts


05 - Unit Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10340960		Use & Care Guide		Appelez-nous	-
1	W10206442		Service & Wiring Sheet		Appelez-nous	-
2	3400886		Screw 8-18 X 1 1/4				$ 5.65
3	2185742		Bin, Door		Appelez-nous	-
4	2185678		Spacer				$ 11.03
5	2217394		Cover, Wiring		Appelez-nous	-
6	WP489442		Screw   (Replaces: 489442)			Immediately	$ 11.49
7	W10320412		Door		Appelez-nous	-
8	2185695		Cam, Door				$ 95.66
9	W11223751		Assembly, Magnetic Catch   (Replaces: 2217393)				$ 62.40
10	WP2151652		Plug, Hole   (Replaces: 2151652)				$ 22.87
13	2217367		Gasket, Bottom		Appelez-nous	-
15	WP2217294		Gasket, Door   (Replaces: 2217294)				$ 285.98
16	2185640		Sleeve, Hinge		Appelez-nous	-
17	WPW10243391		Nameplate (optional)   (Replaces: W10243391)				$ 58.31
18	W10136166		Hinge, Top		Appelez-nous	-
19	2185709		Shim, Hinge		Appelez-nous	-
21	8281186		Screw		Appelez-nous	-
22	WPW10136199		Assembly, Unit Cover   (Replaces: W10136199)				$ 108.85
24	2185655B		Filler, Endcap (left Side)		Appelez-nous	-
24	2185656B		Filler, Endcap (right Side)		Appelez-nous	-
25	W10532250		Pad, Foam   (Replaces: 2185756)		Appelez-nous	-
26	2185691		Channel, Wiring		Appelez-nous	-
28	3400240		Nut, Leg Leveler		Appelez-nous	-
29	W11420408		Scoop   (Replaces: 585158)				$ 28.61
30	WP3400884		Screw 8-18 X 5/8   (Replaces: 3400884)				$ 8.10
33	W10136164		Hinge, Bottom		Appelez-nous	-
34	2185712		Pin, Hinge				$ 49.37
35	WP250830		Screw, Ground 8-32 X 1/2   (Replaces: 489048)				$ 8.78
36	WP2208367		Clamp   (Replaces: 2208367)				$ 73.20
37	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
38	348689		Screw 8-18 X 3/4				$ 78.07
39	WP489483		Screw   (Replaces: 489420)				$ 11.41
40	2185927		Holder, Scoop				$ 89.07
41	8281228		Thumbscrew		Appelez-nous	-
42	8193716		Leg, Leveler (4)   (Replaces: 3374849)			Immediately	$ 88.96
43	WPW10217906		Tube, Air Vent   (Replaces: W10217906)				$ 125.83
44	W10320111		Top		Appelez-nous	-
45	2185690		Shield, Electrical		Appelez-nous	-
46	W11624957		Gasket, Top Panel   (Replaces: 2217293)		Appelez-nous	-
47	WP2185571B		Grill, Front   (Replaces: 2185571B)				$ 241.63
48	WP489474		Screw 8-18 X 1   (Replaces: 489474)			Immediately	$ 8.55
49	N/P		Cabinet & Liner (not Serviced)		Appelez-nous	-
50	W10861184		Clamp   (Replaces: 489505)				$ 65.90
51	WPW10339879		Strap   (Replaces: 2155774)				$ 8.30

    View Diagram in Separate Window       Print Part List
