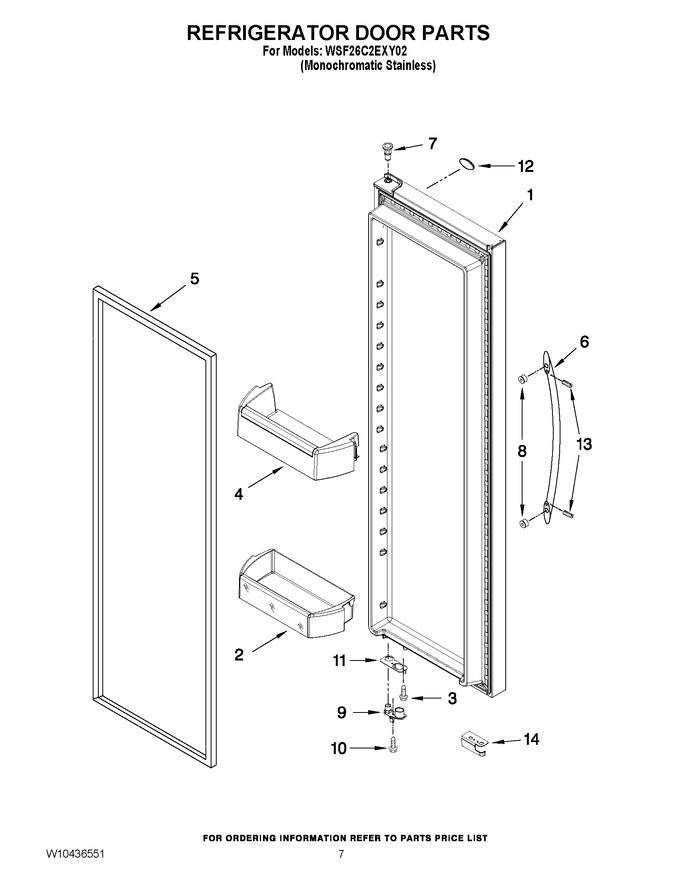

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10365615 | Refrigerator Door (includes Item 5) (mono Stainless) |
|
- | |||||
| 2 | WPW10321304 | Door Bin (Replaces: W10321304) |
|
Immediately | $ 40.46 | ||||
| 3 | WPW10296816 | Screw (Replaces: W10296816) |
|
$ 7.25 | |||||
| 4 | WPW10296855 | Door Bin, Shallow (Replaces: W10296855) |
|
$ 71.24 | |||||
| 5 | W10355582 | Door Gasket, Magnetic (Replaces: W10249916) |
|
Immediately | $ 307.13 | ||||
| 6 | WPW10670421 | Handle (Replaces: W10274730) |
|
$ 228.74 | |||||
| 7 | WP2182181 | Thimble-top (Replaces: 2200087) |
|
$ 7.34 | |||||
| 8 | WPW10170540 | Stud, Handle (Replaces: W10170540) |
|
Immediately | $ 8.69 | ||||
| 9 | WPW10257203 | Door Closer, Upper Cam (Replaces: W10257203) |
|
$ 11.66 | |||||
| 10 | WPW10296804 | Screw (Replaces: W10296804) |
|
$ 10.25 | |||||
| 11 | W11037957 | Bracket, Door Stop (chrome) (Replaces: W10247909) |
|
$ 72.22 | |||||
| 12 | WP2213265 | Nameplate (Replaces: 2255121) |
|
Immediately | $ 83.86 | ||||
| 13 | W11366418 | Set Screw (Replaces: W10010140) |
|
Immediately | $ 16.59 | ||||
| 14 | W11661847 | Cover, Door Stop (Replaces: W10257218) |
|
Immediately | $ 28.54 |
