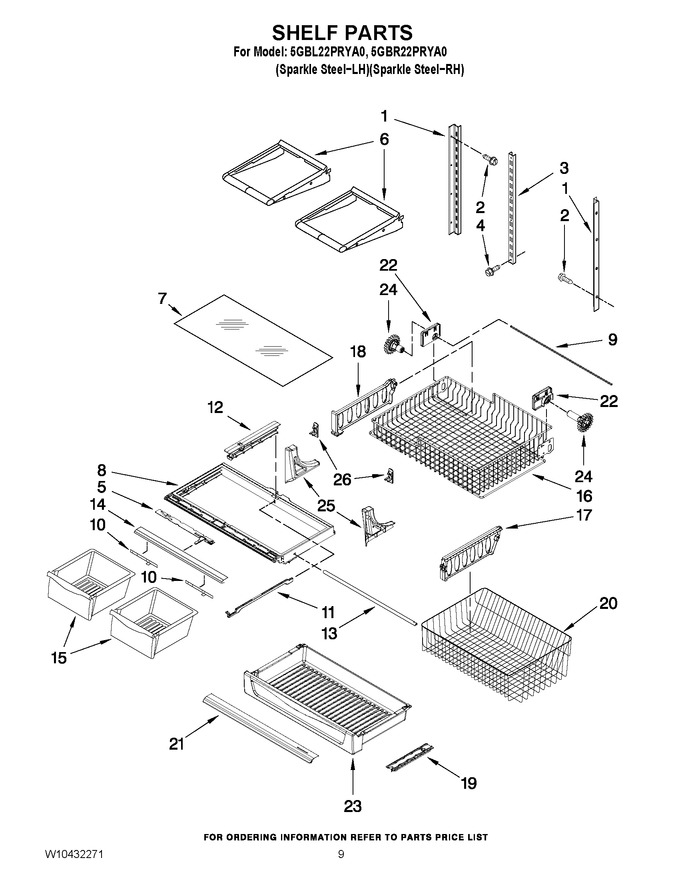

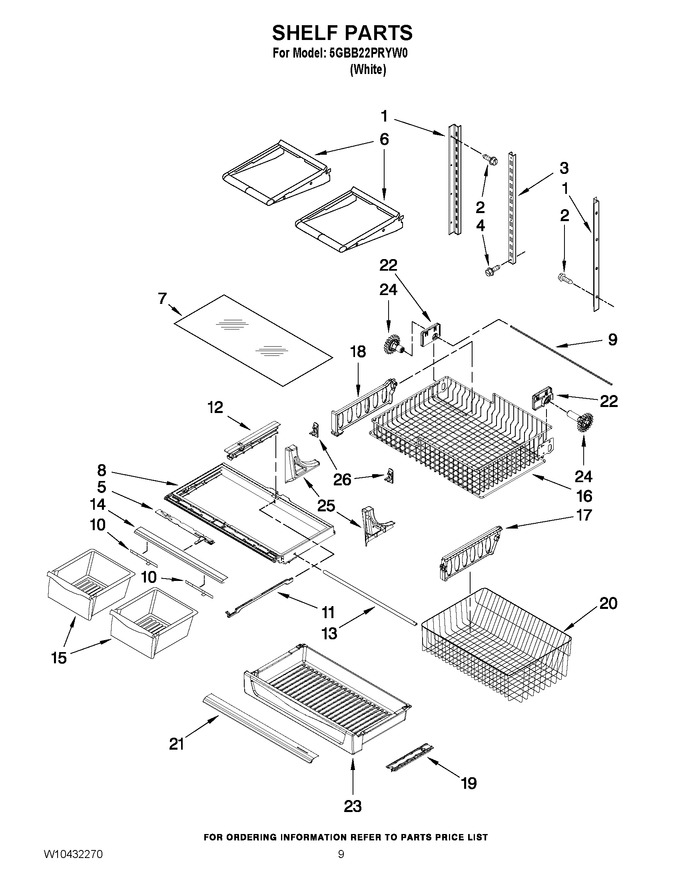

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10251969 | Ladder, Side |
|
$ 31.44 | |||||
| 2 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 7.30 | ||||
| 3 | W10273463 | Ladder, Center |
|
$ 29.61 | |||||
| 4 | W10215666 | Screw (2) |
|
$ 9.53 | |||||
| 5 | 12531502N | Slide-pantry |
|
- | |||||
| 6 | W11402521 | Shelf(4) (Replaces: 12463310) |
|
$ 231.58 | |||||
| 7 | WP67006878 | Glass, Crisper (Replaces: 12204822N) |
|
Immediately | $ 185.19 | ||||
| 8 | WPW10568041 | Frame, Crisper (Replaces: 12530401SP) |
|
Immediately | $ 137.23 | ||||
| 9 | W10802339 | Shaft-rack (Replaces: 12812905WD) |
|
$ 104.17 | |||||
| 10 | WP67005864 | Slide, Humidity (Replaces: 12530805SP) |
|
Immediately | $ 8.20 | ||||
| 11 | 12531401N | Bar-pantry |
|
- | |||||
| 12 | WPW10671238 | Rail, Center Crisper (Replaces: 12530701N) |
|
Immediately | $ 118.46 | ||||
| 13 | WP12227303WD | Brace, Crisper Frame (Replaces: 12227303WD) |
|
$ 111.25 | |||||
| 14 | W10231341 | Trim, Crisper |
|
$ 50.13 | |||||
| 15 | WP67002633 | Pan, Crisper (2) (Replaces: 12530505) |
|
Immediately | $ 149.12 | ||||
| 16 | W10348238 | Basket, Upper (Replaces: W10169950) |
|
$ 228.13 | |||||
| 17 | W10847995 | Divider, Lower (Replaces: W10146440) |
|
$ 92.48 | |||||
| 18 | W10241046 | Divider, Upper Basket |
|
Immediately | $ 29.19 | ||||
| 19 | WP67001719 | Track, Deli (Replaces: 12531901) |
|
Immediately | $ 8.99 | ||||
| 20 | WPW10503183 | Basket, Freezer (lower) (Replaces: W10150038) |
|
Immediately | $ 249.35 | ||||
| 21 | W10656985 | Trim, Pantry (Replaces: W10231333) |
|
$ 137.68 | |||||
| 22 | W10348259 | Mount-gear (left) |
|
$ 89.87 | |||||
| 22 | W10348260 | Mount-gear (right) |
|
$ 89.90 | |||||
| 23 | WPW10328329 | Pan-pantry (Replaces: W10328329) |
|
$ 162.16 | |||||
| 24 | WPW10474716 | Gear (right) (Replaces: W10158749) |
|
Immediately | $ 32.42 | ||||
| 24 | WPW10474715 | Gear (left) (Replaces: W10146446) |
|
Immediately | $ 32.76 | ||||
| 25 | WP67001721 | Support-left (Replaces: 12531001) |
|
Immediately | $ 8.70 | ||||
| 25 | WP67001722 | Support-right (Replaces: 12531002) |
|
Immediately | $ 8.93 | ||||
| 26 | WP67001716 | Hook, Ladder (Replaces: 12531802) |
|
Immediately | $ 11.14 |
