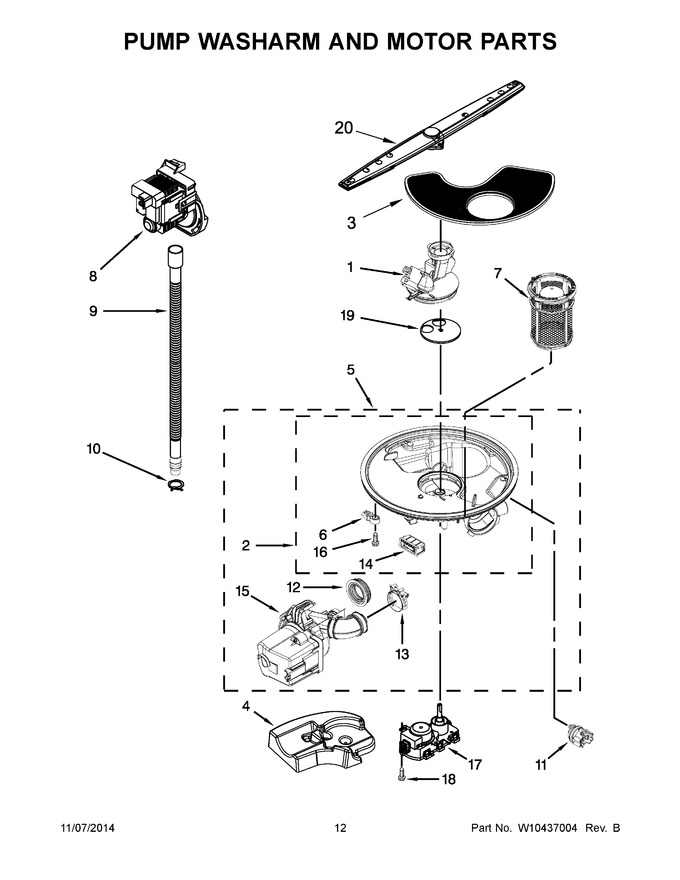

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10463895 | Cover, Outlet (Replaces: W10315329) |
|
$ 26.46 | |||||
| 2 | WPW10195643 | Sump With Seal (Replaces: W10195643) |
|
$ 263.84 | |||||
| 3 | WPW10354786 | Screen (Replaces: W10354786) |
|
$ 47.56 | |||||
| 4 | W10350335 | Damper, Sump Assembly (Replaces: W10300776) |
|
$ 84.87 | |||||
| 5 | WPW10605058 | Sump & Motor Assembly (Replaces: W10300748) |
|
Immediately | $ 359.71 | ||||
| 6 | WPW10372113 | Tab, Sump (Replaces: 8579289) |
|
Immediately | $ 26.42 | ||||
| 7 | W10872845 | Filter Cup, Assembly (Replaces: W10300746) |
|
Immediately | $ 49.57 | ||||
| 8 | WPW10348269 | Pump, Drain (Replaces: 8558995) |
|
Immediately | $ 87.71 | ||||
| 9 | 8269144A | Hose, Drain (Replaces: 8269144) |
|
Immediately | $ 26.14 | ||||
| 10 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 7.67 | ||||
| 11 | WPW10705575 | Indicator, Optical Wash (Replaces: W10134017) |
|
Immediately | $ 39.43 | ||||
| 12 | WPW10538166 | Grommet (Replaces: W10195068) |
|
Immediately | $ 39.93 | ||||
| 13 | W10488094 | Clamp, Hose (Replaces: W10169166) |
|
$ 80.39 | |||||
| 14 | W11243394 | Motor, Isolator (Replaces: W10195086) |
|
$ 13.11 | |||||
| 15 | W11032770 | Motor (Replaces: W10349483) |
|
Immediately | $ 281.30 | ||||
| 16 | WPW10348407 | Screw (Replaces: W10348407) |
|
$ 7.25 | |||||
| 17 | W10537869 | Motor, Diverter Valve (Replaces: W10195076) |
|
Immediately | $ 102.92 | ||||
| 18 | WP9741232 | Screw (Replaces: 9741232) |
|
Immediately | $ 4.56 | ||||
| 19 | W10195074 | Disc-valve Diverter |
|
$ 23.68 | |||||
| 20 | WPW10340527 | Sprayarm, Lower (Replaces: W10340527) |
|
Immediately | $ 55.58 |
