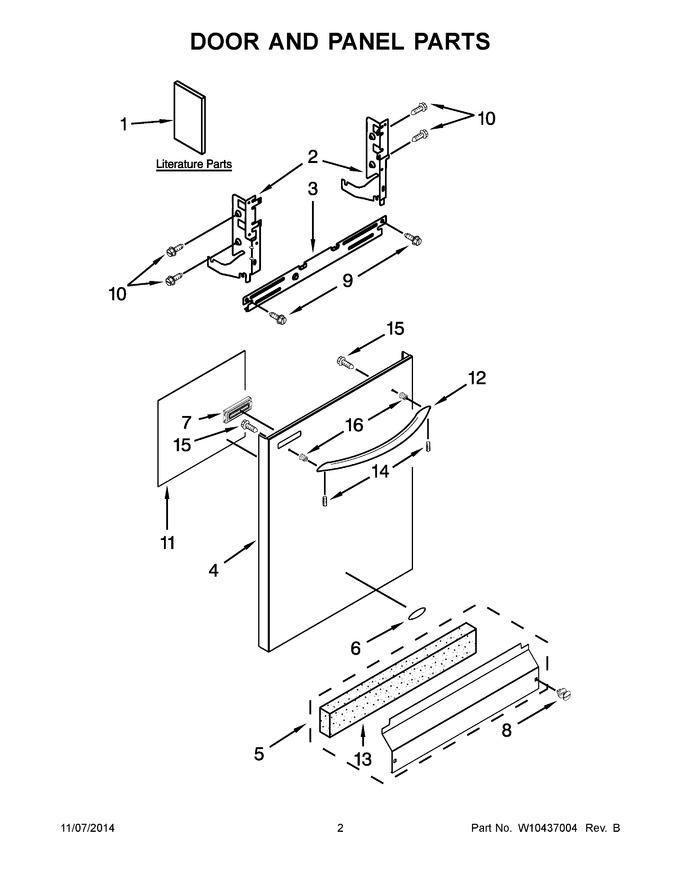

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10350361 | Instructions, Installation |
|
- | |||||
| 2 | W11806565 | Arm, Hinge (left Hand) (Replaces: 8534854) |
|
Immediately | $ 142.39 | ||||
| 3 | W10331928 | Stiffener, Door |
|
- | |||||
| 4 | W10350168 | Panel Front (includes 6,7, 15 & 16) (white) |
|
$ 148.37 | |||||
| 5 | W10827631 | Access Panel (black) (Replaces: W10369023) |
|
Immediately | $ 195.64 | ||||
| 6 | W11178521 | Nameplate (white) (Replaces: W10387117) |
|
Immediately | $ 63.13 | ||||
| 7 | W10300670 | Vent (white) |
|
- | |||||
| 8 | WPW10503548 | Fastener (black) (Replaces: W10331789) |
|
Immediately | $ 30.39 | ||||
| 9 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 8.40 | ||||
| 10 | WPW10109200 | Screw (Replaces: 489470) |
|
Immediately | $ 8.80 | ||||
| 11 | W11126003 | Insulation, Front Panel (Replaces: W10315897) |
|
Immediately | $ 65.25 | ||||
| 12 | W10873052 | Handle (white) (Replaces: W10330974) |
|
$ 171.23 | |||||
| 13 | W10831329 | Insulation, Toe Panel (Replaces: W10300769) |
|
Immediately | $ 43.30 | ||||
| 14 | WP8534008 | Screw, Set (Replaces: 8534008) |
|
$ 9.37 | |||||
| 15 | W10826179 | Screw (Replaces: W10316572) |
|
Immediately | $ 7.55 | ||||
| 16 | W11157086 | Stud, Mounting (Replaces: W10195726) |
|
Immediately | $ 8.87 | ||||
| 12A | W10330976 | Handle (stainless) |
|
- | |||||
| 1A | W10350360 | Use & Care Guide, Spanish |
|
- | |||||
| 1B | W10380337 | Tech Sheet (spanish) |
|
- | |||||
| 2A | W11806608 | Arm, Hinge (right Hand) (Replaces: 8534853) |
|
Immediately | $ 142.24 | ||||
| 4A | W10350170 | Panel Front (includes 6,7, 15 & 16) (stainless) |
|
$ 165.67 | |||||
| 5A | W10827632 | Access Panel (white) (Replaces: W10369025) |
|
Immediately | $ 163.70 | ||||
| 8A | WPW10503549 | Fastener (white) (Replaces: W10331793) |
|
Immediately | $ 7.77 |
