Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10193491 Refrigerator Door (includes No.9) Appelez-nous -
3 W11724512 Hinge Assembly, Top   (Replaces: 2266854) Special Order $ 312.50

4 W11673500 Spacer-door, Top & Bottom   (Replaces: 2316804) In-Stock Immediately $ 108.07

5 W11474472 Screw   (Replaces: W10162602) In-Stock Immediately $ 8.63

6 2302878 Hinge Assembly, Bottom In-Stock Immediately $ 91.01

7 W11348580 Rail, Lid   (Replaces: 2222797) In-Stock Immediately $ 162.13

8 W11348580 Gasket, Utility Bin   (Replaces: 2222983) In-Stock Immediately $ 162.13

9 WP2266903 Door Gasket, Magnetic   (Replaces: 2222812) In-Stock Immediately $ 340.02

11 2316842W Handle, Door (white) Appelez-nous -
11 2316842S Handle, Door (stainless Steel) Special Order $ 224.10

11 2316842B Handle, Door (black) Appelez-nous -
13 2001230 Washer Special Order $ 12.34

15 W10825422 Screw, 8-15 X .500   (Replaces: 8281251) Special Order $ 11.36

16 2005841 Trim, Door (top) (black) Appelez-nous -
16 2005015 Trim, Door (top) (white) Appelez-nous -
16 2005018 Trim-door, Top (brushed Aluminum) Appelez-nous -
18 2005971 Trim-door, Side (black) Appelez-nous -
18 2005969 Trim-door, Side (brushed Aluminum) Appelez-nous -
18 2005968 Trim-door, Side (white) Appelez-nous -
19 2215995S Trim-door, Bottom (stainless Steel) Appelez-nous -
19 2215995B Trim-door, Bottom (black) Appelez-nous -
19 2215995W Trim-door, Bottom (white) Appelez-nous -
20 WPW10323173 End Cap (left Side)   (Replaces: 2222920) Special Order $ 8.60

20 WPW10323172 End Cap (right Side)   (Replaces: 2222919) Special Order $ 8.60

21 W11348580 Bin, Utility Center   (Replaces: 2222923) In-Stock Immediately $ 162.13

22 W11348580 Door, Utility Bin   (Replaces: 2257617) In-Stock Immediately $ 162.13

23 W11752086 Bin, Door   (Replaces: 2222774) Special Order $ 68.19

24 W10323748 Bin, Door   (Replaces: 2222771) Special Order $ 121.78

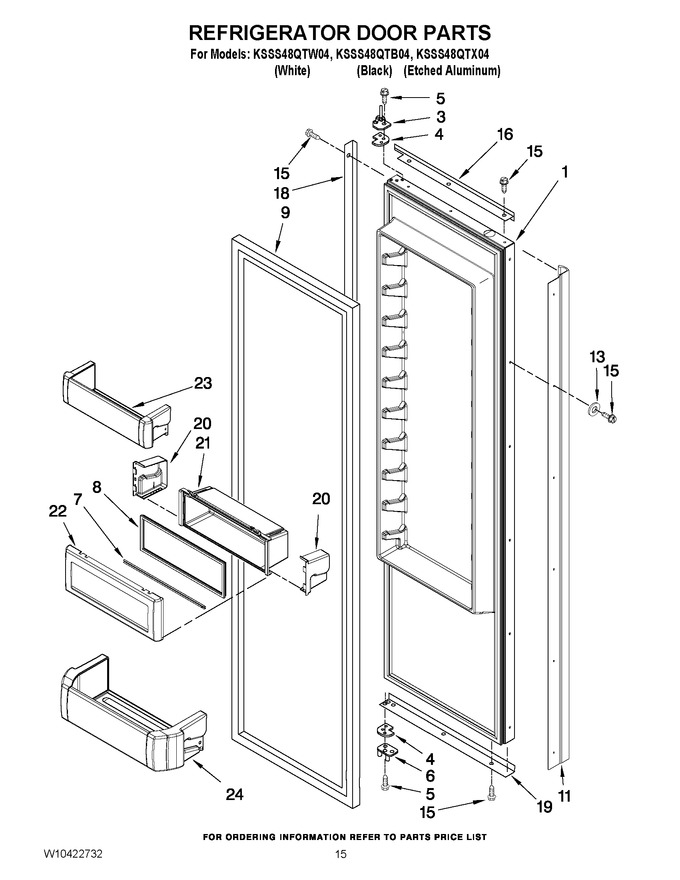

    View Diagram in Separate Window     Print Icon   Print Part List
