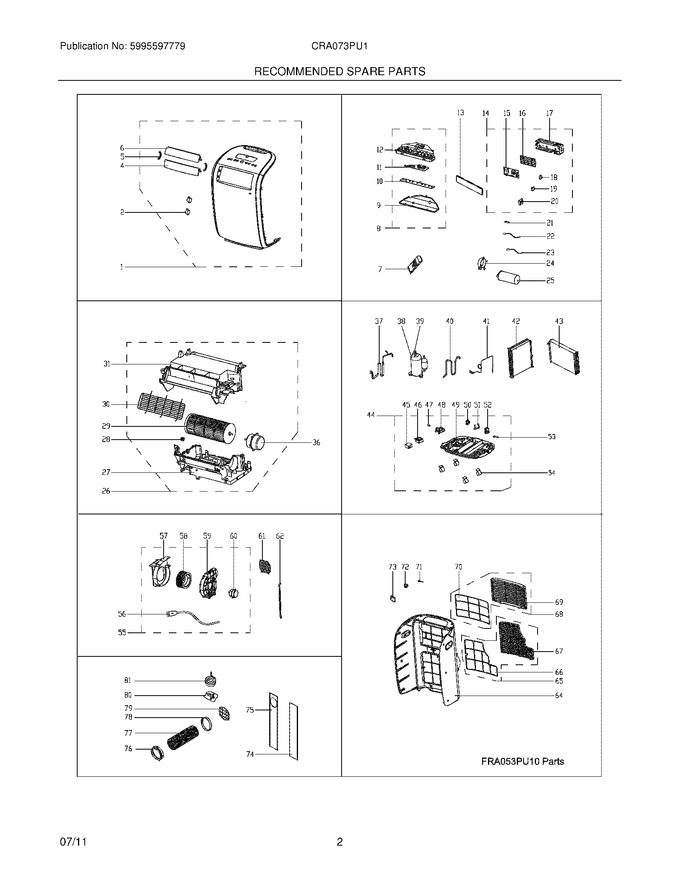

03 - Recommended Spare Parts
04 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 9 | 5304484393 | Display Box,housing |
|
- | |||||
| 12 | 5304484396 | Cover,control Panel |
|
- | |||||
| 13 | 5304484397 | Cover,control Box |
|
- | |||||
| 16 | 5304484400 | Bracket,pc Board Mount |
|
- | |||||
| 17 | 5304484401 | Control Box |
|
- | |||||
| 24 | 5304482115 | Strap,capacitor Clamp |
|
- | |||||
| 27 | 5304484408 | Base,indoor Scroll |
|
- | |||||
| 28 | 5304473990 | Bearing Block,housing |
|
- | |||||
| 30 | 5304484410 | Grille,air Vent Cover |
|
- | |||||
| 31 | 5304484411 | Scroll,indoor Blower ,top |
|
- | |||||
| 46 | 5304474020 | · Housing,float |
|
- | |||||
| 48 | 5304484421 | Bracket,switch Holder |
|
- | |||||
| 49 | 5304484422 | Base,unit Chassis |
|
- | |||||
| 51 | 5304484424 | Bracket,slinger Motor |
|
- | |||||
| 53 | 5304473999 | · Plug,drain Spigot |
|
$ 13.01 | |||||
| 54 | 5304474031 | · Caster,roller ,(4) |
|
- | |||||
| 57 | 5304484428 | Cover,scroll ,outdoor Blower |
|
- | |||||
| 59 | 5304484429 | Scroll,outdoor Blower |
|
- | |||||
| 61 | 5304484430 | Screen,exhaust Vent |
|
- | |||||
| 62 | 5304484431 | Bar,support |
|
- | |||||
| 64 | 5304484432 | Panel,cabinet Back ,rear |
|
- | |||||
| 67 | 5304484435 | Grille,intake ,upper ,indoor |
|
- | |||||
| 69 | 5304484437 | Grille,air Intake ,indoor |
|
- | |||||
| 71 | 5304479260 | Plug,drain ,chassis/base |
|
$ 15.18 | |||||
| 72 | 5304474000 | Connector,drain Hose ,threaded |
|
$ 16.80 | |||||
| 73 | 5304484439 | Door,storage ,power Cord |
|
- | |||||
| 74 | 5304484440 | Window Slider-1,no Hole |
|
$ 110.88 | |||||
| 75 | 5304484441 | Window Slider-2,with Hole |
|
$ 116.66 | |||||
| 79 | 5304479275 | Screen,exhaust Hose |
|
$ 88.60 | |||||
| 80 | 5304484442 | Installation Kit,mtg. Hardware |
|
$ 14.96 | |||||
| 81 | 5304472211 | Seal Kit,foam ,sash Filler |
|
$ 36.12 | |||||
| F1 | 5304484387 | Front Assembly,complete Panel |
|
- | |||||
| F10 | 5304484394 | Touch Control,pushbutton |
|
- | |||||
| F11 | 5304484395 | Pc Board,display/input |
|
- | |||||
| F14 | 5304484398 | Control Box Assembly |
|
- | |||||
| F15 | 5304484399 | Pc Board,main ,control/power |
|
- | |||||
| F18 | 5304484402 | Capacitor,motor ,outdoor Blower |
|
- | |||||
| F19 | 5304484403 | Capacitor,motor ,indoor Blower |
|
- | |||||
| F2 | 5304484388 | Motor,louver |
|
- | |||||
| F20 | 5304484404 | Transformer |
|
- | |||||
| F21 | 5304484405 | Receiver,remote Signal |
|
- | |||||
| F22 | 5304484406 | Sensor,evaporator Temp ,defrost |
|
- | |||||
| F23 | 5304483216 | Sensor,temperature ,indoor |
|
- | |||||
| F25 | 5304473968 | · Capacitor,compressor |
|
- | |||||
| F26 | 5304484407 | Scroll Assembly,indoor Blower |
|
- | |||||
| F29 | 5304484409 | Blower Wheel,indoor Fan |
|
$ 69.88 | |||||
| F36 | 5304484412 | Motor,indoor Blower |
|
- | |||||
| F37 | 5304484443 | Tube,discharge |
|
- | |||||
| F38 | 5304475743 | Compressor,with Overload |
|
- | |||||
| F39 | 5304476299 | Overload Protector,compressor |
|
- | |||||
| F4 | 5304484389 | Louver,horizontal ,lower |
|
- | |||||
| F40 | 5304484444 | Tube,suction |
|
- | |||||
| F41 | 5304484445 | Tube,capillary |
|
- | |||||
| F42 | 5304484446 | Condenser |
|
- | |||||
| F43 | 5304484447 | Evaporator |
|
- | |||||
| F44 | 5304484419 | Base Assembly,chassis |
|
- | |||||
| F45 | 5304474023 | · Float,bobber |
|
- | |||||
| F47 | 5304484420 | Microswitch,upper ,overflow |
|
- | |||||
| F5 | 5304484390 | Link,louver |
|
- | |||||
| F50 | 5304484423 | Slinger,water Wheel ,condensate |
|
- | |||||
| F52 | 5304484425 | Motor,slinger |
|
- | |||||
| F55 | 5304484426 | Scroll Assembly,outdoor Blower |
|
- | |||||
| F56 | 5304484427 | Power Cord,electric ,lcdi |
|
- | |||||
| F58 | 5304479262 | · Blower Wheel,outdoor Fan |
|
- | |||||
| F6 | 5304484391 | Louver,horizontal ,upper |
|
- | |||||
| F60 | 5304484386 | Motor,outdoor Fan |
|
- | |||||
| F65 | 5304484433 | Air Intake Assembly,outdoor |
|
- | |||||
| F66 | 5304484434 | Filter-c,air Intake ,outdoor |
|
- | |||||
| F68 | 5304484436 | Air Intake Assembly,indoor |
|
- | |||||
| F7 | 5304479164 | Remote Control,transmitter |
|
- | |||||
| F70 | 5304484438 | Filter-a,air Intake ,indoor |
|
- | |||||
| F76 | 5304479114 | Adapter A,hose-to-unit |
|
$ 31.08 | |||||
| F77 | 4056015342 | Hose,exhaust (Replaces: 5304479273) |
|
- | |||||
| F78 | 5304538651 | Adapter B,hose-to-window (Replaces: 5304479274) |
|
- | |||||
| F8 | 5304484392 | Console Assembly,control |
|
- |
