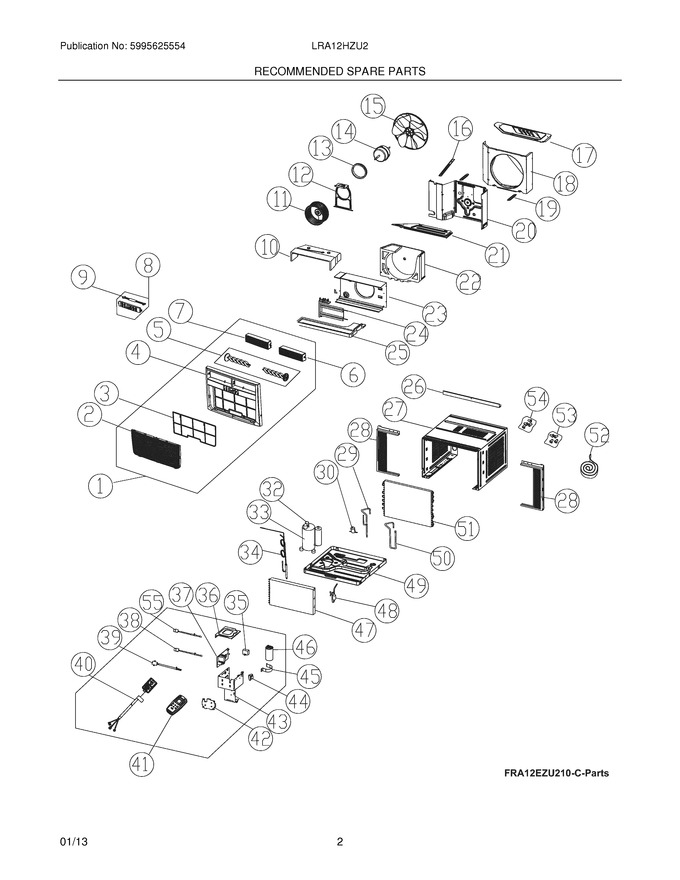

03 - Recommended Spare Parts
04 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5304483223 | Panel,front |
|
- | |||||
| 4 | 5304483225 | · Frame,front Assembly |
|
- | |||||
| 10 | 5304483210 | Cover,scroll ,top |
|
- | |||||
| 12 | 5304471285 | Bracket,support ,fan Motor |
|
- | |||||
| 13 | 5304471286 | Washer,motor Mount ,anti-vibe |
|
- | |||||
| 16 | 5304471254 | Brace,bulkhead ,large ,connector |
|
- | |||||
| 17 | 5304471288 | Cover,condenser/fan ,rear |
|
- | |||||
| 18 | 5304483211 | Bulkhead,partition ,rear |
|
- | |||||
| 19 | 5304471253 | Brace,bulkhead ,small ,connector |
|
- | |||||
| 20 | 5304487602 | Bulkhead,partition ,front |
|
- | |||||
| 21 | 5304476388 | Cover,blower ,front |
|
- | |||||
| 22 | 5304471301 | Scroll,blower Housing ,rear |
|
- | |||||
| 23 | 5304487603 | Scroll,blower Housing ,front |
|
- | |||||
| 25 | 5304471265 | Tray,drip Pan |
|
- | |||||
| 26 | 5304482525 | Rail,shutter Track ,top Channel |
|
- | |||||
| 27 | 5304487606 | Cabinet,wrapper/sleeve |
|
- | |||||
| 28 | 5304471252 | Window Filler Kit,slider Panels |
|
- | |||||
| 36 | 5304483214 | Cover, Electric Part Box |
|
- | |||||
| 42 | 5304487610 | Cover,display Board |
|
- | |||||
| 43 | 5304483218 | Control Box |
|
- | |||||
| 45 | 5304476400 | Strap,capacitor Clamp |
|
- | |||||
| 49 | 5304476402 | Base,unit Chassis |
|
- | |||||
| 52 | 5304471258 | Seal Kit,window ,foam Strips |
|
- | |||||
| 53 | 5304471257 | Hardware Kit,installation |
|
- | |||||
| 54 | 5304471256 | Screw Kit,top Rail Mount |
|
- | |||||
| F1 | 5304483222 | Front Assembly,complete Panel |
|
- | |||||
| F11 | 5304471312 | Blower Wheel,centrifugal Fan |
|
- | |||||
| F14 | 5304483231 | Motor,fan |
|
- | |||||
| F15 | 5304517031 | Fan Blade (Replaces: 5304471287) |
|
- | |||||
| F24 | 5304521227 | Heater,electric (Replaces: 5304476390) |
|
- | |||||
| F29 | 5304476394 | Tube,suction |
|
- | |||||
| F3 | 5304483224 | Filter,air |
|
- | |||||
| F30 | 5304476323 | Valve,drain |
|
- | |||||
| F32 | 5304476298 | Overload Protector,compressor |
|
- | |||||
| F33 | 5304475747 | Compressor,with Overload |
|
- | |||||
| F34 | 5304487617 | Tube,capillary |
|
- | |||||
| F35 | 5304512430 | Capacitor,fan Motor (Replaces: 5304471077) |
|
- | |||||
| F37 | 5304483232 | Pc Board,control ,main |
|
- | |||||
| F38 | 5304471276 | Sensor,temperature ,indoor |
|
$ 33.88 | |||||
| F39 | 5304512375 | Sensor,temperature ,evaporator (Replaces: 5304471383) |
|
$ 33.16 | |||||
| F40 | 5304476247 | Power Cord,electric ,lcdi |
|
- | |||||
| F41 | 5304483073 | Remote Control, Transmitter |
|
- | |||||
| F44 | 5304535831 | Transformer (Replaces: 5304471063) |
|
- | |||||
| F46 | 5304475748 | Capacitor |
|
- | |||||
| F47 | 5304487618 | Evaporator,w/cap Tube |
|
- | |||||
| F48 | 5304476367 | Drier-filter |
|
$ 45.55 | |||||
| F5 | 5304483226 | Louver,vertical |
|
- | |||||
| F50 | 5304487619 | Tube,discharge |
|
- | |||||
| F51 | 5304484659 | Condenser |
|
- | |||||
| F55 | 5304476316 | Sensor,temperature ,discharge Air ,daht |
|
- | |||||
| F6 | 5304483227 | Louver,horizontal ,right |
|
- | |||||
| F7 | 5304483228 | Louver,horizontal ,left |
|
- | |||||
| F8 | 5304482936 | Pc Board,display/input |
|
- | |||||
| F9 | 5304485996 | · Wire,connector ,pc Boards |
|
- |
