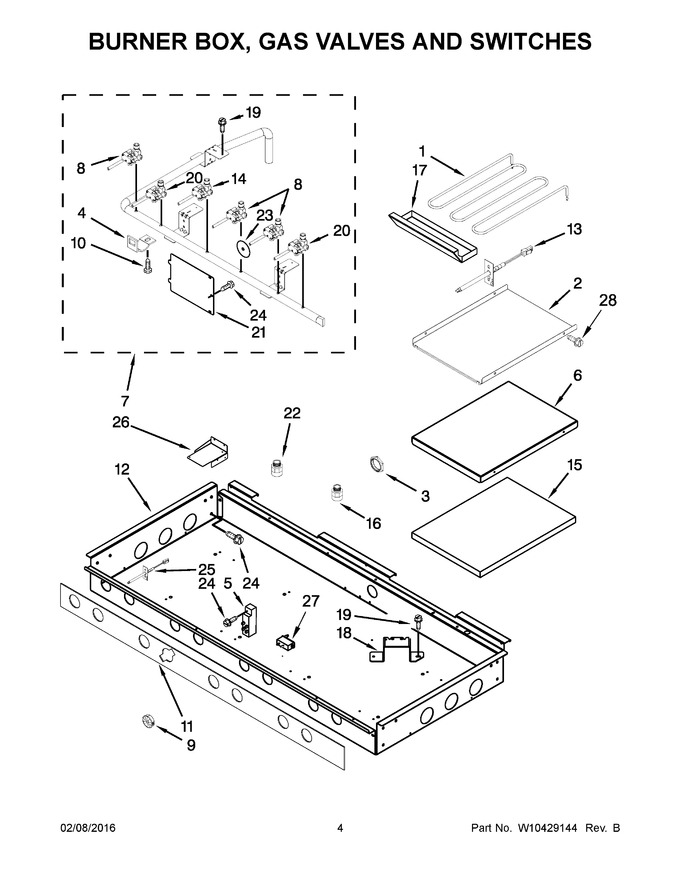

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10138296 | Element, Griddle |
|
- | |||||
| 2 | W10145620 | Tray, Element Griddle |
|
- | |||||
| 3 | W10115953 | Nut, Burner |
|
$ 9.78 | |||||
| 4 | WPW10432260 | Bracket, Valve (Replaces: W10432260) |
|
$ 73.99 | |||||
| 5 | WPW10475147 | Module, Spark (Replaces: W10475147) |
|
Immediately | $ 238.24 | ||||
| 6 | W10246074 | Tray, Griddle Insulation |
|
- | |||||
| 7 | WPW10402608 | Manifold (Replaces: W10402608) |
|
$ 530.44 | |||||
| 8 | WPW10385582 | Valve, Single (Replaces: W10385582) |
|
Immediately | $ 340.85 | ||||
| 9 | W10189097 | Bushing, Burner Box |
|
$ 8.00 | |||||
| 10 | W10189140 | Screw |
|
$ 6.82 | |||||
| 11 | W11688741 | Insulation, Burner Box (Replaces: W10160202) |
|
- | |||||
| 12 | W10371517 | Box, Burner |
|
- | |||||
| 13 | W10319835 | Sensor, Griddle |
|
$ 239.28 | |||||
| 14 | WPW10385583 | Valve, Simmer (Replaces: W10385583) |
|
Immediately | $ 332.10 | ||||
| 15 | W11684995 | Insulation, Griddle (Replaces: W10145621) |
|
- | |||||
| 16 | 4453115 | Adapter, Female |
|
$ 126.70 | |||||
| 17 | W10276497 | Tray, Griddle Drip |
|
$ 404.03 | |||||
| 18 | W10560553 | Bracket, Burner |
|
- | |||||
| 19 | 4450800 | Screw, Grounding |
|
$ 13.47 | |||||
| 20 | WPW10371235 | Valve, Dual (Replaces: W10371235) |
|
Immediately | $ 268.41 | ||||
| 21 | W10115843 | Cover, Ignition |
|
- | |||||
| 22 | 4453116 | Adapter, Male |
|
$ 179.43 | |||||
| 23 | W10189177 | Seal, Switch Cover |
|
$ 10.00 | |||||
| 24 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 25 | WPW10131825 | Sensor (Replaces: W10131825) |
|
Immediately | $ 95.83 | ||||
| 26 | W10498407 | Bracket, Spark Module |
|
$ 78.97 | |||||
| 27 | W11601369 | Reignitor (Replaces: W10116108) |
|
Immediately | $ 67.35 | ||||
| 28 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 7.30 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10367098 | Tube (center Front) |
|
- | |||||
| NI | WPW10367095 | Tube (left Rear) (Replaces: W10367095) |
|
$ 73.98 | |||||
| NI | W10145492 | Tube (center Rear) |
|
- | |||||
| NI | WPW10367099 | Tube (right Rear) (Replaces: W10367099) |
|
$ 74.87 | |||||
| NI | W10367096 | Tube (left Front, Low) |
|
- | |||||
| NI | W10367100 | Tube (right Front, Low) |
|
- | |||||
| NI | W10367097 | Tube (left Front, High) |
|
- | |||||
| NI | W10367101 | Tube (right Front, High) |
|
$ 78.49 |
