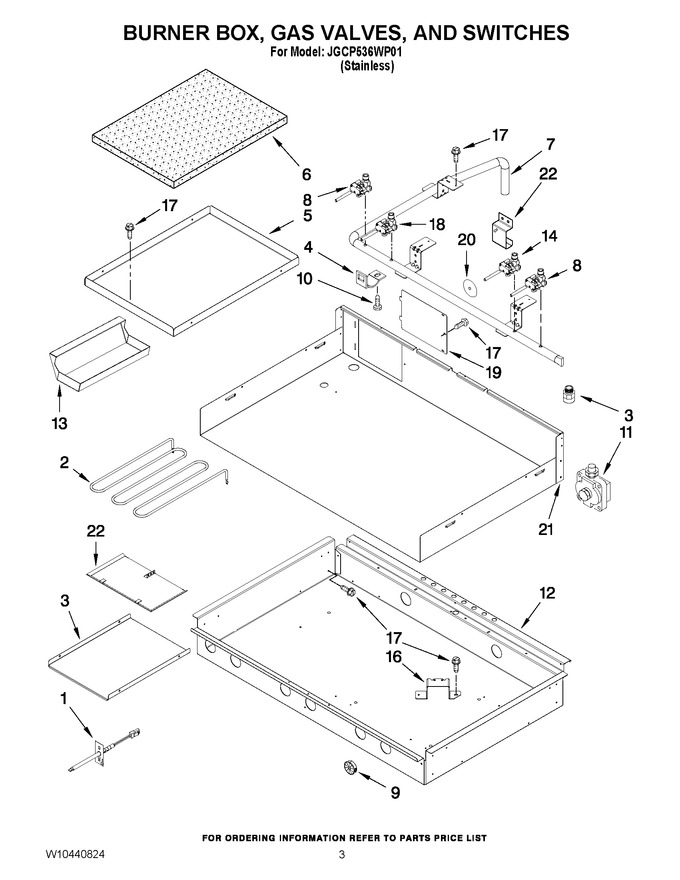

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10319835		Sensor				$ 239.28
2	W10193014		Element, Griddle				$ 323.46
3	W10145620		Tray, Element Griddle		Appelez-nous	-
4	W10189107		Bracket, Valve		Appelez-nous	-
5	W10246074		Tray, Insulation Griddle		Appelez-nous	-
6	W11684995		Insulation, Griddle   (Replaces: W10145621)		Appelez-nous	-
7	W10115985		Manifold		Appelez-nous	-
8	WPW10371235		Valve, Single (lr & Rf)   (Replaces: W10371235)			Immediately	$ 268.41
9	W10189097		Bushing, Burner Box				$ 8.00
10	W10189140		Screw, Valve Mtg				$ 6.82
11	WP9759091		Regulator,pressure   (Replaces: 9759091)			Immediately	$ 340.43
12	W10371516		Burner Box		Appelez-nous	-
13	W10276497		Drip Tray, Griddle				$ 404.03
14	WPW10385583		Valve, Simmer   (Replaces: W10385583)			Immediately	$ 332.10
16	W10189107		Bracket, Burner		Appelez-nous	-
17	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
18	WPW10385582		Valve, Gas (lf)   (Replaces: W10385582)			Immediately	$ 340.85
19	W10115843		Cover, Ignition		Appelez-nous	-
20	W10189177		Seal, Switch Cover				$ 10.00
21	W10189156		Cover, Burner Box		Appelez-nous	-
22	8285790		Bracket, Mounting Orifice				$ 85.85
NI	W10353141		Tube, Frt Right				$ 175.16
NI	W10353154		Tube, Frt Left			Immediately	$ 172.78
NI	W10280797		Tubing, Gas		Appelez-nous	-
NI	W10353152		Tube, Frt Ctr				$ 78.93
NI	WPW10353133		Tube, Back   (Replaces: W10353133)				$ 174.89
