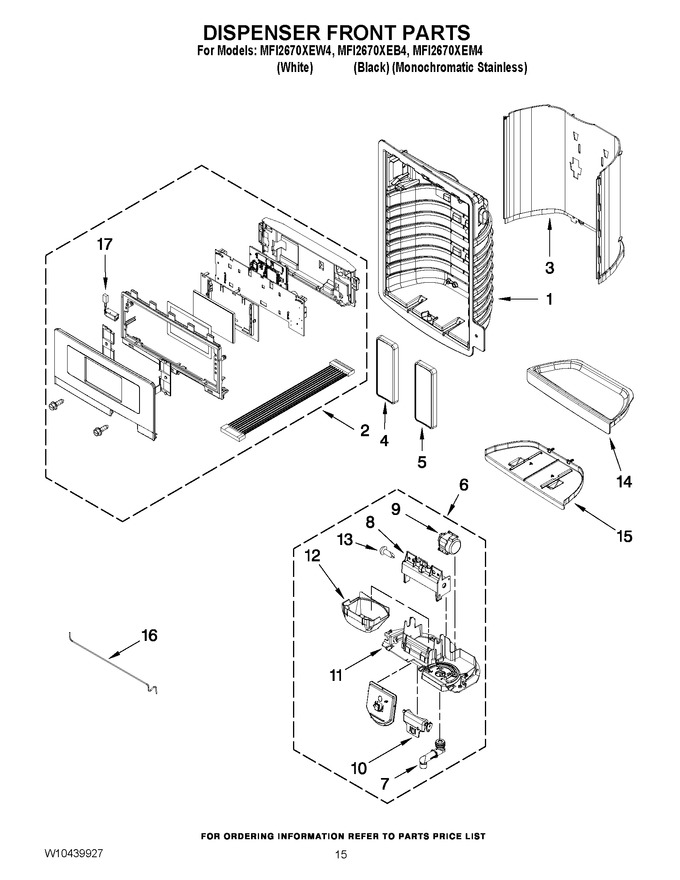

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | W10337912 | Ui Assembly |
|
$ 471.81 | |||||
| 3 | W11045978 | False, Wall, Dispenser (stainless) (Replaces: W10299897) |
|
$ 86.03 | |||||
| 3 | W11045975 | False, Wall, Dispenser (white) (Replaces: W10215699) |
|
- | |||||
| 3 | W11045976 | False, Wall, Dispenser (black) (Replaces: W10233560) |
|
$ 41.12 | |||||
| 4 | W10334789 | Pad, Ice (stainless) |
|
- | |||||
| 4 | WPW10368730 | Pad, Ice (black) (Replaces: W10334792) |
|
Immediately | $ 304.26 | ||||
| 5 | W10334813 | Pad, Water (stainless) |
|
$ 42.69 | |||||
| 5 | WPW10368730 | Pad, Water (black) (Replaces: W10334816) |
|
Immediately | $ 304.26 | ||||
| 6 | WPW10353552 | Separator Assy. (Replaces: W10353552) |
|
$ 166.29 | |||||
| 7 | W11227371 | Spigot (Replaces: 2316647) |
|
$ 129.89 | |||||
| 8 | W10174827 | Bracket, Ice Door |
|
$ 72.78 | |||||
| 9 | WPW10205979 | Motor, Ice Door (Replaces: W10205979) |
|
Immediately | $ 102.48 | ||||
| 10 | WPW10346124 | Support, Ice Door (Replaces: W10346124) |
|
$ 39.86 | |||||
| 11 | W10278987 | Separator |
|
- | |||||
| 12 | WPW10435760 | Guide, Ice (Replaces: W10339578) |
|
$ 22.80 | |||||
| 13 | WP4449745 | Screw (Replaces: 4449745) |
|
$ 7.49 | |||||
| 14 | W11045970 | Tray, Dispenser (white) (Replaces: W10267869) |
|
$ 62.79 | |||||
| 14 | W11192301 | Tray, Dispenser (stainless) (Replaces: W10299895) |
|
$ 62.69 | |||||
| 14 | W11045971 | Tray, Dispenser (black) (Replaces: W10267870) |
|
$ 62.76 | |||||
| 15 | WPW10267863 | Slide Tray, Dispenser (stainless) (Replaces: W10267863) |
|
$ 69.73 | |||||
| 15 | W10267860 | Slide Tray, Dispenser (white) |
|
- | |||||
| 15 | W10267861 | Slide Tray, Dispenser (black) |
|
$ 70.85 | |||||
| 16 | W10296451 | Tube, Water |
|
$ 53.54 | |||||
| 17 | W11290115 | Led (Replaces: W10238083) |
|
$ 80.43 |
