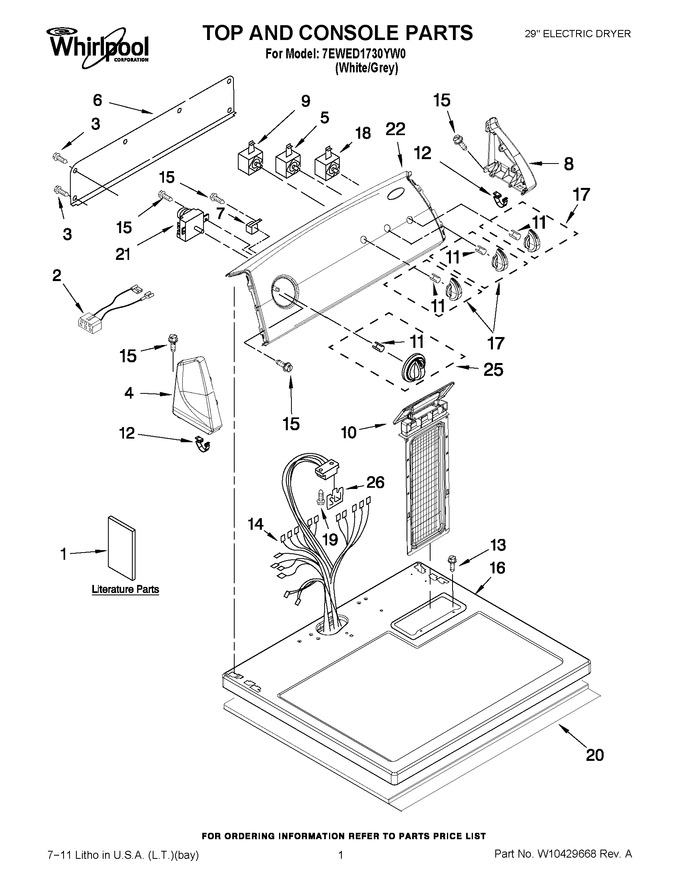

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8578889		Wiring Diagram		Appelez-nous	-
1	W10329764		Instruction Installation		Appelez-nous	-
1	W10422711		Use & Care Guide		Appelez-nous	-
2	W10113080		Wire, Jumper (buzzer On/off)		Appelez-nous	-
3	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.55
4	WP8565957		Cap, End (l.h.)   (Replaces: 8566035)				$ 64.76
5	WP3405156		Wrinkle Shield, Switch   (Replaces: 3405156)				$ 152.79
6	W10103406		Panel, Rear Console				$ 135.31
7	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
8	WP8565954		Cap, End (r.h.)   (Replaces: 8566032)				$ 65.84
9	WP8578354		Switch, Temperature   (Replaces: 8578354)			Immediately	$ 173.03
10	W11778253		Screen, Lint   (Replaces: 8557857)			Immediately	$ 54.63
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
12	WP8312709		Clip-console   (Replaces: 8312709)			Immediately	$ 16.35
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	W10071280		Harness, Wiring   (Replaces: 8576544)		Appelez-nous	-
15	WP90767		Screw, 8-18 X .375   (Replaces: 3348629)			Immediately	$ 8.25
16	WP8563663		Top   (Replaces: 8559800)			Immediately	$ 349.25
17	W10034380		Knob, Control				$ 25.06
18	WPW10117655		Switch, Push-to-start   (Replaces: W10117655)			Immediately	$ 85.60
19	WP681414		Screw, 10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
20	W10123956		Dampening Panel		Appelez-nous	-
21	WP8566184		Timer, 60 Hz.   (Replaces: 8566184)			Immediately	$ 277.09
22	W10410374		Control Panel & Bracket Assembly		Appelez-nous	-
25	W10034750		Timmer Knob Assembly				$ 28.27
26	WPW10476828		Control, Electronic   (Replaces: 8558178)			Immediately	$ 329.93
