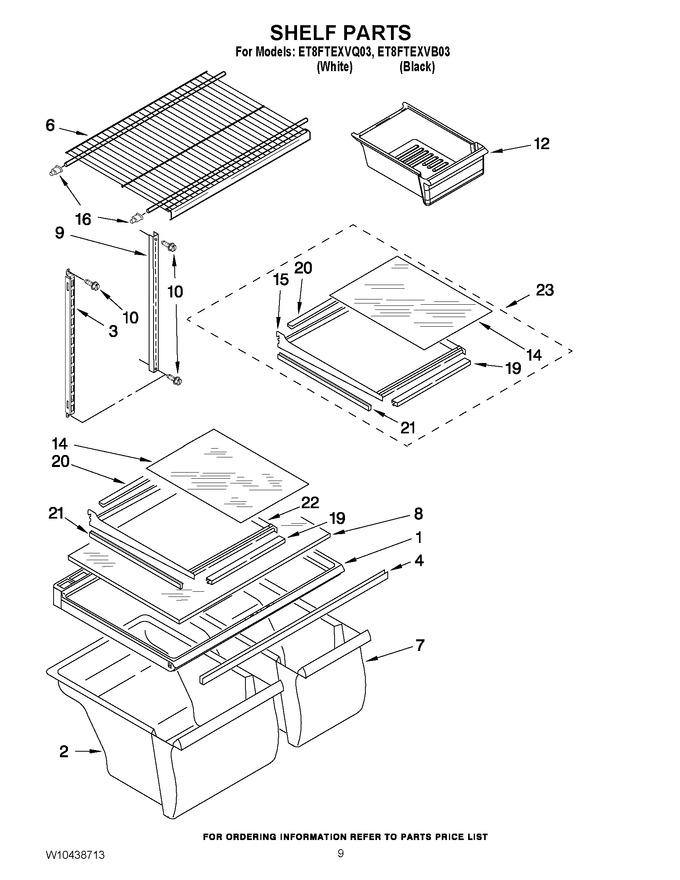

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2314548		Cover, Crisper   (Replaces: 2314497)				$ 247.46
2	W10854037		Crisper Pan (13-inch)   (Replaces: 2218124)			Immediately	$ 170.66
3	2300520		Ladder, Center Shelf				$ 75.36
4	WP2172748		Support, Crisper Cover   (Replaces: 2314477)				$ 97.22
6	2189453		Shelf		Appelez-nous	-
7	W10856580		Crisper Pan (10-inch)   (Replaces: 2218123)			Immediately	$ 168.60
8	WP2169921		Glass, Crisper Cover   (Replaces: 2221693)				$ 246.60
9	2210522		Ladder, Side Shelf (2)				$ 44.10
10	WP489478		Screw   (Replaces: 489478)				$ 7.75
12	WP2218127K		Meat Pan   (Replaces: 2218127K)				$ 139.81
14	2200985		Glass, Half Shelf		Appelez-nous	-
15	2201105		Shelf Cantilever- Meat Pan Spillguard				$ 78.45
16	WPW10130299		Cup, Shelf Mtg.   (Replaces: 2163762)			Immediately	$ 14.00
19	2188684		Trim-shelf-front				$ 11.33
20	WP2188689		Trim-shelf-rear   (Replaces: 2188686)				$ 115.76
21	2188711		Trim-shelf-side		Appelez-nous	-
22	2201101E		Shelf-cantilever		Appelez-nous	-
23	2201111		Shelf Assembly- Meat Pan				$ 168.49
