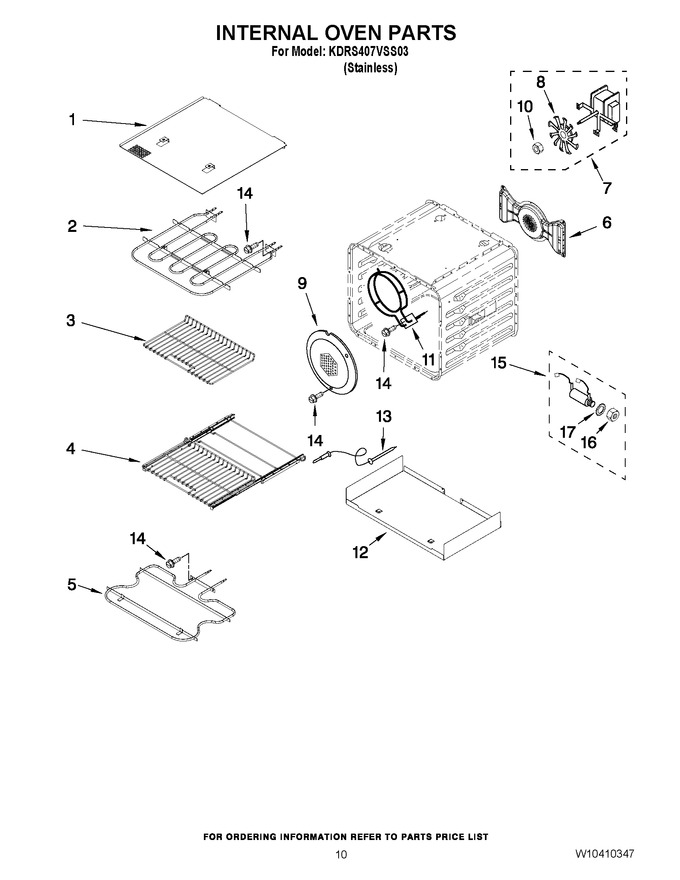

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10160856 | Shield, Element Broil |
|
- | |||||
| 2 | W10115994 | Element, Broil |
|
$ 299.72 | |||||
| 3 | W11550107 | Urso, Wire Rack (Replaces: W10284950) |
|
$ 117.11 | |||||
| 4 | W11186364 | Rack, Oven Sliding (Replaces: W10208155) |
|
$ 318.55 | |||||
| 5 | W11783663 | Element, Hidden Bake (Replaces: W10115995) |
|
Immediately | $ 156.37 | ||||
| 6 | W10860133 | Baffle, Convection (Replaces: W10160868) |
|
$ 256.58 | |||||
| 7 | W10794022 | Motor, Convection (Replaces: W10116228) |
|
Immediately | $ 214.63 | ||||
| 8 | W10758272 | Blade, Fan (Replaces: W10116351) |
|
Immediately | $ 7.91 | ||||
| 9 | W10261523 | Cover, Fan |
|
$ 77.85 | |||||
| 10 | WPW10116349 | Nut (Replaces: W10116349) |
|
$ 21.78 | |||||
| 11 | W11643125 | Element, Convection (Replaces: 9762242) |
|
Immediately | $ 126.84 | ||||
| 12 | W10160845 | Tray, Hidden Bake |
|
- | |||||
| 13 | WP9755542 | Probe, Temperature (Replaces: 9755542) |
|
Immediately | $ 92.12 | ||||
| 14 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 8.16 | |||||
| 15 | 8186589 | Jack, Meat Probe (Replaces: 9755543) |
|
Immediately | $ 108.02 | ||||
| 16 | WP9755546 | Nut (Replaces: 9755546) |
|
$ 7.30 | |||||
| 17 | WP9755547 | Washer (Replaces: 9755547) |
|
$ 6.41 |
