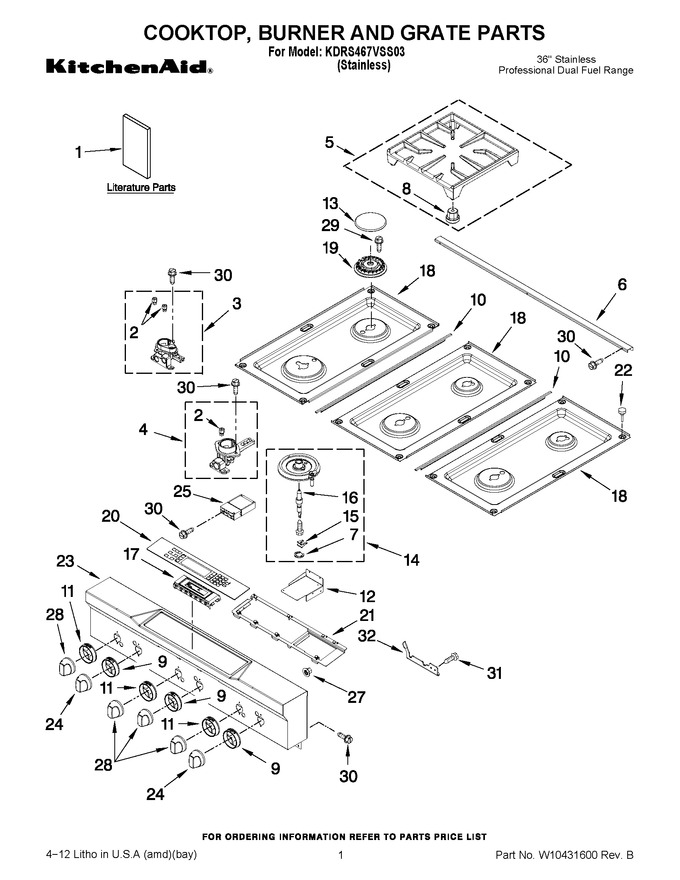

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches


03 - Chassis Parts


04 - Top Venting Parts


05 - Oven Parts


06 - Oven Door Parts


07 - Internal Oven Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10399386		Use & Care Guide		Appelez-nous	-
1	9762761		Safer Cooking Tips (english		Appelez-nous	-
1	W10075750		Safer Cooking Tips (instr, Installer)		Appelez-nous	-
1	W10394571		Installation Instructions		Appelez-nous	-
1	W10065852		Safer Cooking Tips (french)		Appelez-nous	-
1	W10403296		Tech Sheet (french)		Appelez-nous	-
1	W10403294		Tech Sheet (english)		Appelez-nous	-
2	W10819958		Orifice (lf,rf (outer))   (Replaces: W10256132)				$ 97.77
2	W10340424		Orifice (lf,rf (inner))				$ 93.67
2	W11051480		Orifice (lr,ctr Frt, Rr)   (Replaces: W10364221)				$ 90.69
2	WPW10256128		Orifice (ctr Rear)   (Replaces: W10256128)				$ 100.45
3	WPW10364555		Orifice Holder Lf,rf   (Replaces: W10364555)				$ 113.42
4	W10282659		Orifice Holder (ctr Rear)				$ 40.50
4	WPW10364556		Orifice Holder (lr,ctr Frt, Rr)   (Replaces: W10364556)				$ 102.39
5	WPW10115928		Grate, Burner   (Replaces: W10115928)				$ 201.41
6	W10269217		Trim, Island				$ 308.49
7	W10160825		Clip, Electrode				$ 52.85
8	W10185266		Rubber, Foot   (Replaces: 8286695)			Immediately	$ 15.47
9	W10261510		Bezel, Front				$ 55.11
10	W10271524		T-strip				$ 212.34
11	W10261512		Bezel, Rear		Appelez-nous	-
12	W10367052		Bracket, Spark Module		Appelez-nous	-
13	WPW10256032		Cap, Burner (rr,ctr Frt, Lr)   (Replaces: W10256032)			Immediately	$ 88.38
13	WPW10364463		Cap, Burner (ctr Rear)   (Replaces: W10364463)			Immediately	$ 55.85
13	WPW10256034		Cap, Burner (rf,lf)   (Replaces: W10256034)				$ 138.19
14	W10237868		Base, Burner (ctr Rear)		Appelez-nous	-
14	WPW10320937		Base, Burner (rf,lf)   (Replaces: W10320937)				$ 157.22
14	W10189082		Base, Burner (rr,cf,lr)		Appelez-nous	-
15	8286863		Spring, Electrode (ctr Rear)				$ 76.92
15	W10256046		Spring, Electrode (lf,lr,rf,rr,cf)				$ 11.56
16	W10854967		Electrode (ctr Rear)   (Replaces: 8286725)			Immediately	$ 48.38
16	W10833887		Electrode (lf,lr,rf,rr,cf)   (Replaces: W10256047)			Immediately	$ 31.77
17	WPW10298119		Module, User Interface   (Replaces: W10298119)				$ 510.59
18	W10352966		Cooktop (middle)				$ 320.43
18	W10352967		Cooktop (right)				$ 337.26
18	W10352969		Cooktop (left)				$ 335.75
19	WPW10282515		Burner Head (ctr Rear)   (Replaces: W10282515)			Immediately	$ 149.87
19	W11106799		Burner Head (rf,lf)   (Replaces: W10495853)			Immediately	$ 89.01
19	WPW10256027		Burner Head (rr,cf,lr)   (Replaces: W10256027)			Immediately	$ 101.02
20	WPW10116104		Keypad   (Replaces: W10116104)			Immediately	$ 372.51
21	W10250476		Bracket, User Interface		Appelez-nous	-
22	4448520		Bumper				$ 22.25
23	WPW10115888		Panel, Control   (Replaces: W10115888)				$ 568.08
24	W11244176		Knob, Control Rf,lf   (Replaces: W10250389)				$ 78.37
25	W11601369		Module, Spark   (Replaces: W10116108)			Immediately	$ 67.35
27	7103P166-60		Nut, Hex				$ 18.56
28	W11177673		Knob, Control   (Replaces: W10250391)				$ 90.55
29	WPW10373929		Screw, Burner Top   (Replaces: W10373929)				$ 43.65
30	WP3177991		Screw   (Replaces: 3177991)			Immediately	$ 7.55
31	WP74003976		Screw   (Replaces: 7101P500-60)				$ 7.55
32	W10130760		Bracket,console (left)				$ 75.94
32	W10130759		Bracket,console (right)				$ 75.94
