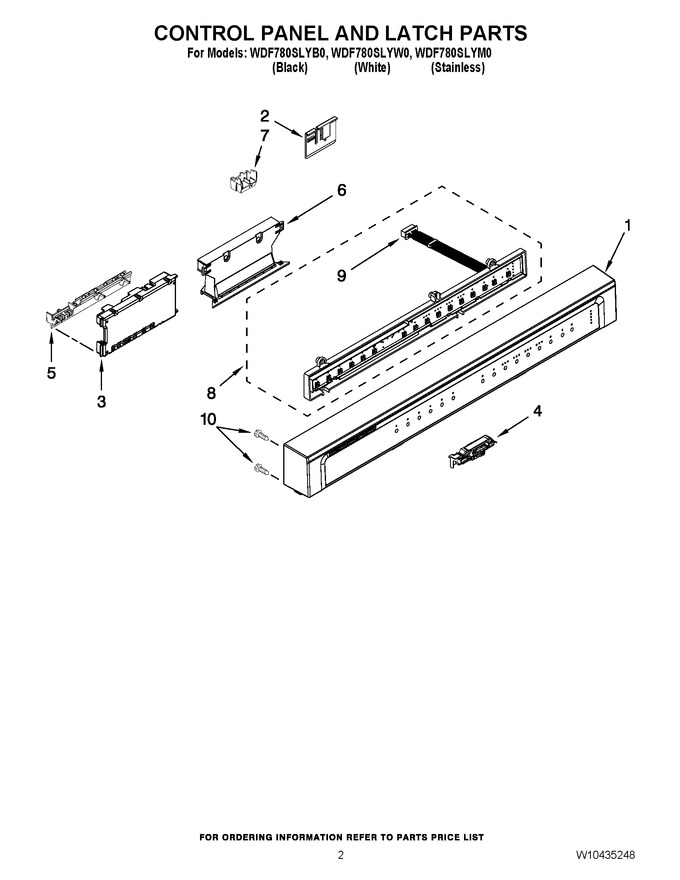

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10350413 | Console Asm. (includes Active Overlay & Insert) (black) (Replaces: W10350413) |
|
$ 317.95 | |||||
| 1 | WPW10350414 | Console Asm. (includes Active Overlay & Insert) (white) (Replaces: W10350414) |
|
$ 384.17 | |||||
| 1 | WPW10350415 | Console Asm. (includes Active Overlay & Insert) (grey) (Replaces: W10350415) |
|
$ 388.86 | |||||
| 2 | W11256107 | Clip, Control (Replaces: W10195237) |
|
$ 23.27 | |||||
| 3 | W10479764 | Control, Electronic (Replaces: W10461369) |
|
$ 283.77 | |||||
| 4 | W10619006 | Switch And Latch Assembly (Replaces: W10380262) |
|
Immediately | $ 39.09 | ||||
| 5 | WPW10194937 | Brace, Connector (Replaces: W10194937) |
|
$ 30.56 | |||||
| 6 | W10358150 | Handle (white) |
|
$ 58.72 | |||||
| 6 | WPW10321839 | Handle (black) (Replaces: W10321839) |
|
Immediately | $ 149.02 | ||||
| 7 | W10783730 | Box, Connector (Replaces: W10401190) |
|
$ 31.41 | |||||
| 8 | WPW10440702 | Housing, User Interface (Replaces: W10440702) |
|
$ 267.78 | |||||
| 9 | W10327239 | Wire, Jumper |
|
- | |||||
| 10 | WPW10177098 | Screw (Replaces: W10177098) |
|
Immediately | $ 8.02 |
