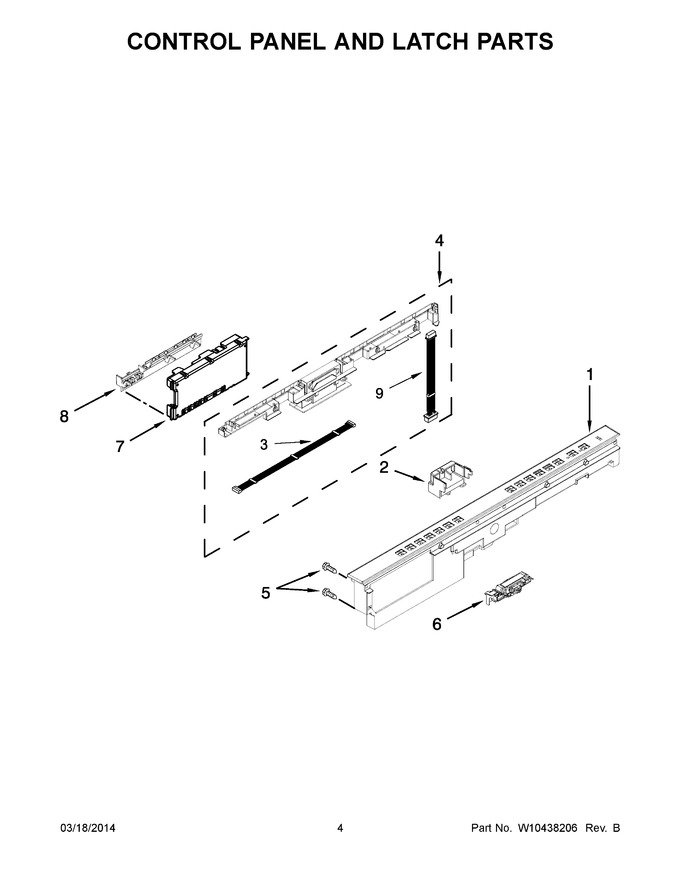

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10350249		Console Assembly (includes Insert) (black)		Appelez-nous	-
1	W10350250		Console Assembly (includes Insert) (white)		Appelez-nous	-
1	W10350251		Console Assembly (includes Insert) (silver)		Appelez-nous	-
2	W10783730		Box, Connector   (Replaces: W10401190)				$ 31.41
3	W10347251		Jumper, 10-wire				$ 11.62
4	W10350261		Housing, User Interface				$ 227.99
5	WPW10177098		Screw   (Replaces: W10177098)			Immediately	$ 8.02
6	W10619006		Switch And Latch Assembly   (Replaces: W10195093)			Immediately	$ 39.09
7	W10482988		Control Electronic   (Replaces: W10461371)				$ 283.77
8	WPW10194937		Brace, Connector   (Replaces: W10194937)				$ 30.56
9	W10300781		Jumper, 16-wire				$ 33.20

    View Diagram in Separate Window       Print Part List
