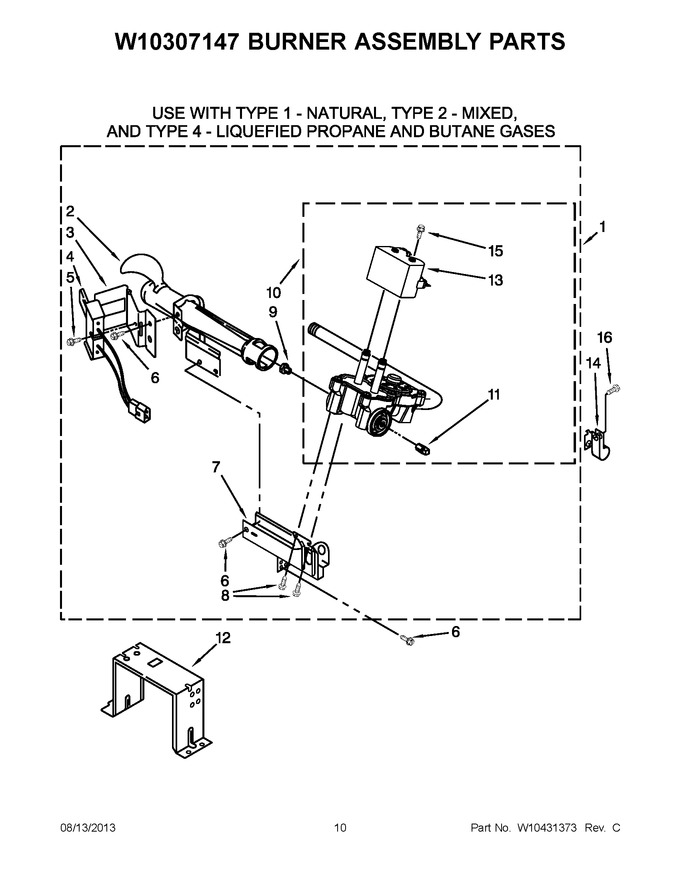

05 - W10307147 Burner Assembly Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 280119 | Burner Assembly (Replaces: W10307147) |
|
$ 416.13 | |||||
| 2 | WP693140 | Tube, Burner (Replaces: 688617) |
|
$ 188.87 | |||||
| 3 | WP694298 | Bracket, Ignitor (Replaces: 694298) |
|
$ 27.22 | |||||
| 4 | 279311 | Ignitor (Replaces: 686590) |
|
Immediately | $ 78.90 | ||||
| 5 | WPW10366705 | Screw (Replaces: 3393909) |
|
$ 7.88 | |||||
| 6 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 7 | 3389871 | Base, Burner |
|
$ 83.25 | |||||
| 8 | WP693995 | Screw (Replaces: 3387057) |
|
Immediately | $ 7.55 | ||||
| 9 | WP15418 | Type 1 (natural) (Replaces: 15418) |
|
$ 37.32 | |||||
| 10 | WPW10118347 | Valve, Gas 60 Hz. (complete) (Replaces: W10175144) |
|
Immediately | $ 337.63 | ||||
| 11 | W10295523 | Pipe Plug |
|
- | |||||
| 12 | 3389888 | Bracket, Support (Replaces: 3389889) |
|
- | |||||
| 13 | WPW10328463 | Coil (60 Hz) (Replaces: W10328463) |
|
Immediately | $ 79.02 | ||||
| 14 | 3978776 | Bracket, Gas Pipe |
|
- | |||||
| 15 | 326049536 | Screw |
|
- | |||||
| 16 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| NI | W11581317 | Conversion Kit (type 1 And 2) To Type (4) L.p.g. (Replaces: W10307153) |
|
Immediately | $ 93.17 | ||||
| NI | N/P | Following Parts Not Illustrated |
|
- |
